Package Included

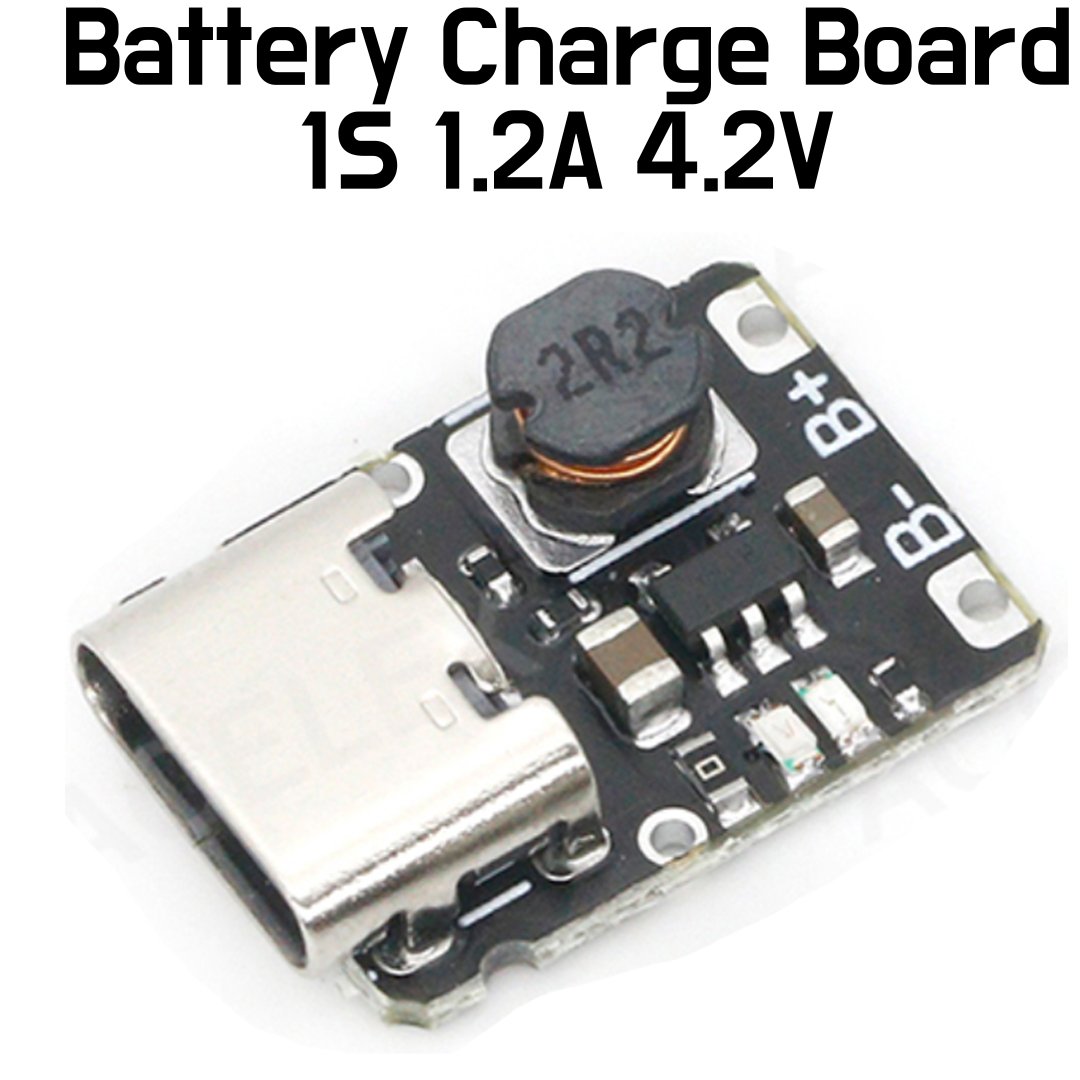

- 1pcs x Type C 5V 18650 charge discharge integrated module power board with protection

For more Lithium Battery Charger, search with "epartners BMS".

Description:

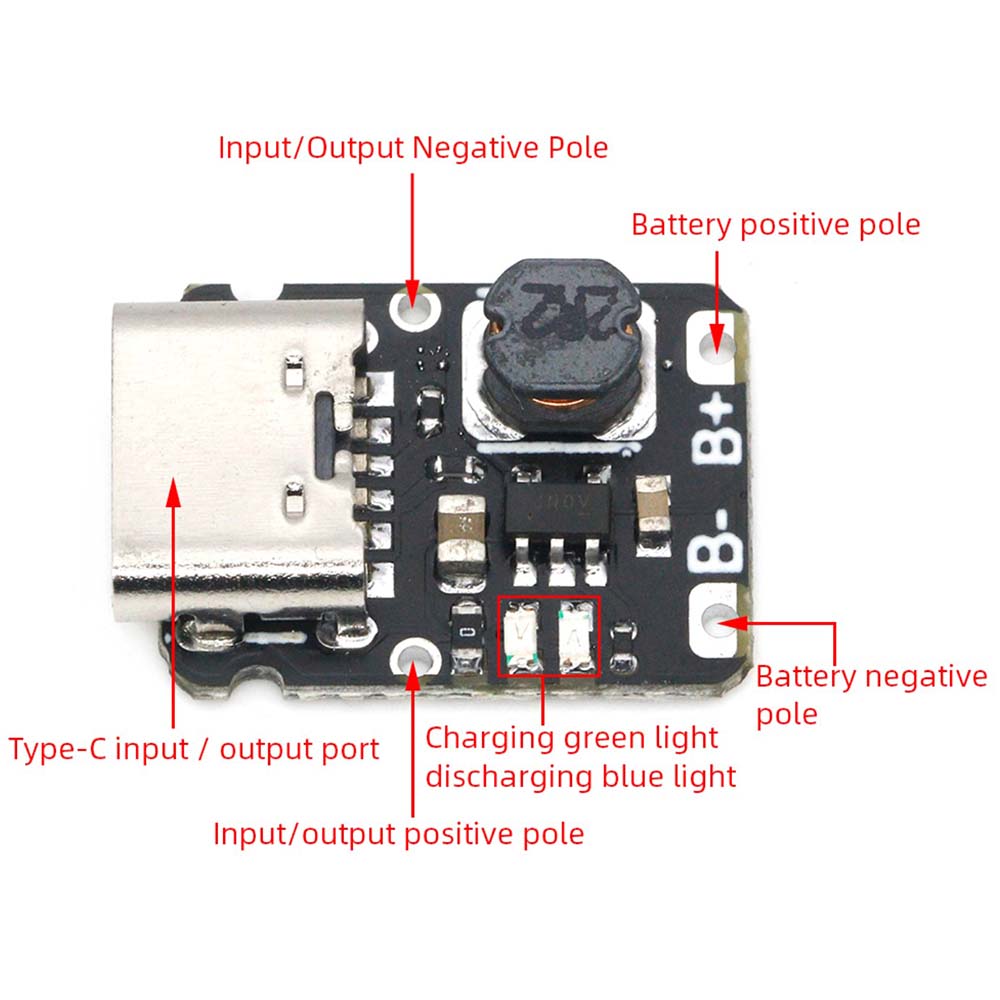

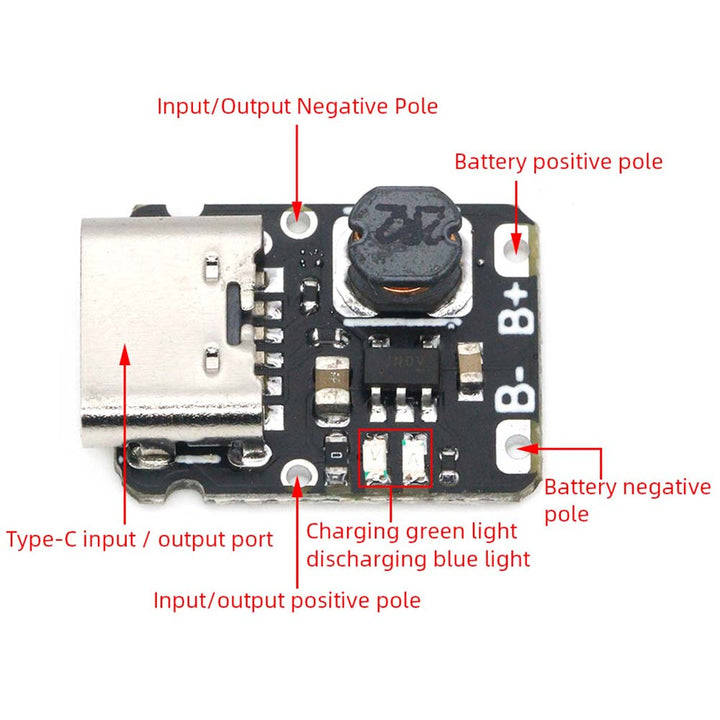

- The module can be used by connecting the positive and negative electrodes of 3.7V lithium battery. The module itself has overshoot and over discharge protection
- When the charging current drops to 100mA after reaching the final floating charge voltage, the charging cycle will be automatically terminated.
- The maximum charging current is 1.2A. When the power supply is guaranteed, it can be stable by more than 1.1A when used properly.
- When the battery voltage is lower than 2.9V, the battery will be precharged with a current of 200mA.
- With protection board, overvoltage protection, over discharge protection, overcurrent protection. Over discharge protection value: 2.9V.
- Connect the power supply to activate the protection board for the first time.

CAUTION:
- Do not connect the battery in reverse, connect the reverse burning plate.
- Connect the charging head before connecting the battery, and test whether the charging lamp of the module displays normally.
