Package Included

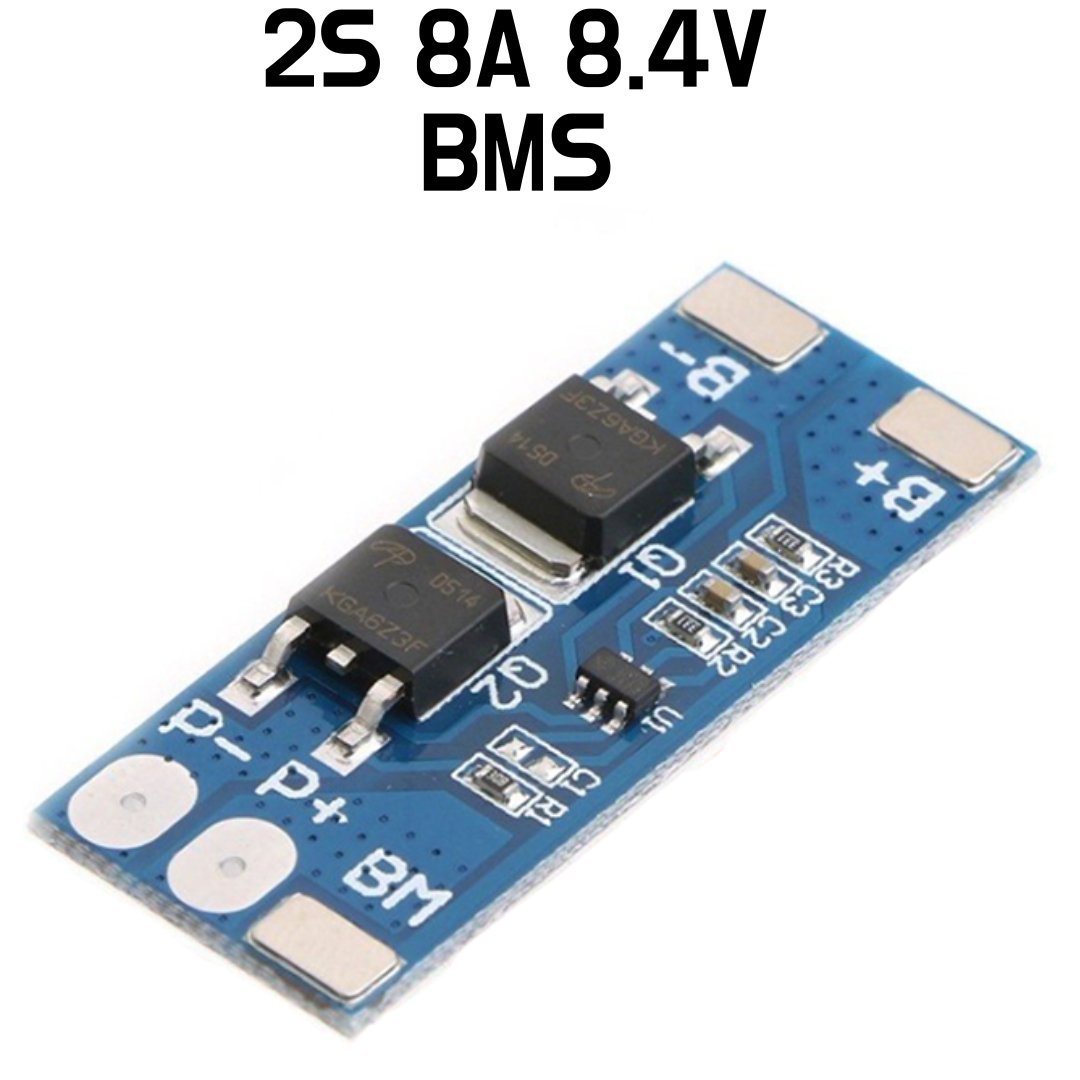

- 1 x 2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board

Description

1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.

- Over charge voltage:4.25-4.35v±0.05v
- Over dishcarge voltage: 2.5-3.0v±0.05v
- Max continuous current:8A
- Max peak current:15A
- Working temperature:-40---+50
- Storage Temperature:-40-- +80
- Small current:less than 3uA
- Life cycle :more than 50000hours
- Resistance:Less than 300mΩ
- Short cut protection :Protectable,charge can repair

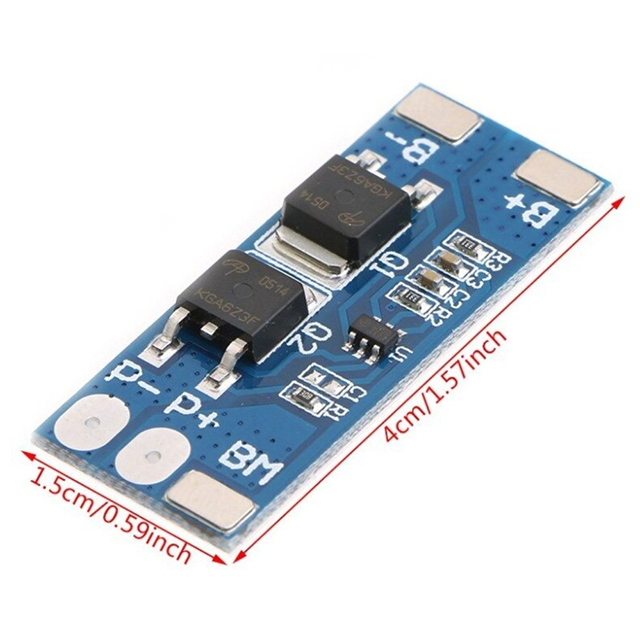

- Size: 41*16*3.5mm

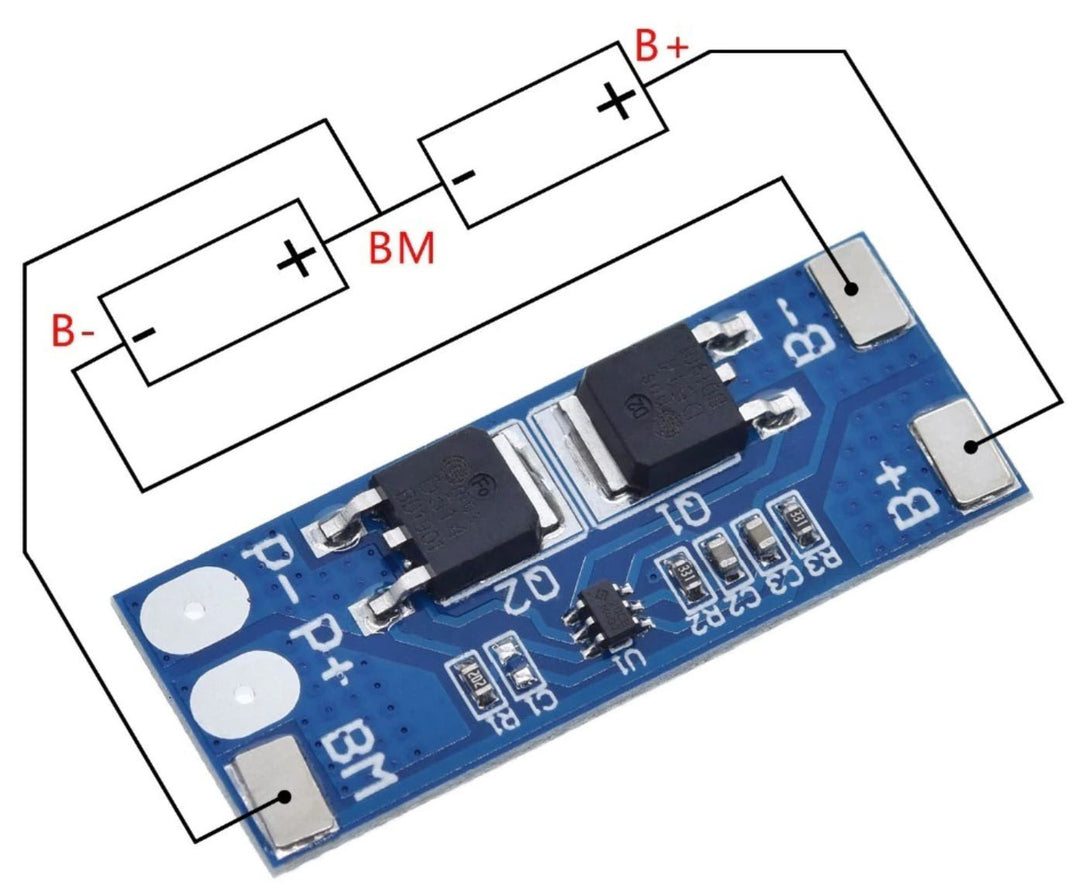

B+ Connect battery positive;
B- Connect battery negative;
MB Connect the point between battery1 & battery 2;
P+ Charge/discharge positive;
P- Charge/discharge negative

Please be sure to read the following precautions

- https://bit.ly/Precausions-BMS

Attention:

Do not mix the good battery and poor battery to use.
Please, buyers, know the professional knowledge of this module before buying
