Package Included

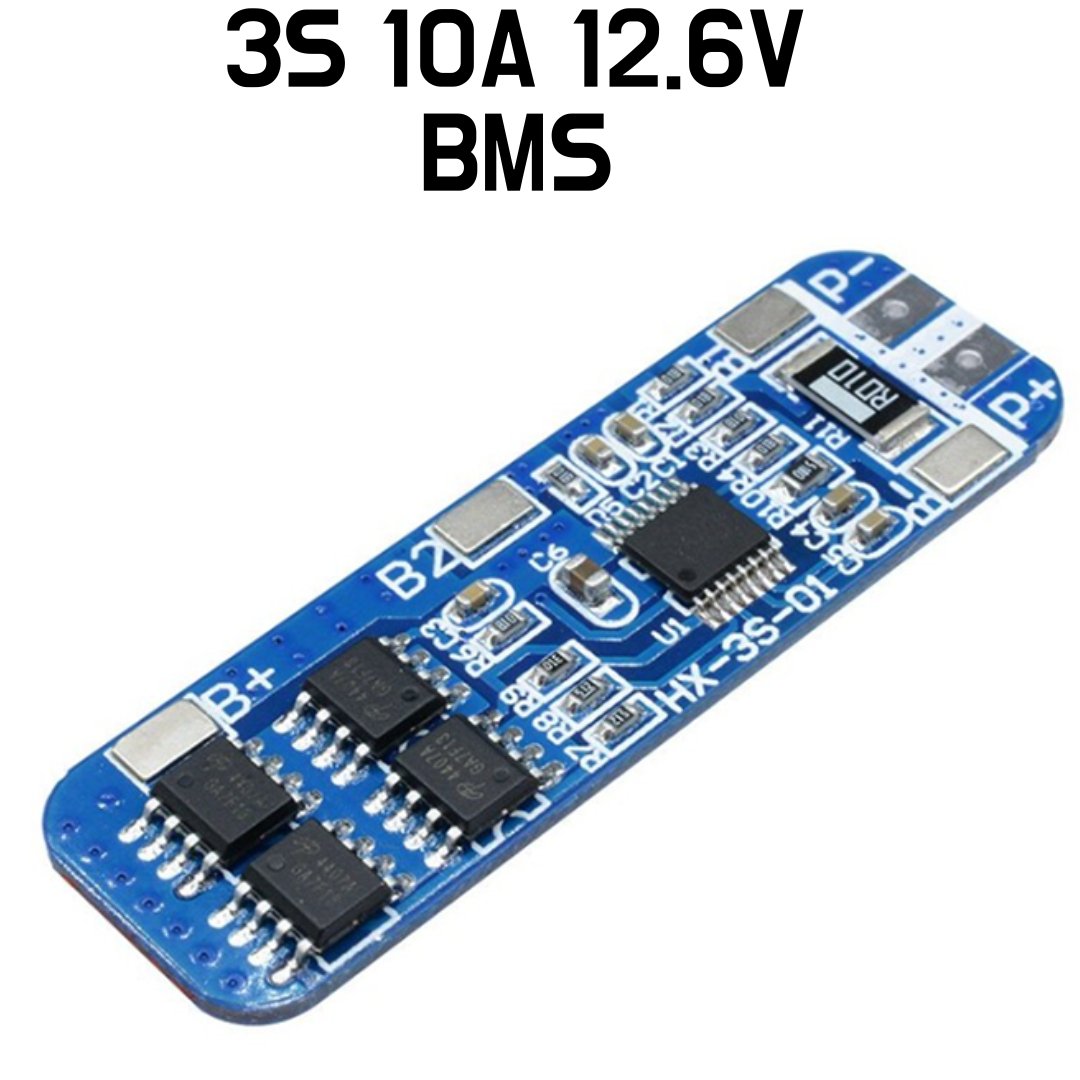

- 1pcs x 3S 10A 12V Lithium Battery Charger Protection Board Module for 3pcs 18650 Li-ion Battery Cell Charging BMS 10.8V 11.1V 12.6V
Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS
Description:
- Size: approx.50x16x1mm
- Maximum discharge current: 10A
- Overcharge detection voltage: 4.25-4.35V±0.05V
- Over-discharge detection voltage: 2.3-3.0V±0.05V
- Maximum working current: 5A-8A
- Transient current: 9A-10A
- Operating temperature: -40~50℃
- Storage temperature: -40~80℃
- Quiescent current: <6uA
- Internal resistance: <60mΩ
- Service life: >30,000 hours
Short circuit protection.
- Overcharge protection.
- Overcurrent protection.
- Can be applied to various 3.7V lithium core.
Suitable for:
10.8V (Rated voltage of polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (Lithium battery full charge voltage)
Reference
- https://www.youtube.com/watch?v=kuEgZELszLk
Please Note:

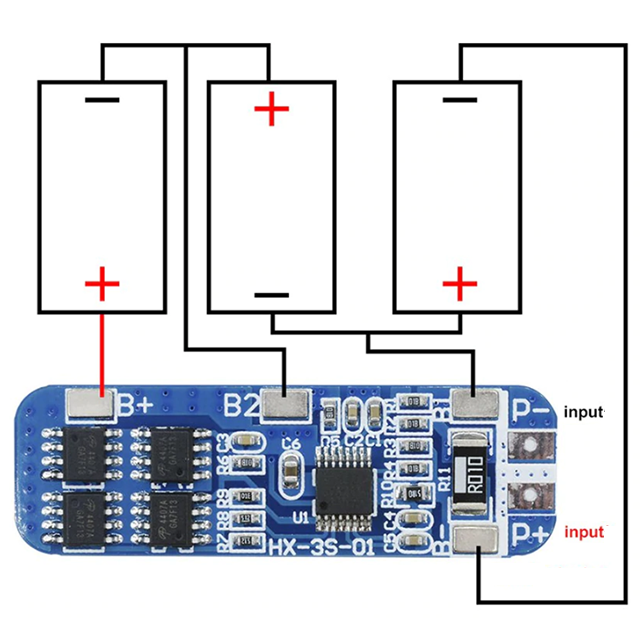

When using it for the first time, you have to wake up the board through input for a few seconds.
Otherwise, no output voltage detected.
#ST4001-1 # BMS Battery Management System
Standard: $5.99
Rural: $8.99
