Package Included
- 1pcs x

For more Lithium Battery Charger, search with "epartners BMS".

Description:
- Charging voltage: DC 4.5V-5.5V (recommended DC 5V)
- Charging current : 0-2.1A
- Charging quiescent current: 100uA
- Full voltage: 4.2V+-1%.
- Discharge current: 0-3.5A;
- Discharge quiescent current: 50uA
- Discharge efficiency: 96% maximum
- Output voltage: 5V
- Output current: 0-2.1A;
- Ambient temperature: -20° to +85°

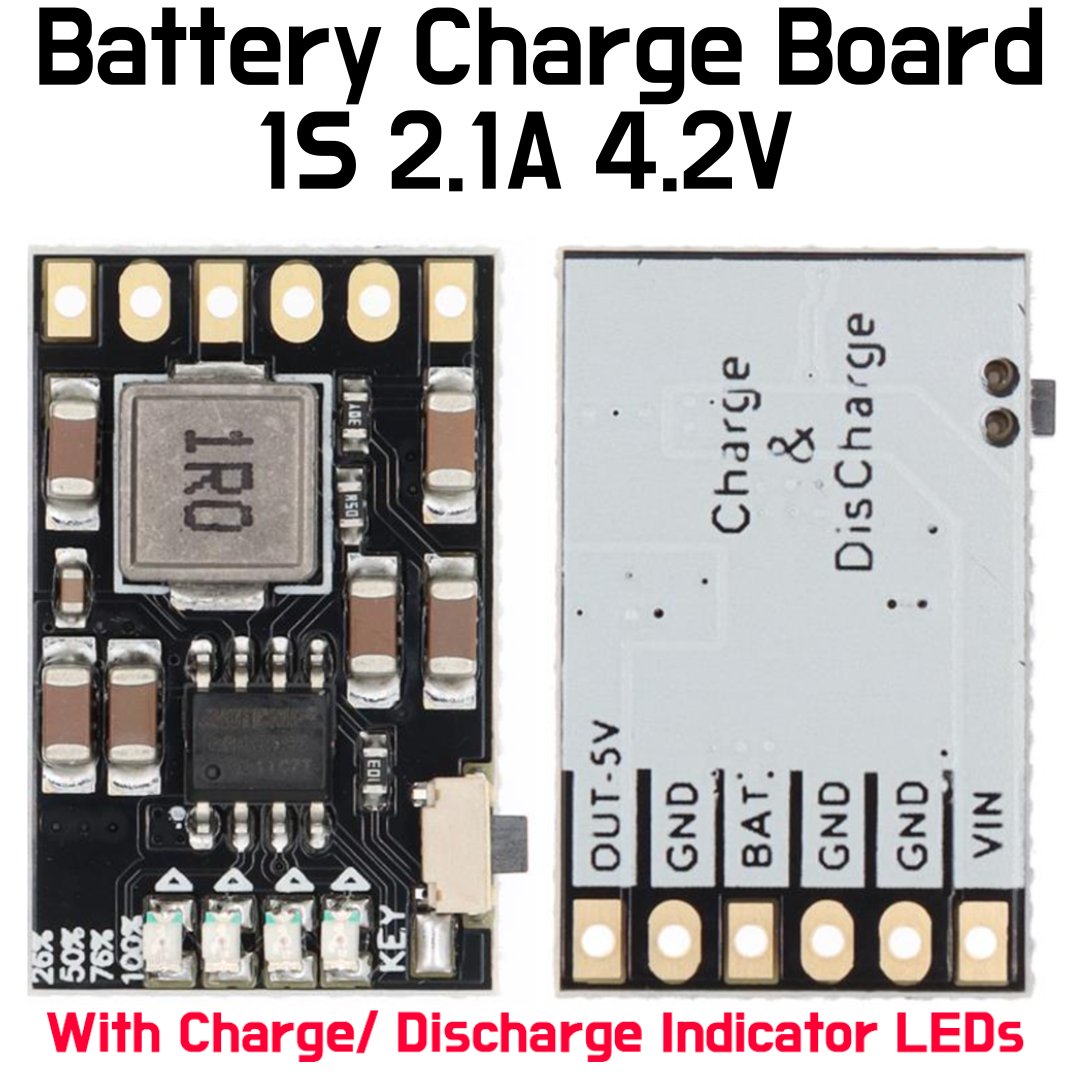

Module with lithium battery protection function (for lithium battery without protection, with protection board)
* Overcurrent protection (OCP)
* Overvoltage protection (OVP)
* Short circuit protection (SCP)
* Over temperature protection (OTP)
* Charge and discharge power level 4 interval indication

Please refer to the pictures for more information.

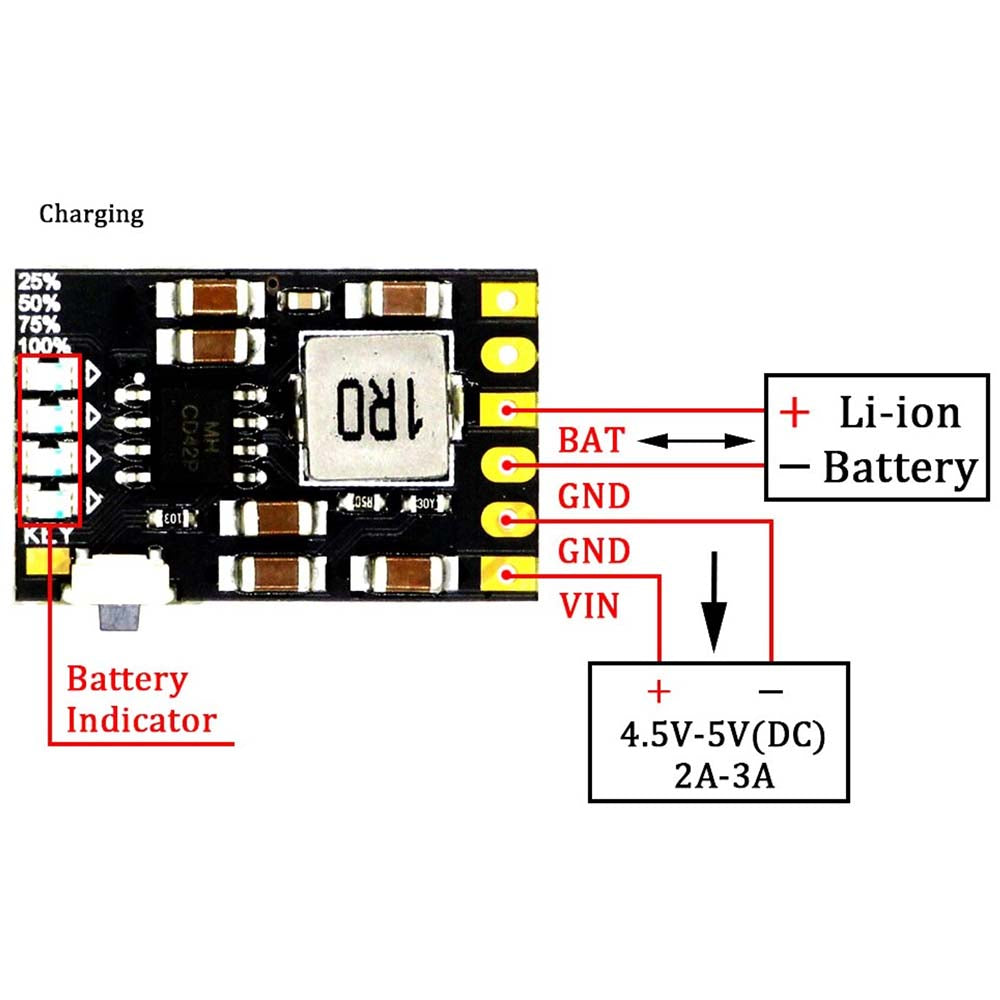

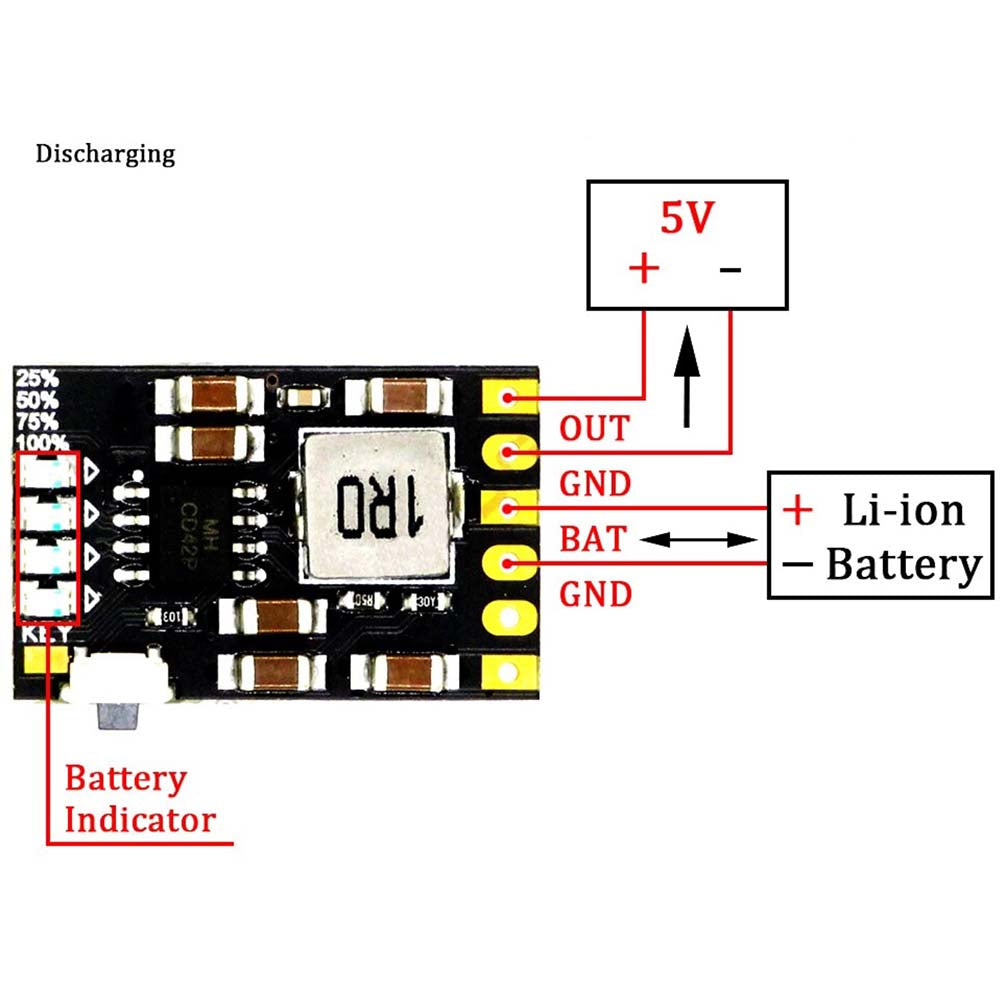

- Wirign Diagram

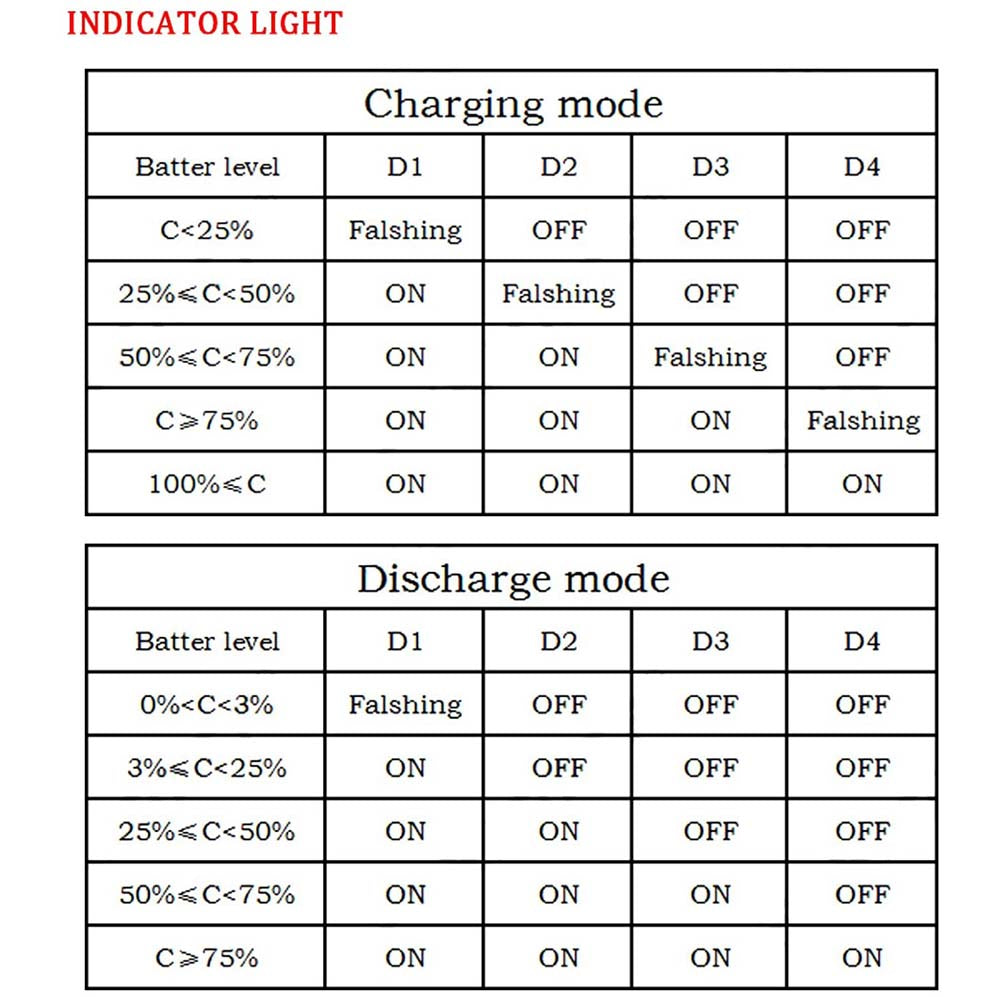

- Indicator light

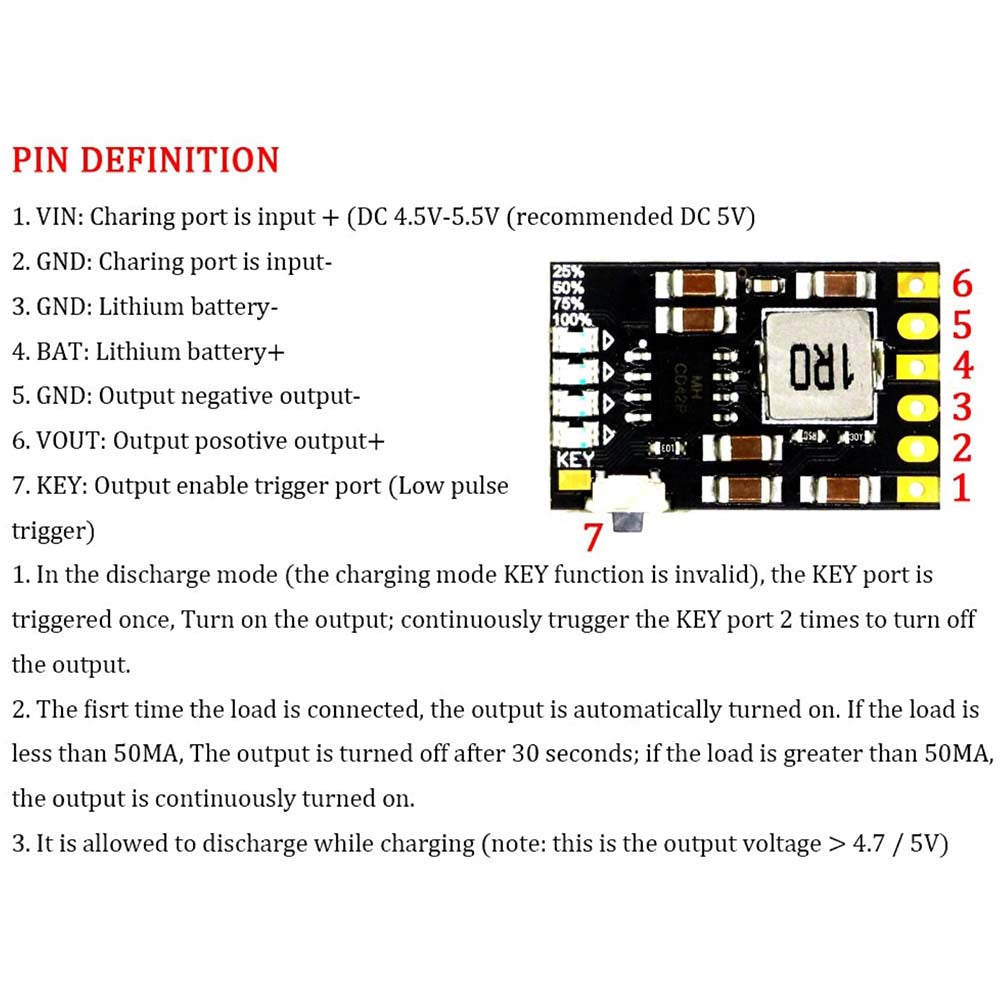

- Pin definition
