Package Included

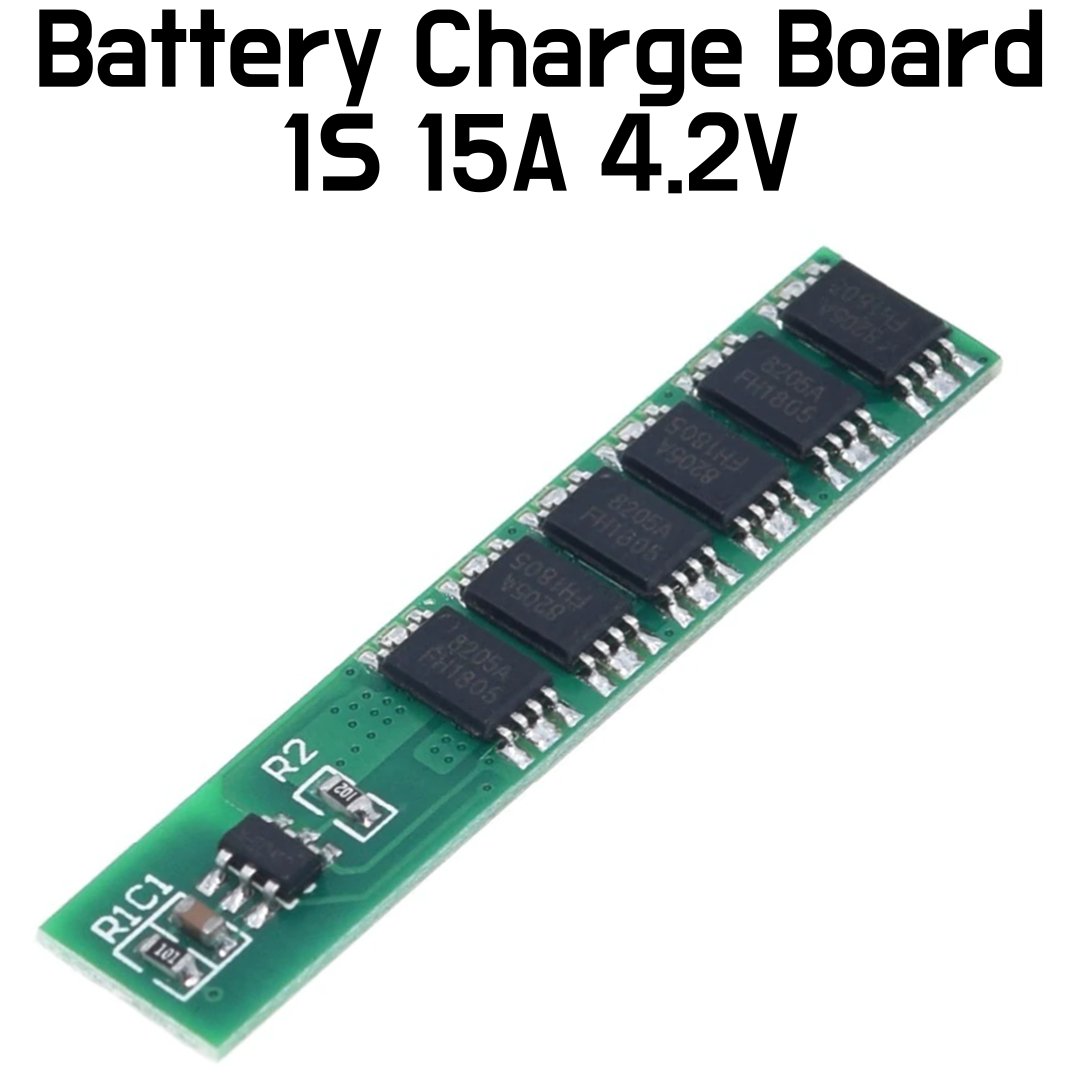

- 1 x 1S 15A 4.2V Li-ion 6MOS BMS PCM Battery Protection Board PCM for 18650 Lithium Lion Battery
Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS
Description:
- Overcharge detection voltage: 4.25 + 0.05V
- Overcharge disconnection voltage: 4.23 + 0.05V
- Overdischarge detection voltage: 2.45 + 0.1v
- Maximum continuous current: 12A
- Overcurrent detection current: 15A
- Charging voltage: 4.2v
Main functions:
- The overcharge protection, discharge protection, short circuit protection, over current protection.

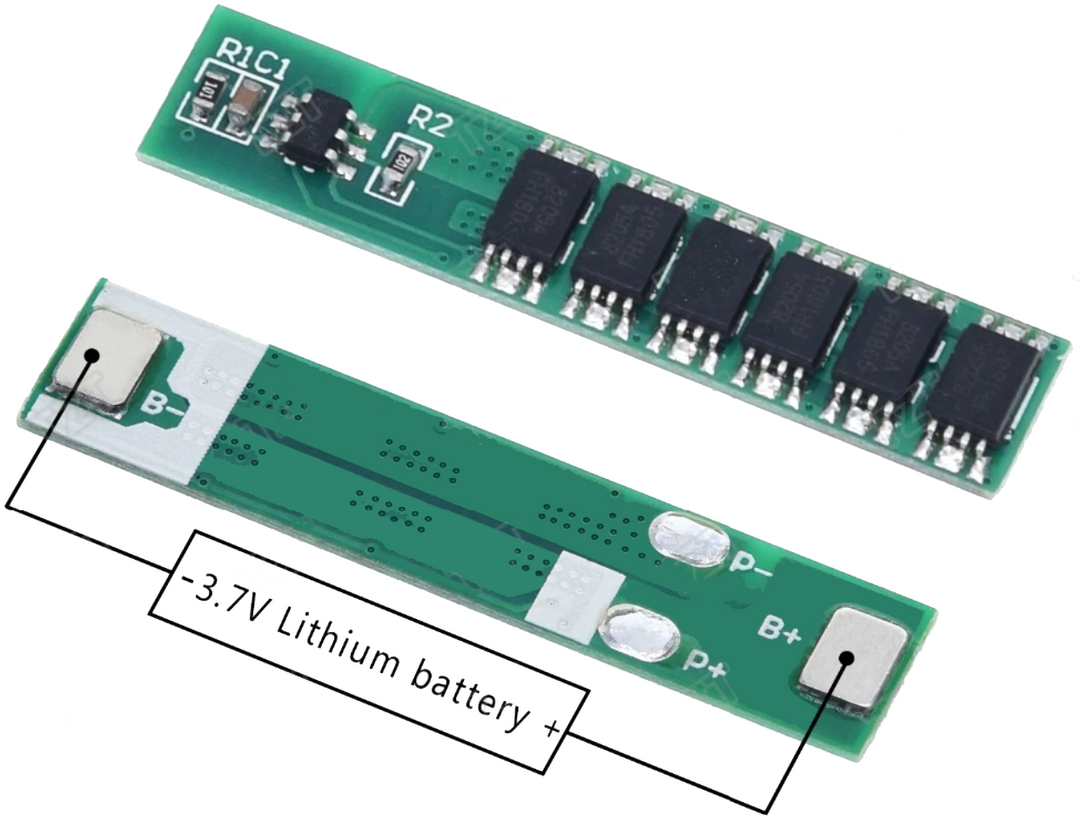

Connection details:
- B+ connect the positive electrode of the battery.
- B- connect the battery cathode.
- P+ is the input positive pole of battery output
- P- is the output-input cathode of the battery pack
