Package Included

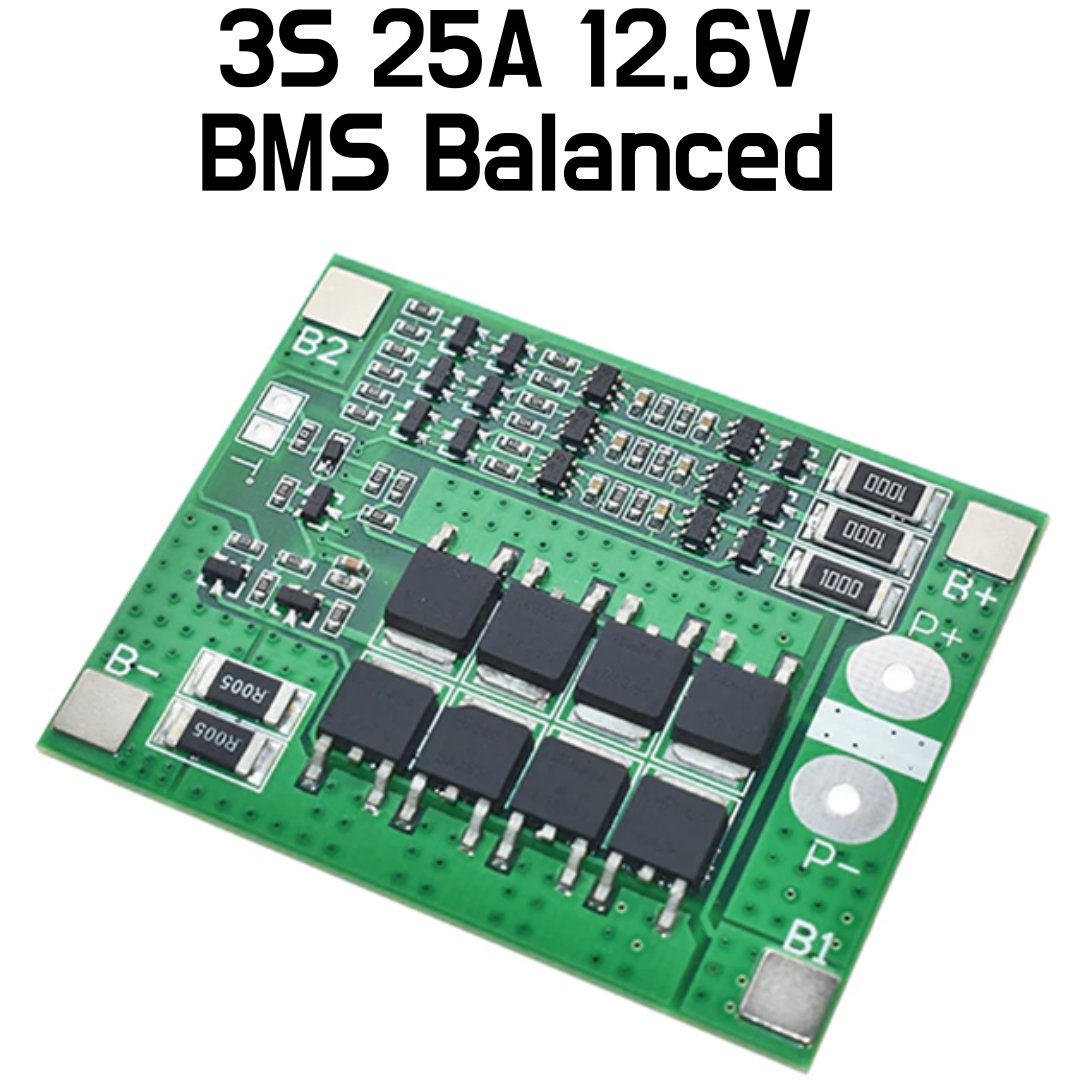

- 1pcs x 3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance

Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.

- Over Charge voltage:4.25-4.35v±0.05v
- Over Discharge voltage: 2.3-3.0v±0.05v
- Max Working current:25A
- Max peak current:35-40A
- Working temperature:-40---+50
- Storage Temperature:-40-- +80
- Small current:50uA
- Life cycle:more then 30000 hours
- Resistance:Less than 100mΩ
- Short Cut:Protectable,Charge can repair

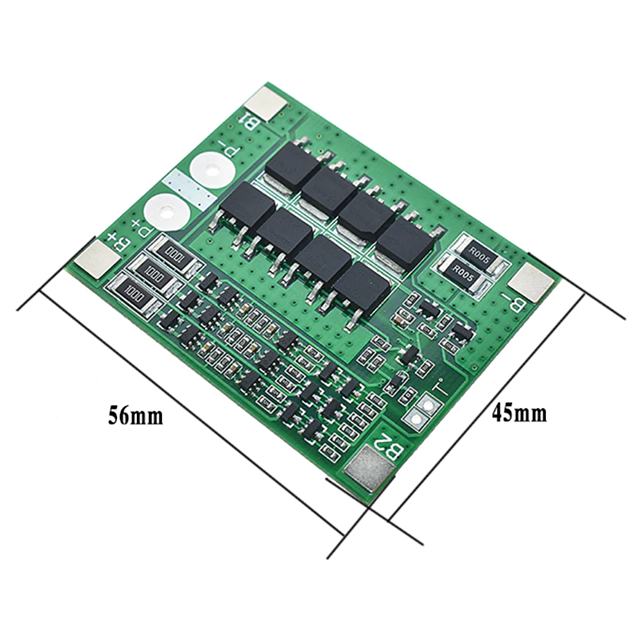

- Size:56*45*4.0mm

Please read the below link for more information
- http://bit.ly/BMS-Instruction
