Package Included
- 1pcs x TP5100 lithium battery charge management compatible 2A rechargeable
Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS
Description:

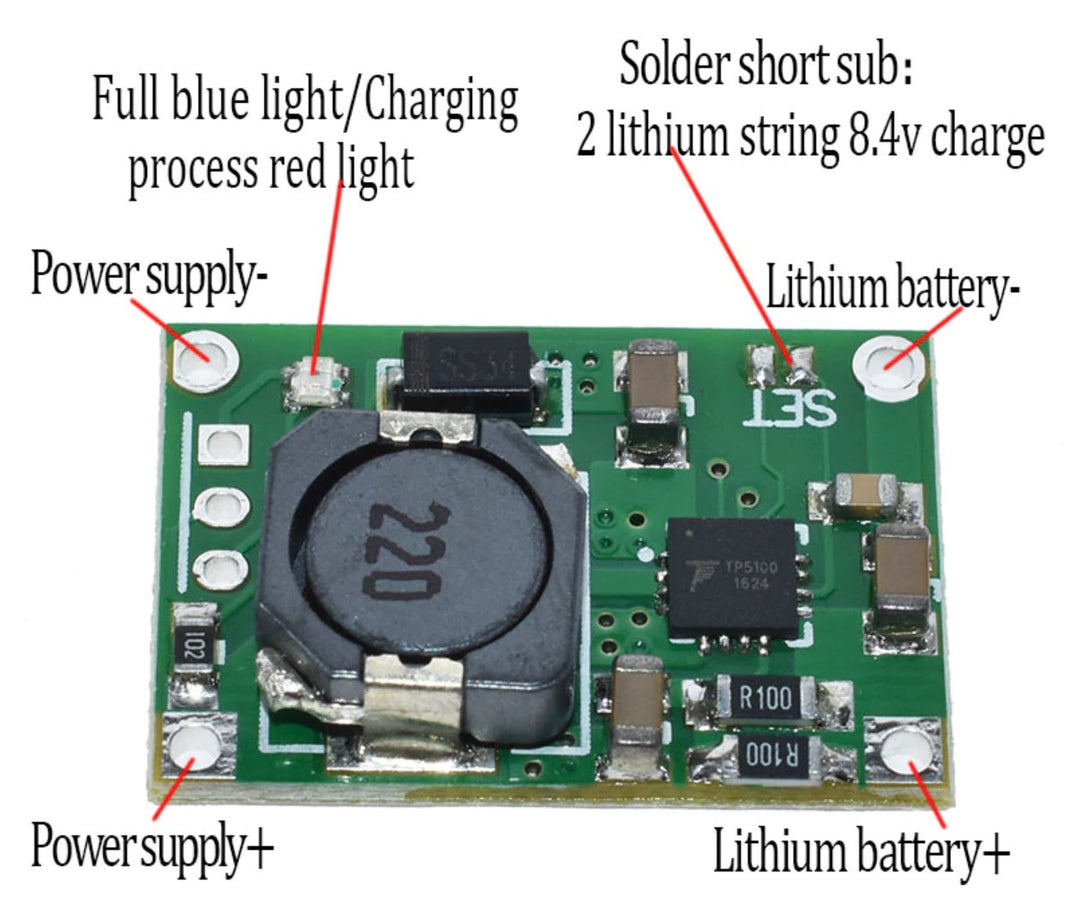

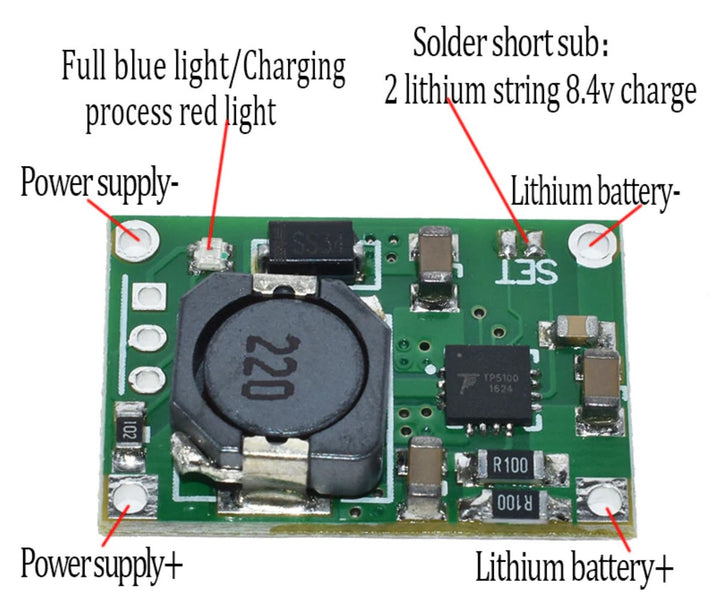

- Double 8.4v / 4.2v lithium rechargeable single

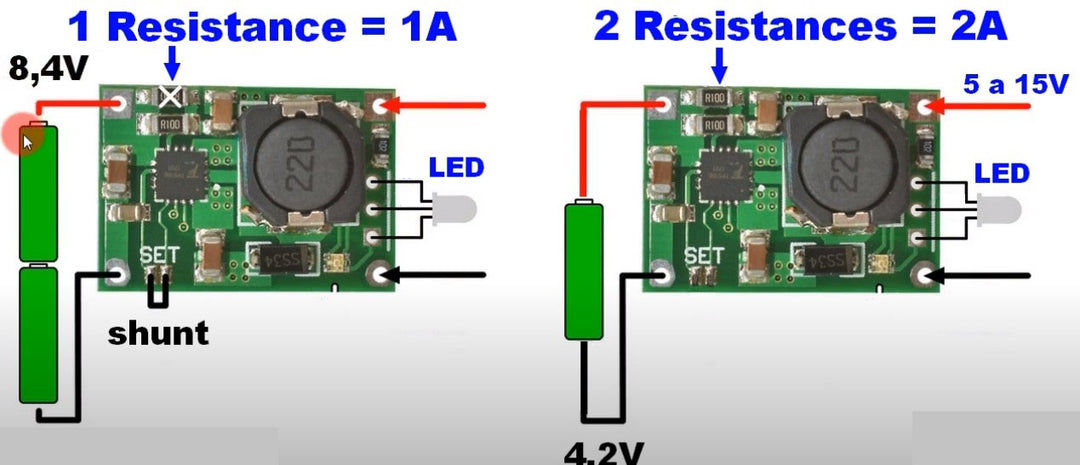

- Programmable charge current. 0. 1A-2A
- Programmable steady precharge current 10% -100%.
- Wide operating voltage, maximum reach I8V
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, under-voltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
Maximum Ratings:
- Static input supply voltage (VlN): 20V
- BAI: -8.4V-20V
- BAT Short-Circuit Duration: Continuous
- Operating environment Temperature range: -40 ° -85 °
- Storage temperature range: -65 ° - 125 °
Reference
- https://www.youtube.com/watch?v=vQIsc8-Uoio&ab_channel=Robojax
- https://bit.ly/TP5100-Datasheet
#ST3005 # BMS Battery Management System
