Package Included

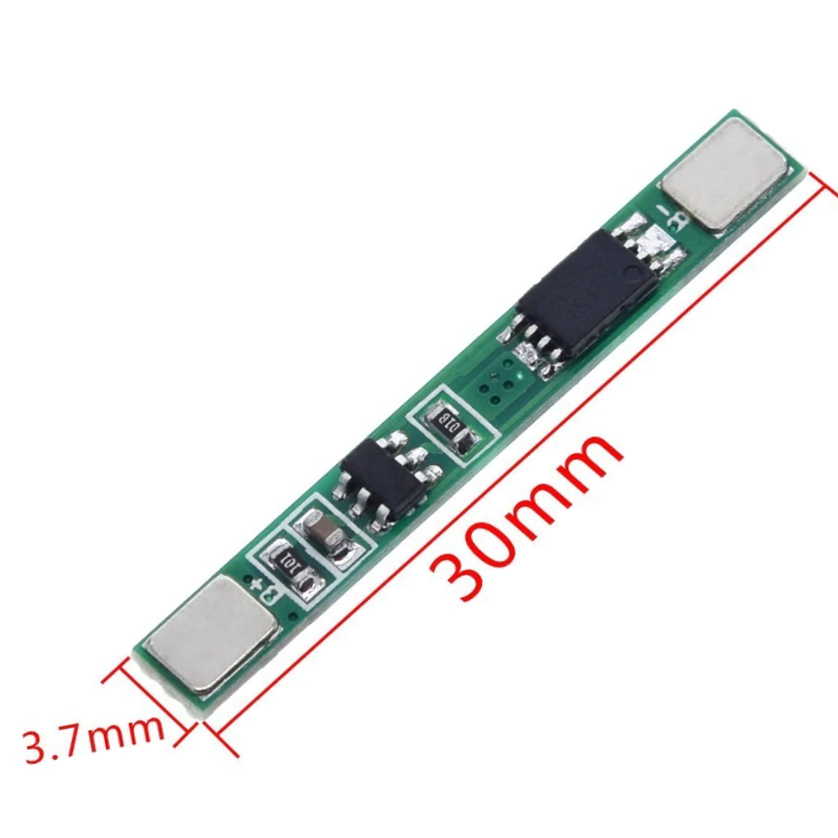

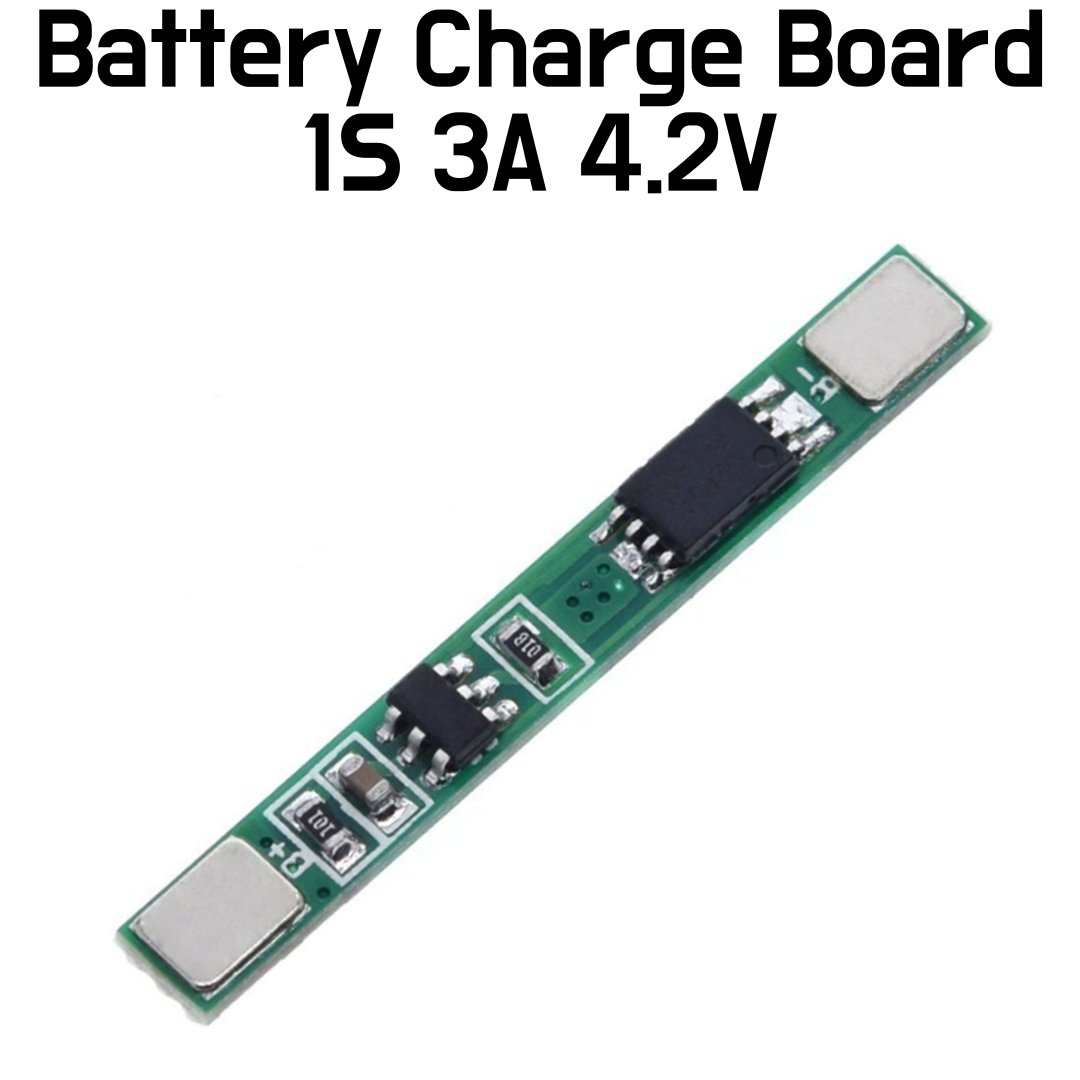

- 1pcs x 1S 3A 3.7V li-ion BMS PCM battery protection board pcm for 18650 lithium ion li battery

Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
- Charging test voltage: 4.25 + / - 0.05 V
- Charging: release of the 4.23 + / - 0.05 V
- A discharge detection voltage: 2.45 + / - 0.1 V
- Maximum sustained current: 2A
- Over-current detection current: 3A

Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS transistor can control the battery charge and discharge;

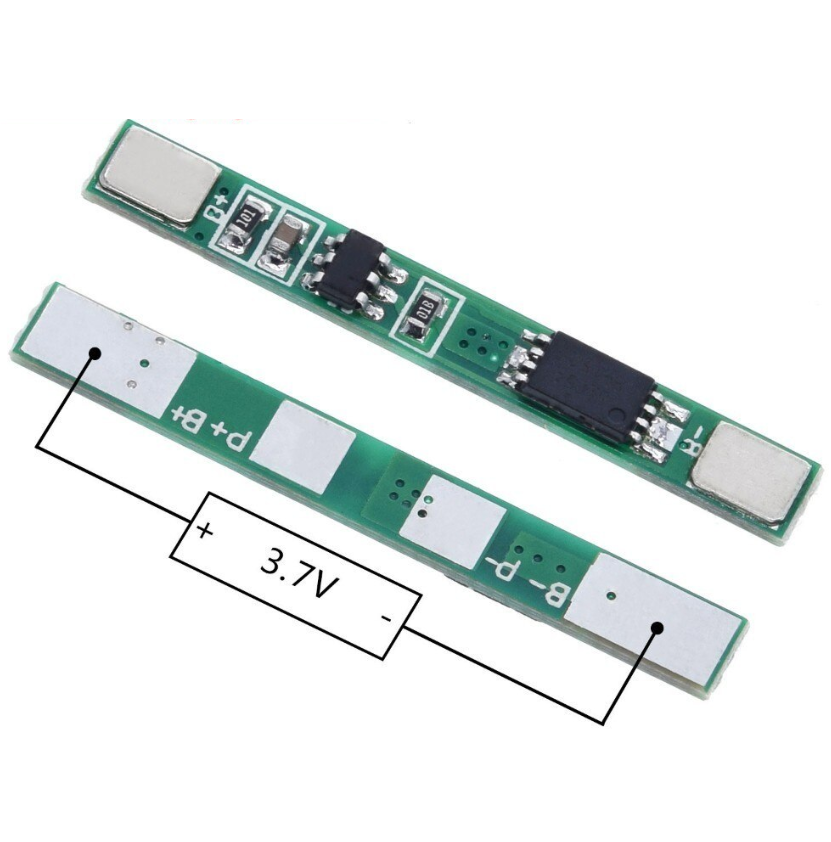

Connection details:
- B+ connect the positive electrode of the battery.
- B- connect the battery cathode.

#RC0304 # BMS Battery Management System
