Package Included

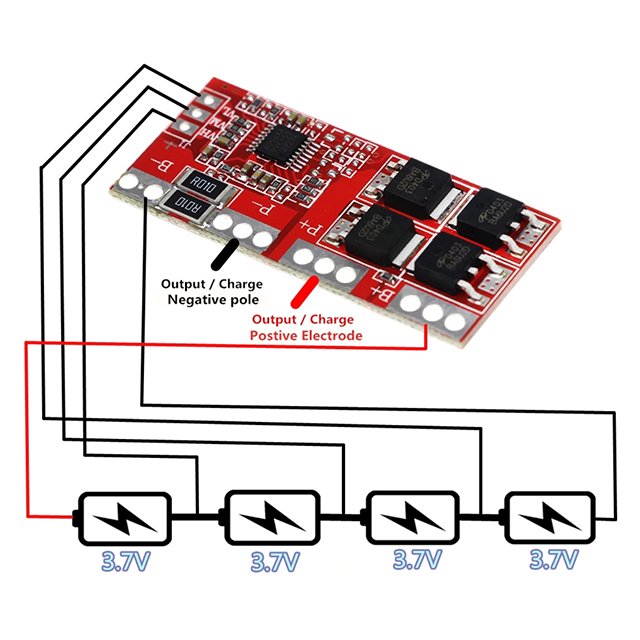

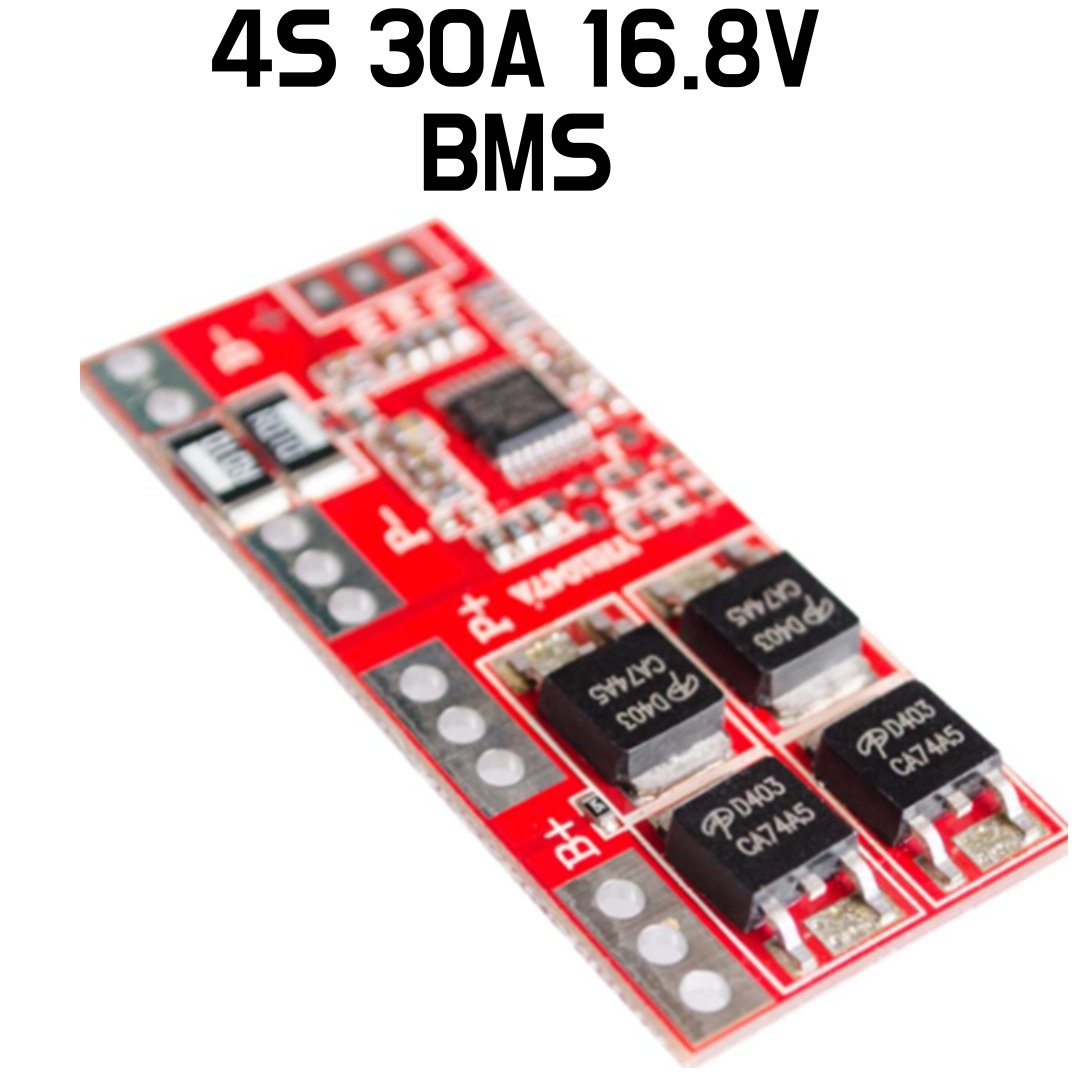

- 1pcs x 4S 30A 14.4V 14.8V 16.8V Current Li-ion Lithium Battery 18650 BMS Charger Protection Board

Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
- overcharge detection voltage :4.25±0.025V
- overcharge Lift the voltage:4.15±0.05V
- over discharge detection voltage :2.50±0.08V
- over discharge Lift the voltage:3.00±0.1V
- overcurrent current:20-30A
- working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)
- Remove protection condition automatic recovery, without activation
- operating temperature:40-85°

Protections:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection

#SS2001 # BMS Battery Management System
