4S 30A Lithium Battery 18650 BMS Charger Protection Board

Default
Regular price $11.99
/
  • Free shipping on all orders over $100
  • Secure payments
  • Low stock - 6 items left
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included

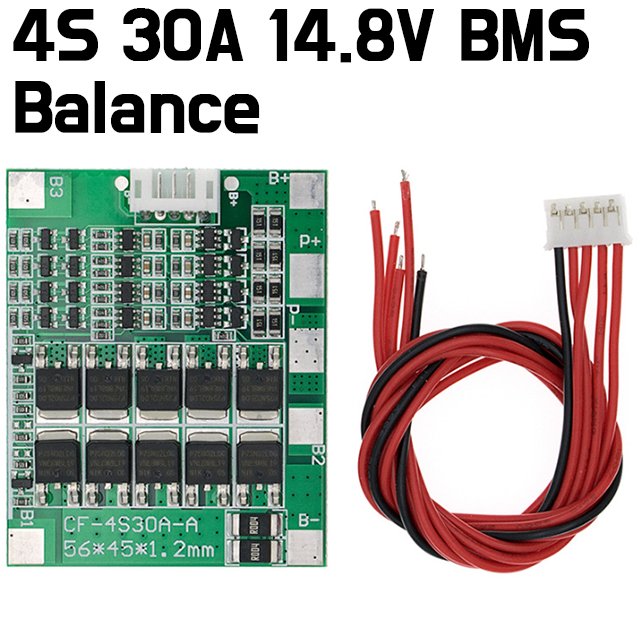

- 1pcs x 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS PCB Protection Board Balanced



Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
- Model:548604
- Over charge detection voltage: 4.28+ 0.05 V
- Over charging voltage: 4.095-4.195V
- Over discharge voltage: 2.55±0.08
- Over charge detection delay time 0.1s
- Temperature range -30-80
- Short circuit detection delay time: 100ms
- Over current detection delay time: 500 ms
- Balanced current: 60mA
- Working current: 30A
- Over current: 60A

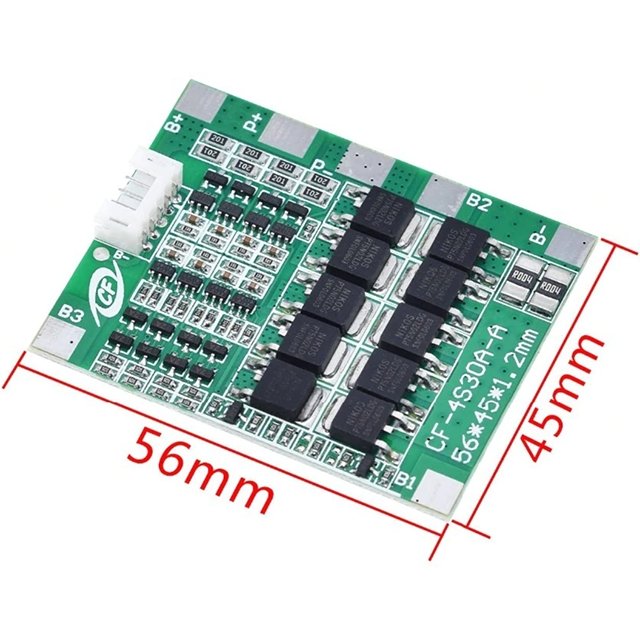

- Size:45x56mm

Main function:

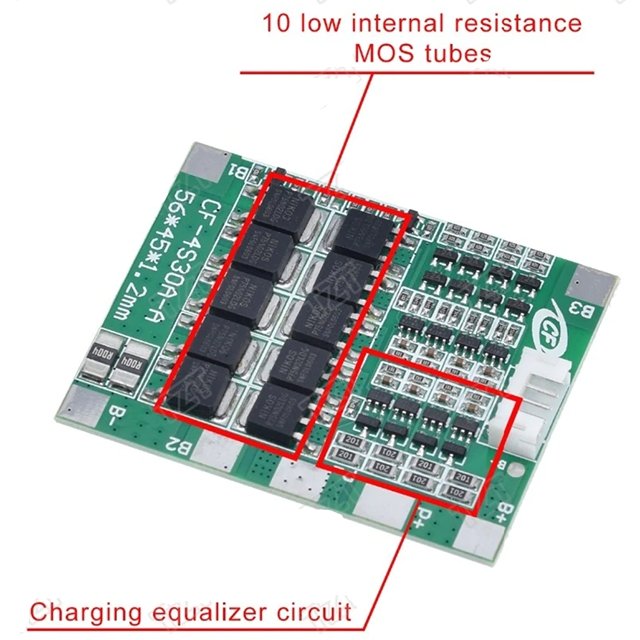

- Overcharge protection, over-discharge protection function, short circuit protection function, over current protection function, balance.

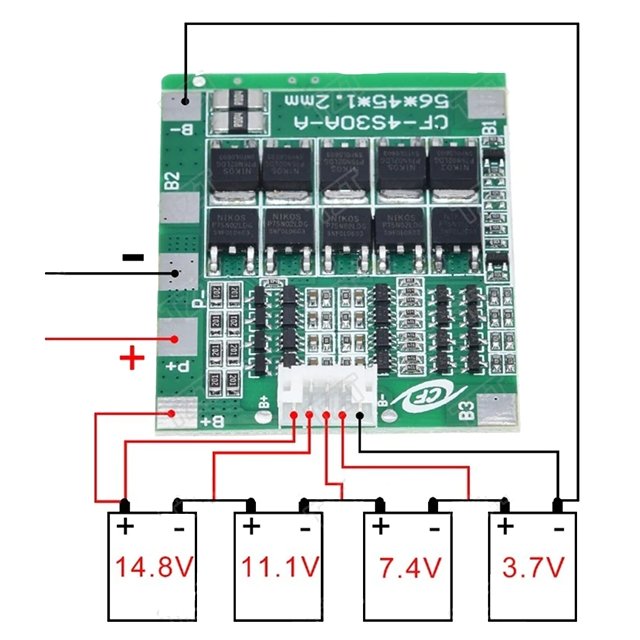

Interface definition:
- Charging port of the plate and the discharge port is the same, both positive and B- connecting
battery"-", P- charging port and port on the negative electrode;
- B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm;

***Please note that the cable connector is not soldered. You need to solder on the board yourself***
