Package Included

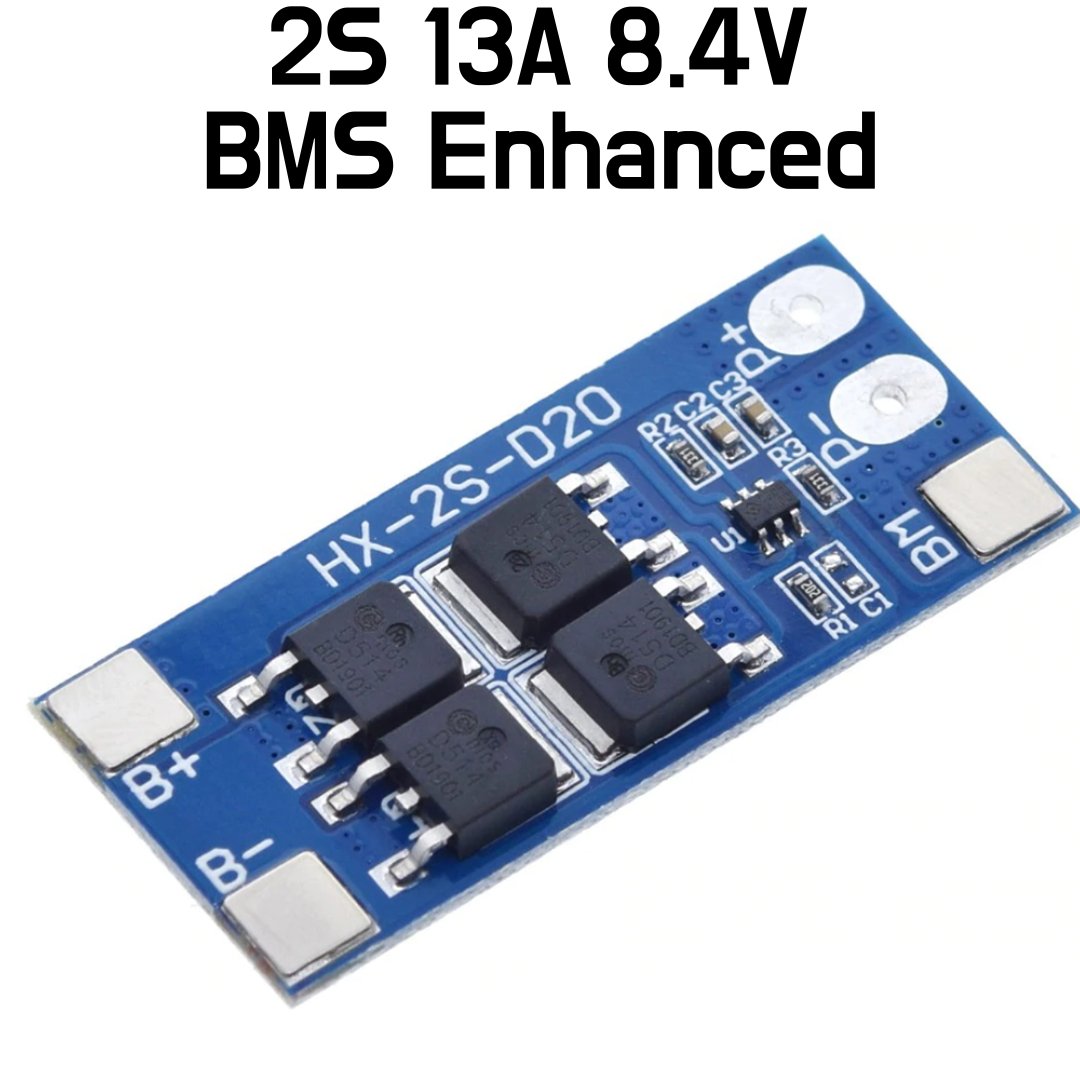

- 1pcs x 2S 10A 7.4V 18650 lithium battery PCB BMS Protection Board 8.4V

Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
- Maximum working current: 13A working temperature: - 40 - + 50 °
- Maximum instantaneous current: 20A storage conditions: - 40 - + 80 °
- Static current: less than 10uA effective life: more than 50,000 hours
- Resistance: less than 300mΩ short circuit protection: to protect and restore must charge
- Charging voltage: 8.4v - 9v

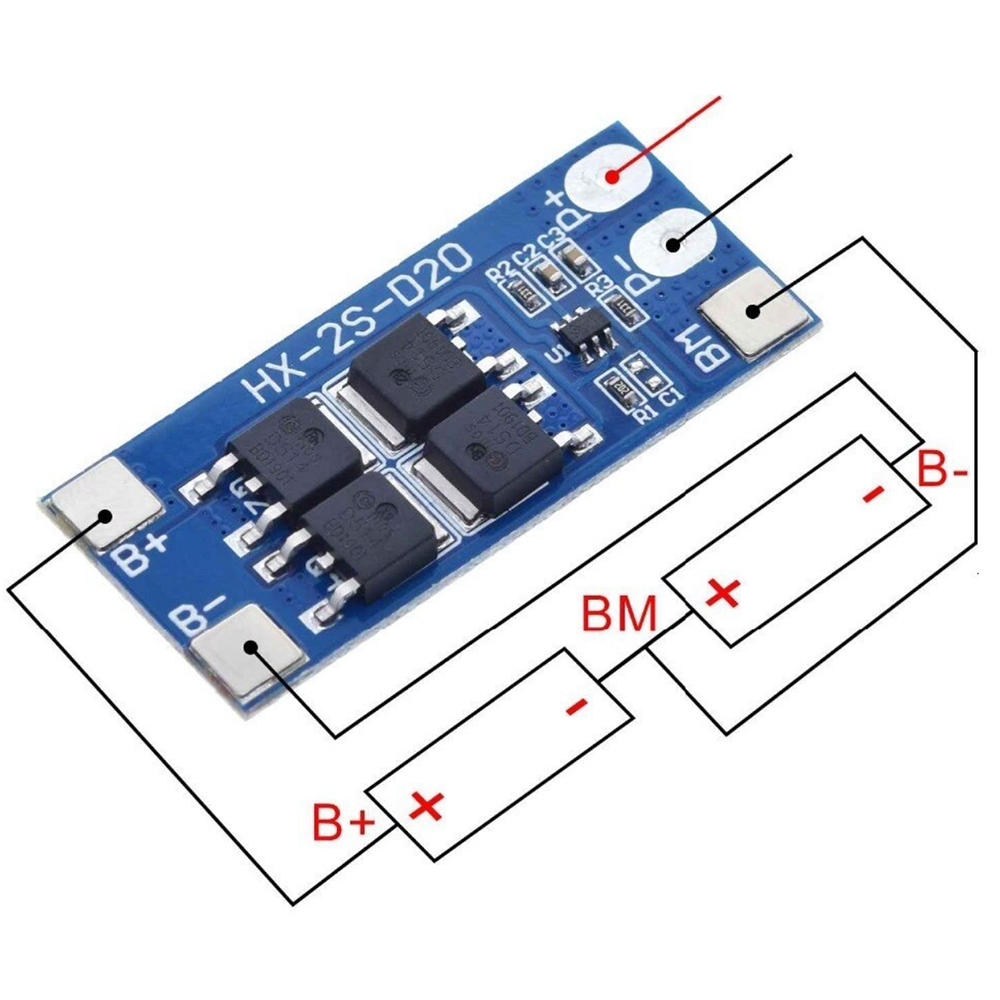

Welding point description:
· B + battery anode;
· B - connect battery negative terminal;
· MMB connect battery 1 to battery 2;
· P + charging/discharge correct poles (charging end/discharge end sharing);
· P - charging/discharge terminal negative terminal (charging end/discharge end sharing).

Note:
- This can not be used in lithium iron phosphate battery protection board

#RN1004-1  # BMS Battery Management System

Standard: $5.99
