Package Included

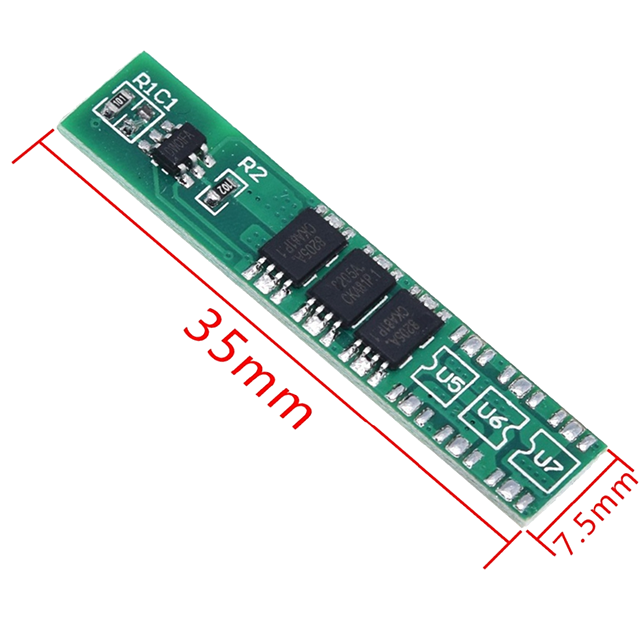

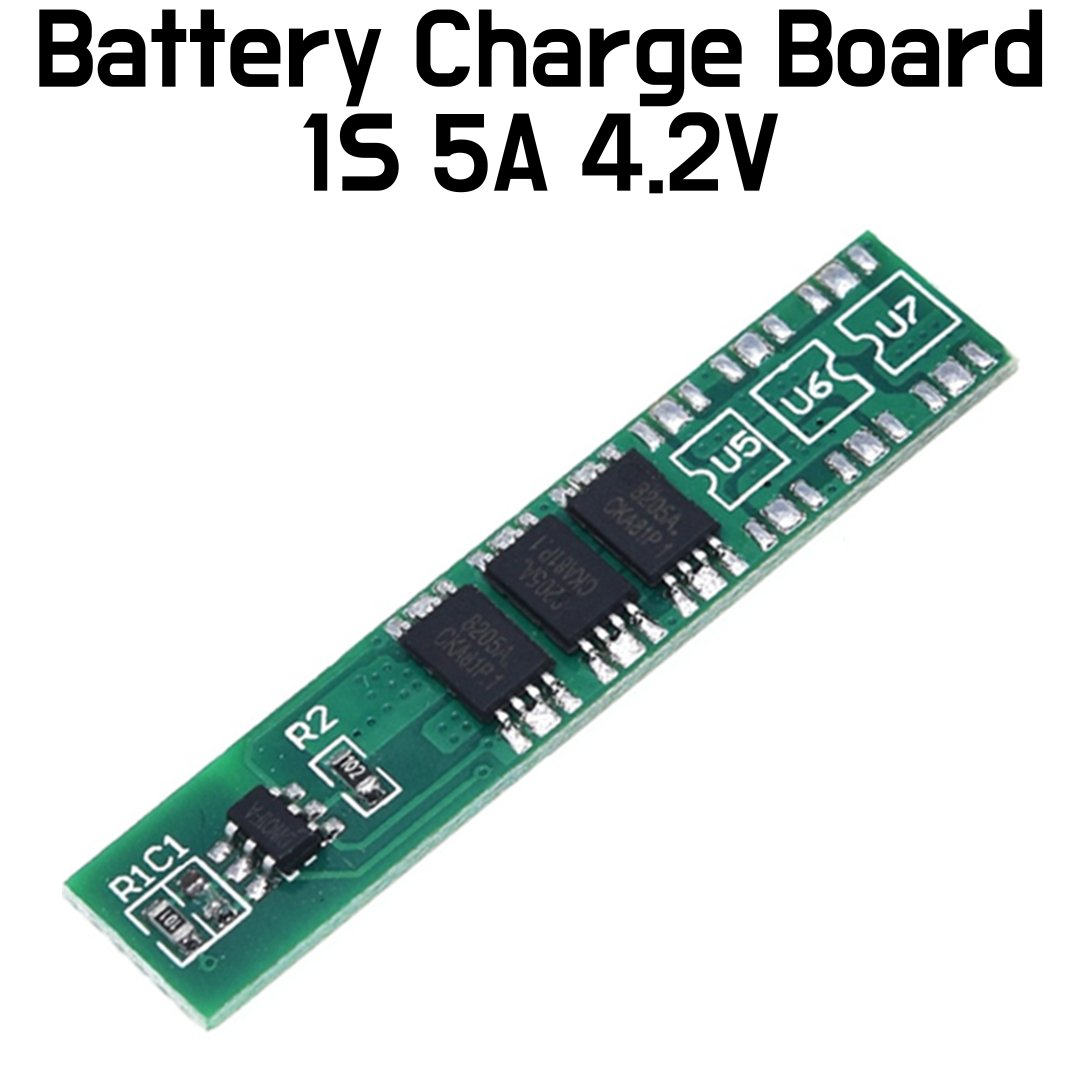

- 1pcs x 1S 5A 3.7V li-ion BMS PCM battery protection board pcm for 18650 lithium ion li battery

Please be sure to read the following precautions
- https://bit.ly/Precausions-BMS

Description:
- Charging test voltage: 4.25 + / - 0.05 V
- Charging: release of the 4.23 + / - 0.05 V
- A discharge detection voltage: 2.45 + / - 0.1 V
- Maximum sustained current: 6A
- Over-current detection current: 7.5A
- Charging voltage: 4.2 V

Main functions:
- The overcharge protection, discharge protection, short circuit protection, over current protection.

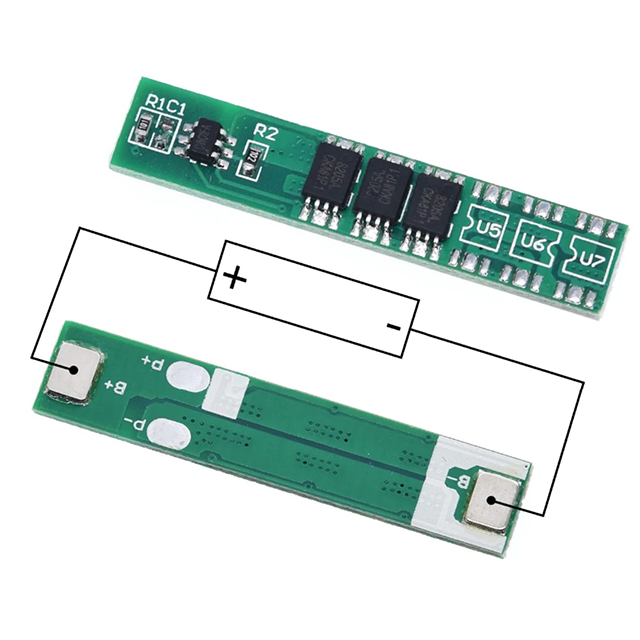

Connection details:
- B+ connect the positive electrode of the battery.
- B- connect the battery cathode.
- P+ is the input positive pole of battery output
- P- is the output-input cathode of the battery pack
