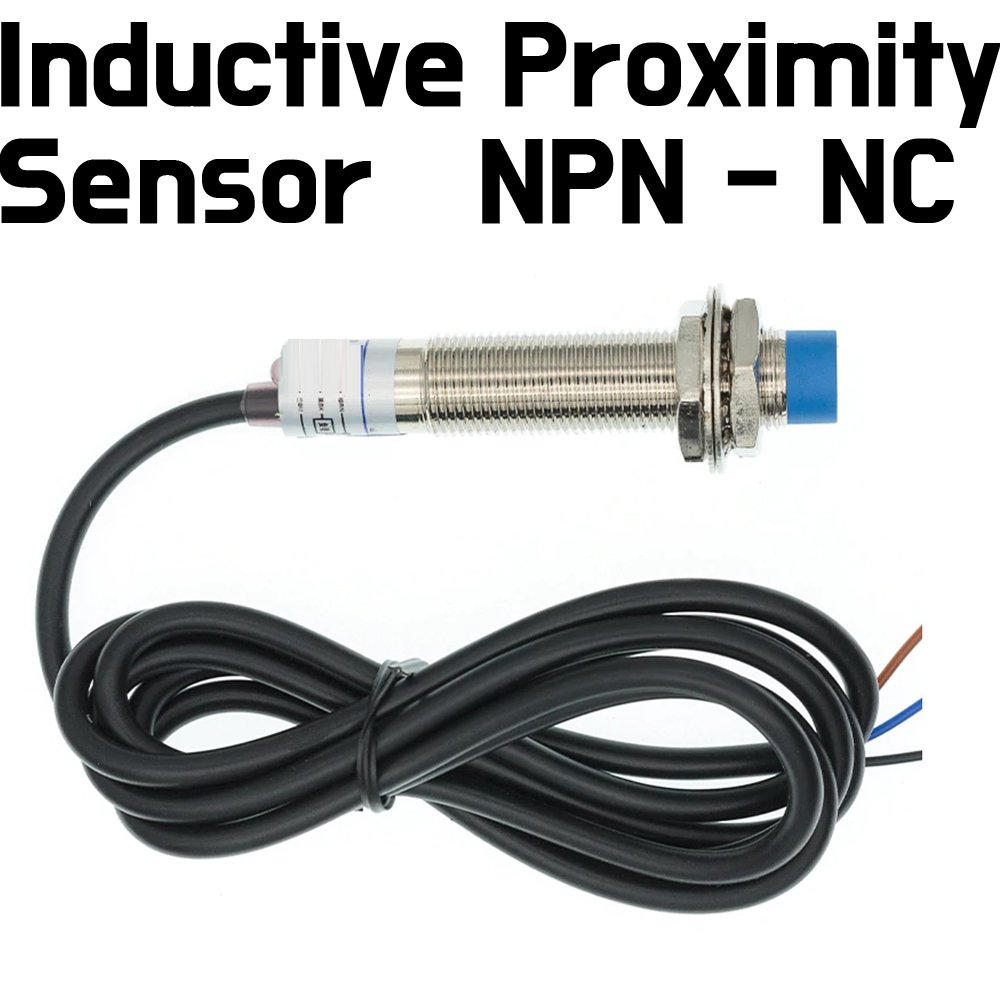

Name: Inductive Proximity Sensor NPN-NC
Brand: ePartners NZ
SKU: S-GM8004
Price: 11.99 NZD
Availability: InStock

Inductive Proximity Sensor NPN-NC - ePartners NZ

Default

Price

Free shipping on all orders over $100

Secure payments

Low stock - 7 items left
Inventory on the way

[{"id":42713397330170,"title":"Default","option1":"Default","option2":null,"option3":null,"sku":"S-GM8004","requires_shipping":true,"taxable":true,"featured_image":{"id":39386664730874,"product_id":7602082611450,"position":1,"created_at":"2023-05-21T00:40:42+12:00","updated_at":"2023-05-21T00:40:42+12:00","alt":"Inductive Proximity Sensor NPN-NC - ePartners NZ","width":1000,"height":1008,"src":"\/\/epartners.co.nz\/cdn\/shop\/products\/inductive-proximity-sensor-npn-nc-792313.jpg?v=1684586442","variant_ids":[42713397330170]},"available":true,"name":"Inductive Proximity Sensor NPN-NC","public_title":null,"options":["Default"],"price":1199,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Inductive Proximity Sensor NPN-NC - ePartners NZ","id":31997075063034,"position":1,"preview_image":{"aspect_ratio":0.992,"height":1008,"width":1000,"src":"\/\/epartners.co.nz\/cdn\/shop\/products\/inductive-proximity-sensor-npn-nc-792313.jpg?v=1684586442"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Package Included
- 1pcs x Inductive Proximity Sensor NPN-NC

Description:

- Supply voltage: DC 6~36V
- Polarity: NPN
- Output status: Normally Close(NC)
- Part number: LJ12A3-4-Z/AX
- Detection distance: 4mm ± 10%
- Current: 6V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
- Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
- Material: (Housing:Nickel plated brass) (Detection surface:ABS)
- Protection influence: IP67(IEC specification)
- Thread Diameter: Diameter: 12mm
- Column Sensor Diameter: 10.5mm
