Package Included

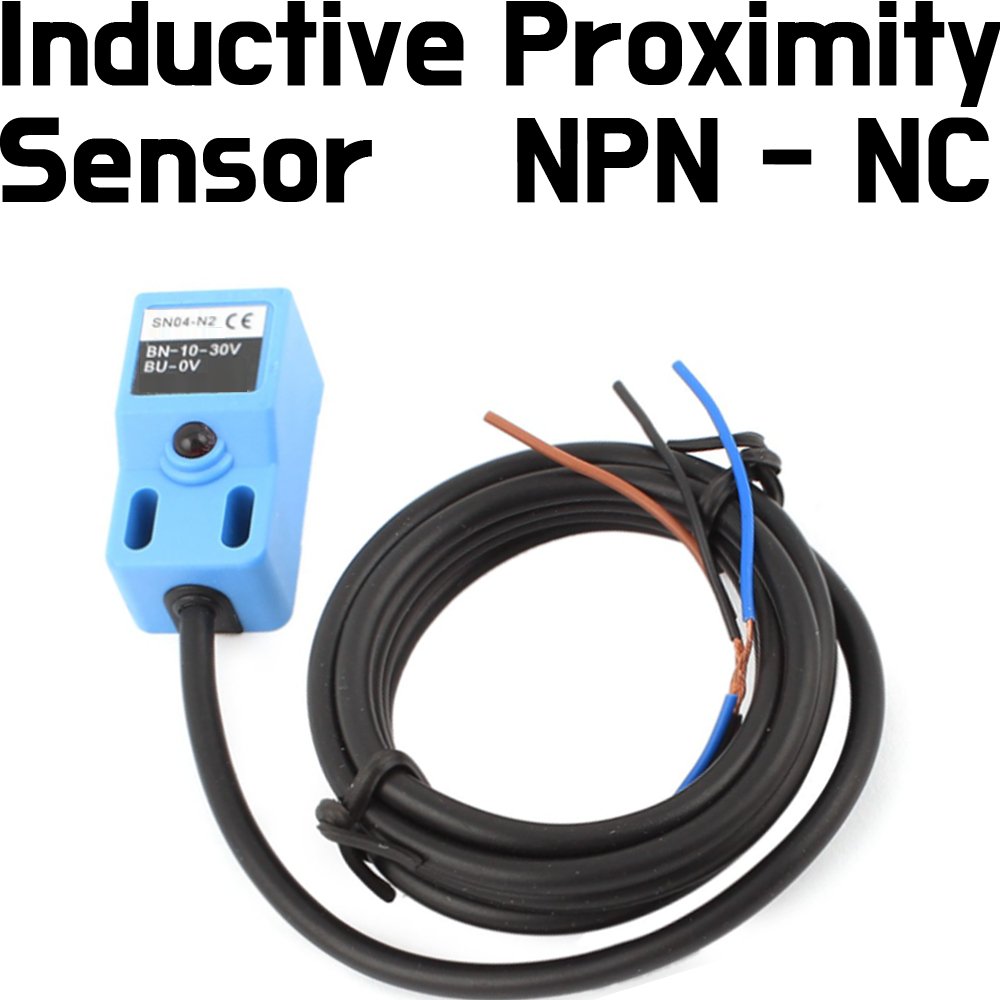

- 1pcs x Inductive Proximity Sensor NPN-NC

Description:
- Supply voltage: DC 6~36V
- Polarity: NPN
- Output status: Normally Close(NC)
- Detection distance: 4mm ± 10%
- Response frequency:DC:0.5kHz
- Current: 6V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
- Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
- Material: (Housing:Nickel plated brass) (Detection surface:ABS)
- Protection influence: IP67(IEC specification) -
- The temperature range: -25 - +65C
- Cable length: 1M
- Output indication: LED

Brown wire: VDC
Blue wire: 0V (GND)
Black wire: Signal

# GA4001
