Package Included

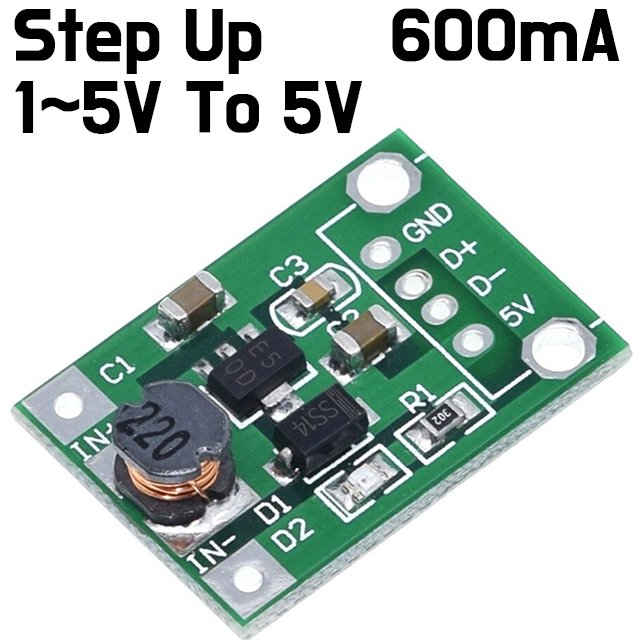

- 1pcs x 600mA DC-DC Mini Step Up Power Module 1-5V To 5V Step-up Boost Converter



1.Input voltage: 1V~5V
2.Output voltage: 5V
3.Output Current: 600mA

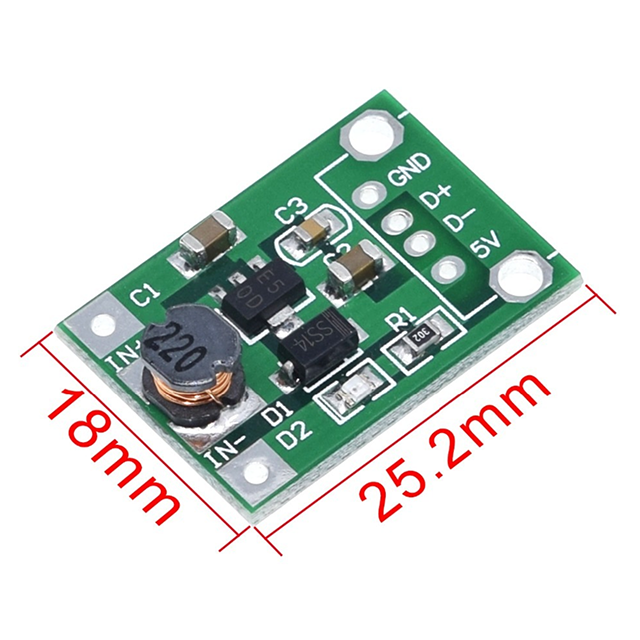

4.PCB size: 17.55mm*25.22mm*5.85 mm
5.En bloc Size: 17.55*32.53*8.3mm
Package Include:
1 pcs 600mA DC-DC Mini Step Up Power Module

1. input any DC voltage of 1V~5V, output 5V DC voltage is stable, the input to the output current of 500~600MA with two AA batteries, a single AA battery power supply output current 200ma about for mobile phones camera, single-chip, digital products supply.
2. High conversion efficiency, up to 96%
3. Ultra-small size, installed in a variety of small equipment
4. With working lights

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
