Package Included

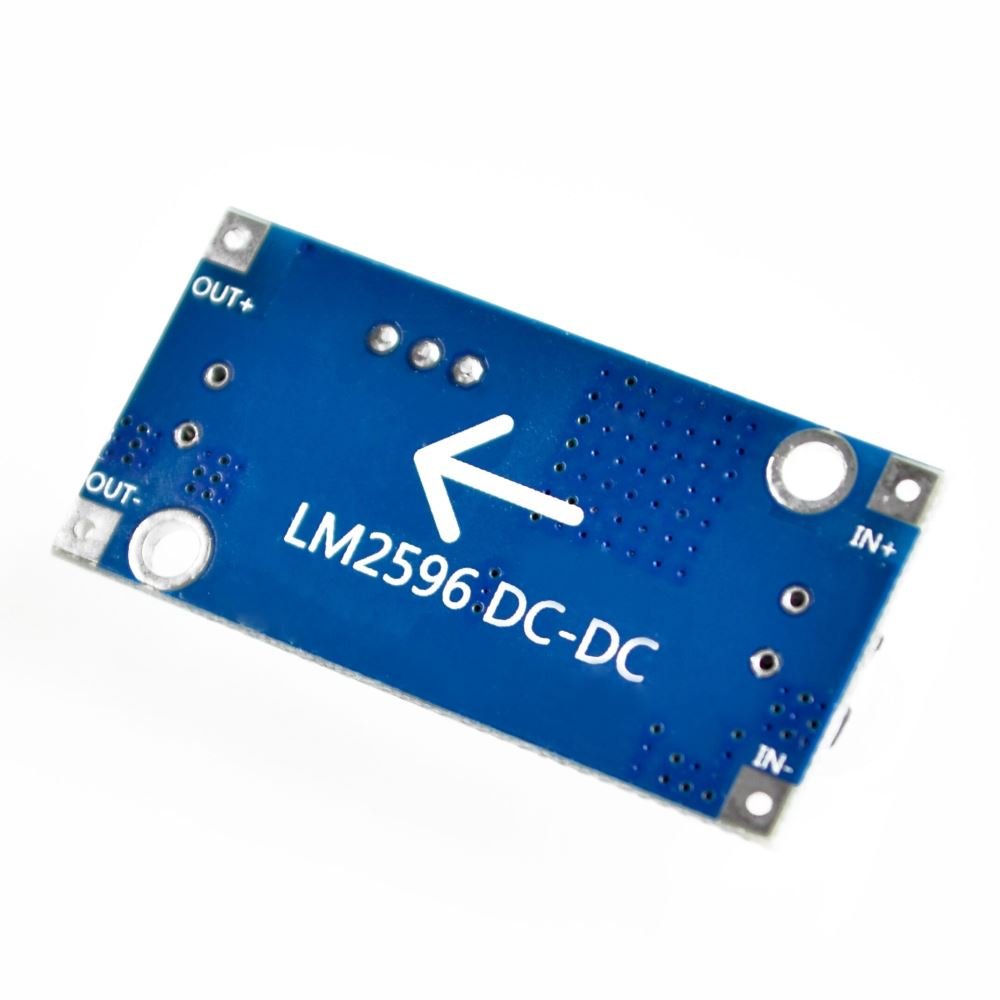

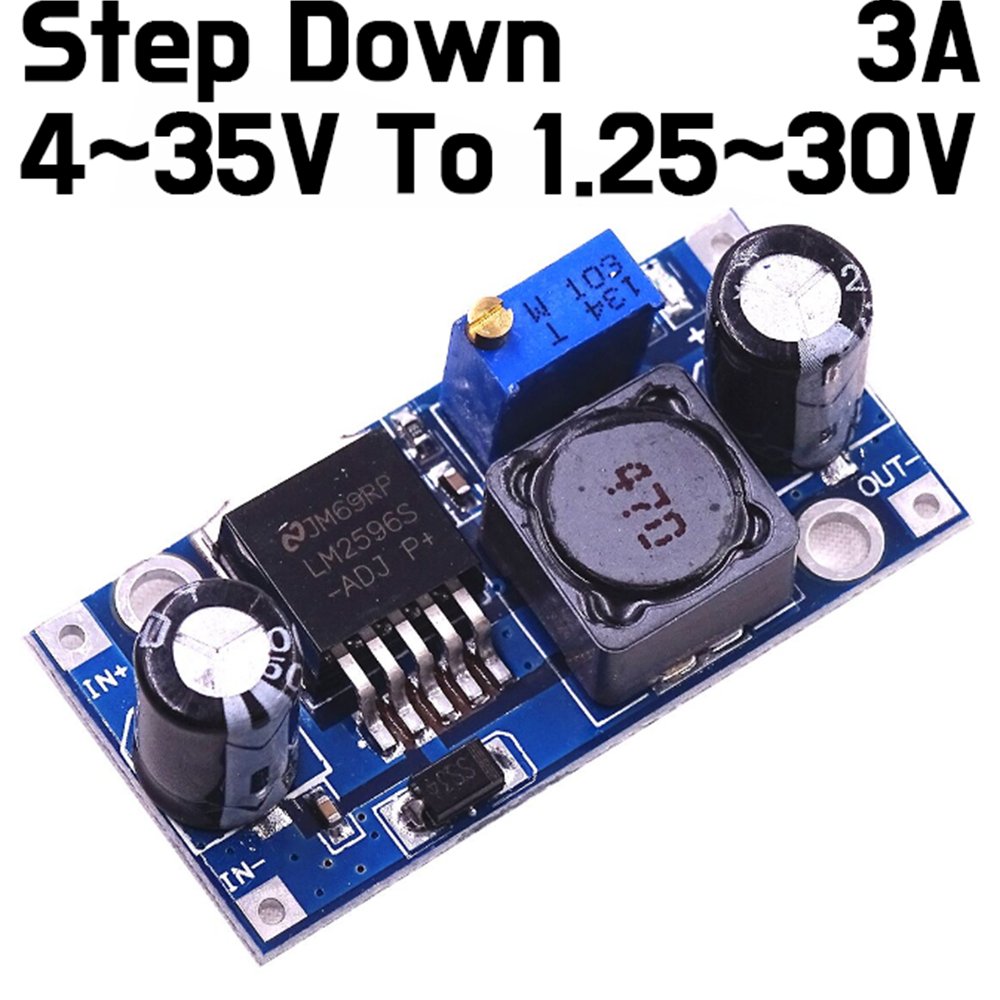

- 1pcs x LM2596 LM2596S DC-DC adjustable step-down buck converter power Supply module 3A Buck Converter

Description:
- Input voltage :4V ~ 35V
- The output voltage : 1.25V ~ 30V
- Output Current :3A( Max)
- Conversion efficiency:92%( MAX )
- Working temperature: -45 ~ +85
- Size :43mm * 21mm * 14mm

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

Instructions:
1. Power (3-40V), power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (clockwise rotation generally boost, counter-clockwise rotation Turn down)

NOTE: Current work long hours is recommended for use in less than 2.5A, while adding heat sink (10W output above),

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
