Package Included

- 1 x Ethernet ENC28J60 Network Expansion Development Board - LAN

Description

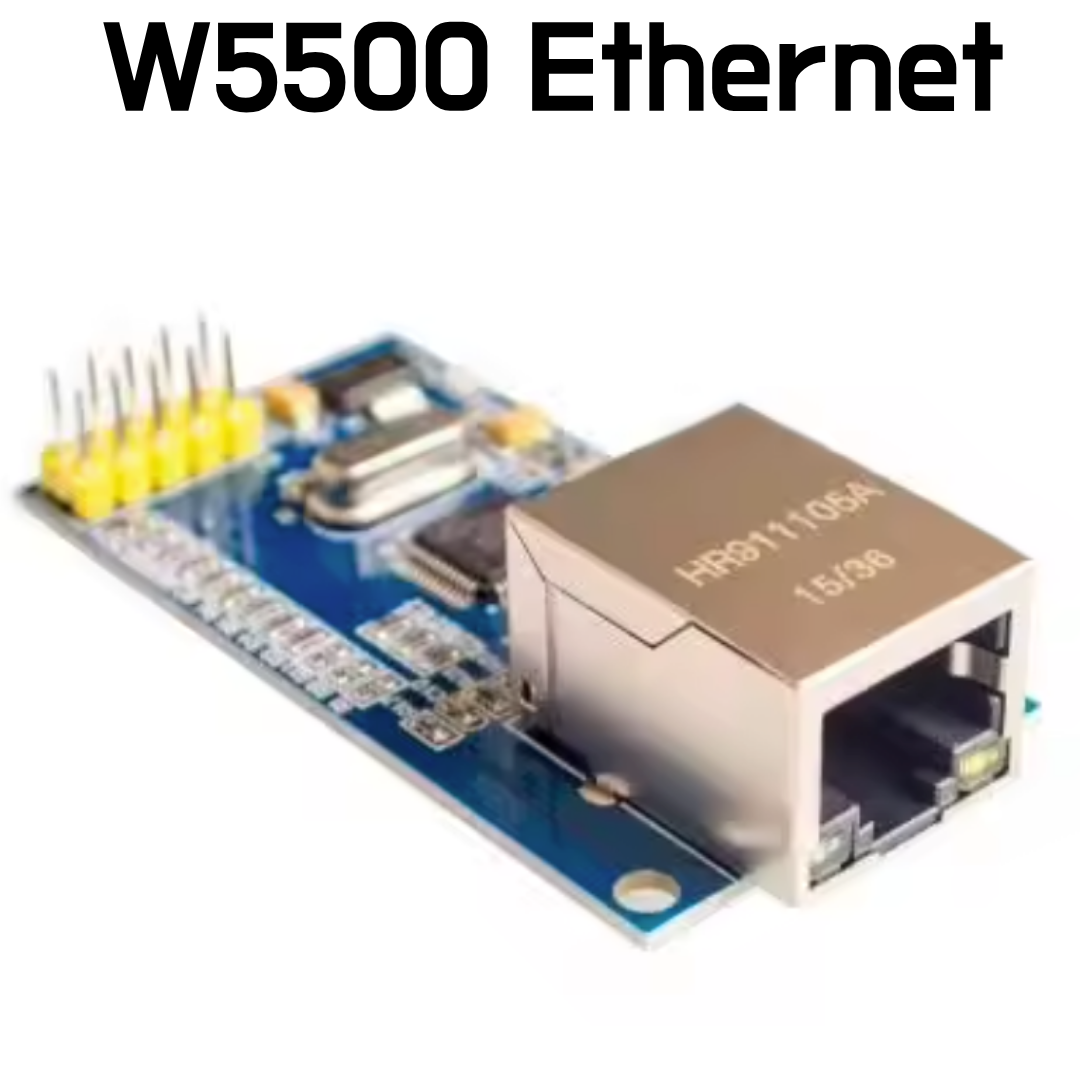

This W5500 Ethernet module provides a simple way to add 10/100 Mbps wired Ethernet connectivity to Arduino, ESP32, STM32 and other microcontroller projects. It communicates with the host controller through a high-speed SPI interface and includes a hardware TCP/IP stack, reducing the processing load on the main MCU.

Features

• W5500 Ethernet Controller: Hardware TCP/IP Ethernet controller
• Ethernet Speed: 10/100 Mbps
• Interface: SPI, up to 80MHz
• Network Port: RJ45 with integrated Ethernet transformer
• TCP/IP Hardware Support: TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE
• 8 Independent Sockets: Supports up to 8 simultaneous network connections
• Internal Buffer: 32KB TX/RX memory
• Auto Negotiation: Supports 10/100 Mbps and Full/Half Duplex
• LED Indicators: Link and network activity status
• Low Power Features: Power-down mode and Wake-on-LAN support
• Easy Integration: Suitable for Arduino, ESP32, STM32 and other SPI-enabled microcontrollers

Specifications

• Ethernet Controller: W5500
• Ethernet Standard: 10BASE-T / 100BASE-TX
• Network Speed: 10/100 Mbps
• Host Interface: SPI
• Maximum SPI Clock: 80MHz
• Network Protocols: TCP, UDP, IPv4, ICMP, ARP, IGMP, PPPoE
• Socket Count: 8
• TX/RX Buffer: 32KB
• Operating Voltage: 3.3V DC
• Connector: RJ45
• Operating Temperature: -40°C to +85°C

Applications

• Arduino Ethernet projects
• ESP32/ESP8266 Ethernet connectivity
• STM32 networking projects
• Industrial and embedded systems
• IoT devices
• TCP/UDP communication
• Network monitoring and control
• Remote control and data acquisition
