Package Included

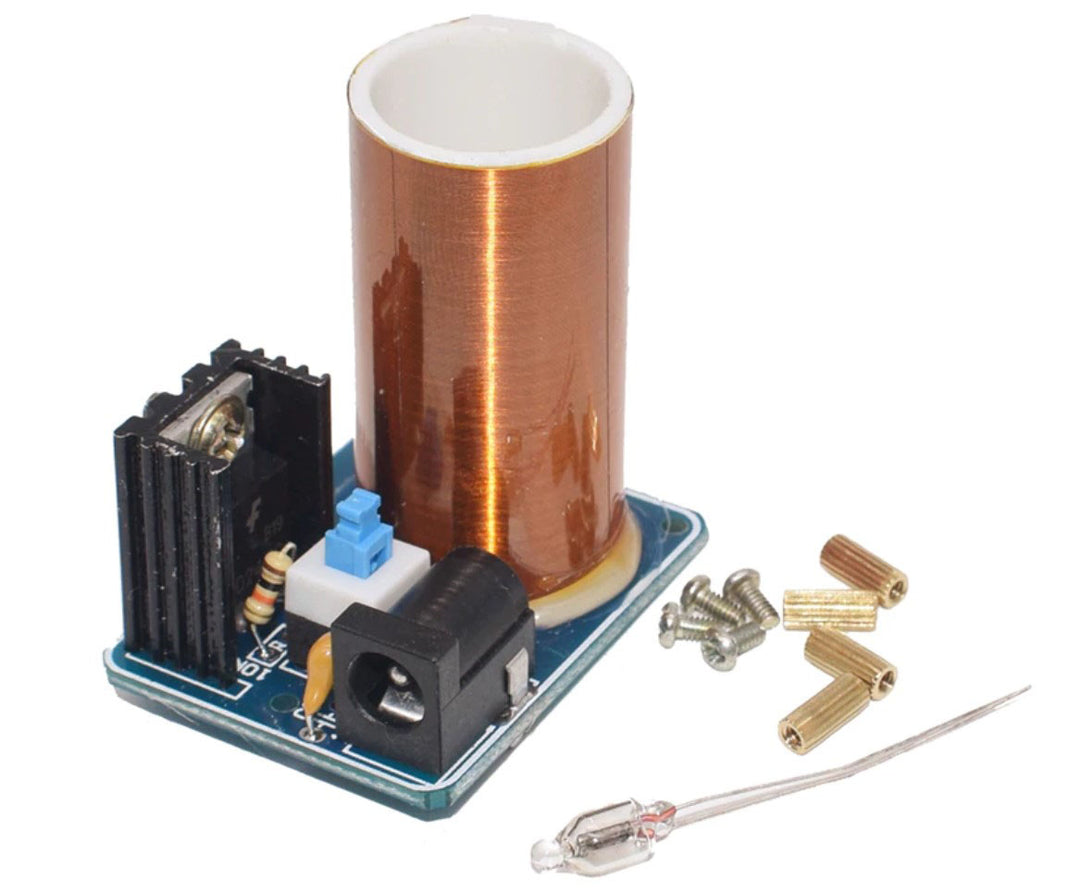

• 1 x Tesla Coil DC 12v (Not assembled)

*** Part Included ***
 - 1 x PCB Board
 - 1 x Coil
 - 2pcs x 3MM LED Blue
 - 1 x DC005 Seats
 - 2pcs x 105 Single Stone Capacitor
 - 1 x 8 * 8 Self-locking Switch
 - 2pcs x 10K Resistor
 - 1 x 15 * 10 * 20 Small Radiator
 - 1 x 3 * 6 Screw
 - 1 x BD243
 - 4pcs x M2 * 4 Screws
 - 4pcs x M2 * 7 Duplex Copper Column

Description

- Dimensions: 4 x 3.1cm
- Input voltage: 12V

Precautions:

1. Do not touch coil as it causes a burning sensation
2. Do not touch heat sink as it may be hot after use.
3. Keep outside objects and moisture away from coil as it may interfere with effect, and or cause damage to devices

Name: Mini Coil Module for TESLA
Input voltage: 9-12V (can be started with a 9V battery, but if there is an arc, the working voltage needs to be 12V)
PCB board size: 40x31mm/1.57x1.29in

Instruction

This kit is simple to assemble, so a separate instruction manual is not included.
Each component has only one designated position on the PCB, so there should be no confusion about where the parts need to be installed.
One extra resistor and one extra capacitor are included as spares. Only one of each is required for assembly.
The diode is the component with polarity. Please install it according to the polarity marking printed on the PCB.

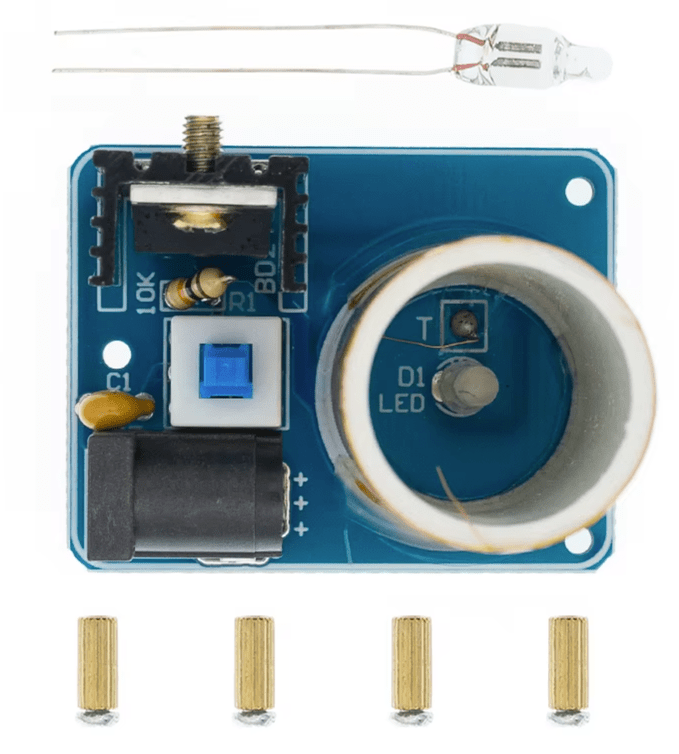

Please refer to the attached top-view photo of the PCB for component placement.

Note: This is a DIY kit, assembly required!
