Package Included

• 1 x Type C Female Socket

Description:

• Connector: 4pin PH2.0
• Rated current 3A
• Operating temperature: ~30° ~ 85°C
• Hosuing: Plastic

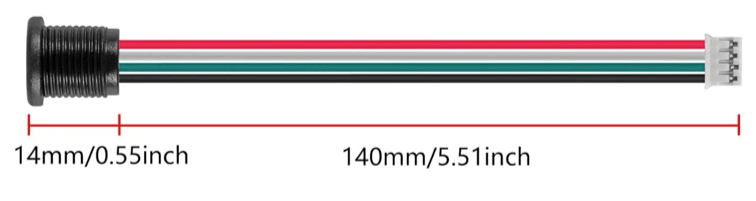

• Size: refer to the pictures


4-Pin USB Type-C Panel Mount Connector — Pinout
Red — VBUS (+5V power)
Black — GND (ground)
Green — D+ (data positive)
White — D– (data negative)

Note:
Reversible insertion — both connector orientations are internally shorted together, so it works the same either way.
