Package Included

- 1 x W1209 DC 12V thermostat temperature control switch

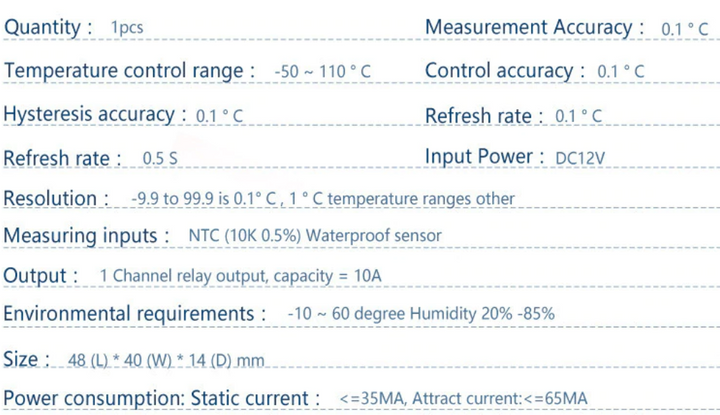

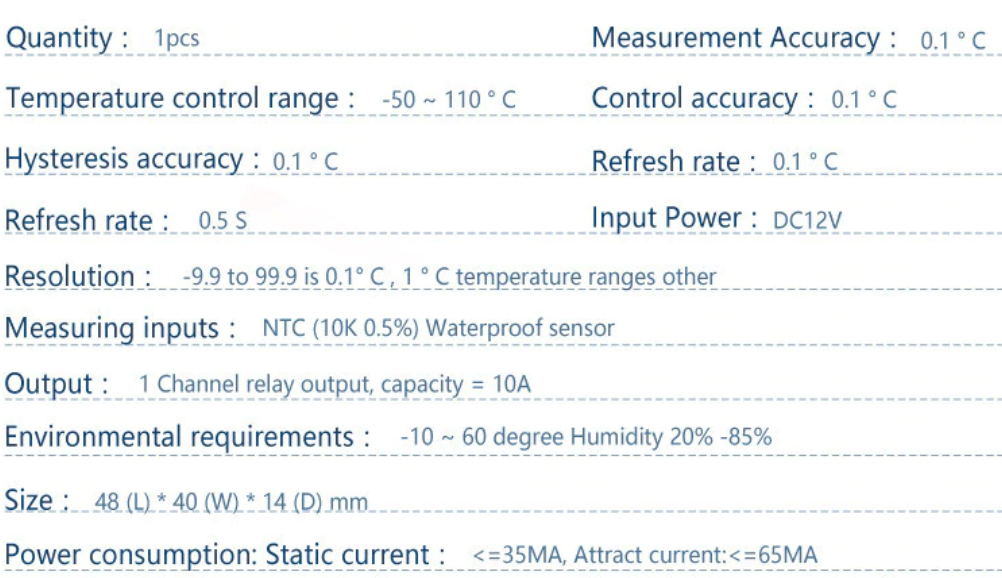

Description:

- Temperature control range: -50 ~ 110 ° C
- Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
- Measurement Accuracy: 0.1 ° C
- Control accuracy: 0.1 ° C
- Hysteresis accuracy: 0.1 ° C
- Refresh rate: 0.5 S
- Input Power: DC12V
- Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
- Output: 1 Channel relay output, capacity = 10A
- Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
- Size: 48 (L) * 40 (W) * 14 (D) mm
- Power consumption: Static current:<=35MA, Attract current:<=65MA

For more description and function setting table, refer the pictures.
