Package Included

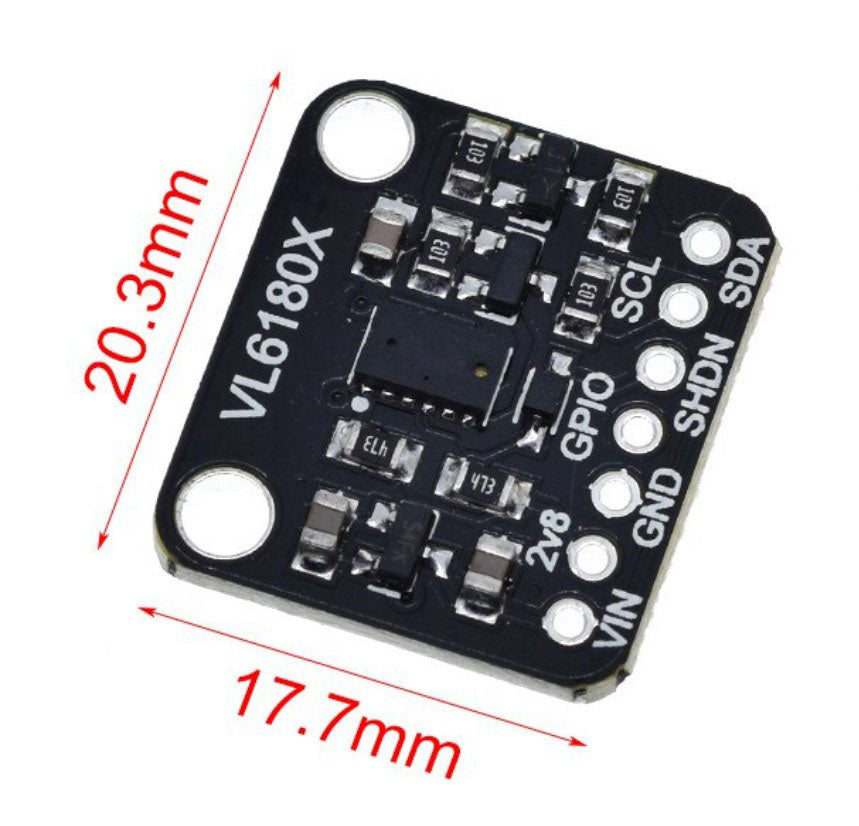

- 1  x VL6180X Time-of-Flight (ToF) Distance Sensor Module

Descriptions:

- Infrared laser wavelength: 850nm
- Communication interface: IIC (400kHz), address 0x29 (7-bit), two programmable GPIO
- Optimal working temperature: -10 ~ 60 ° C
- Range (near) range: 0 to 100mm Error 13mm Under certain external environmental conditions, such as 100mm in dark environments
- Conversion time: 15ms
- Ambient light range: 1~100kLux 16-bit output
- Ambient light gain range: 1 to 40 (eight)
- Angle response: 42 degrees

- Vin: Power input pin. Voltage input range 3-5V;
- GPIO: The pin used by the sensor to indicate that the data is ready. Note that the output of this pin is 0-2.8V high and low. This pin may not be applied to boards such as Arduino (these boards are 3.3 or 5V high). ), generally not used, to apply level conversion; SHDN: sensor off pin. By default it is pulled high. There is a level shifting diode so you can use 3-5V logic on this pin. When the pin is pulled low, the sensor enters the shutdown mode;

Reference

• https://learn.adafruit.com/adafruit-vl6180x-time-of-flight-micro-lidar-distance-sensor-breakout/overview
