Package Included

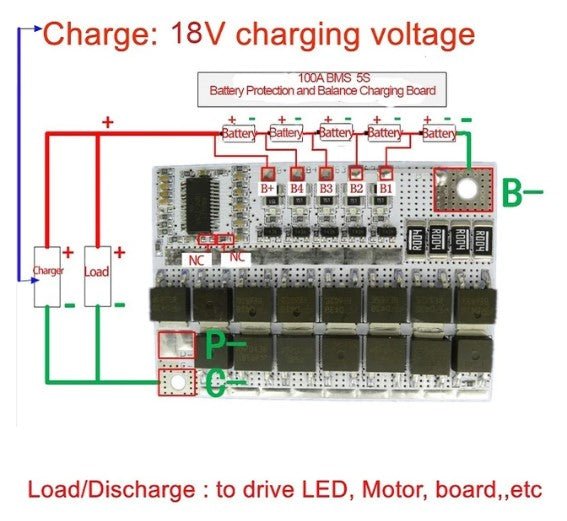

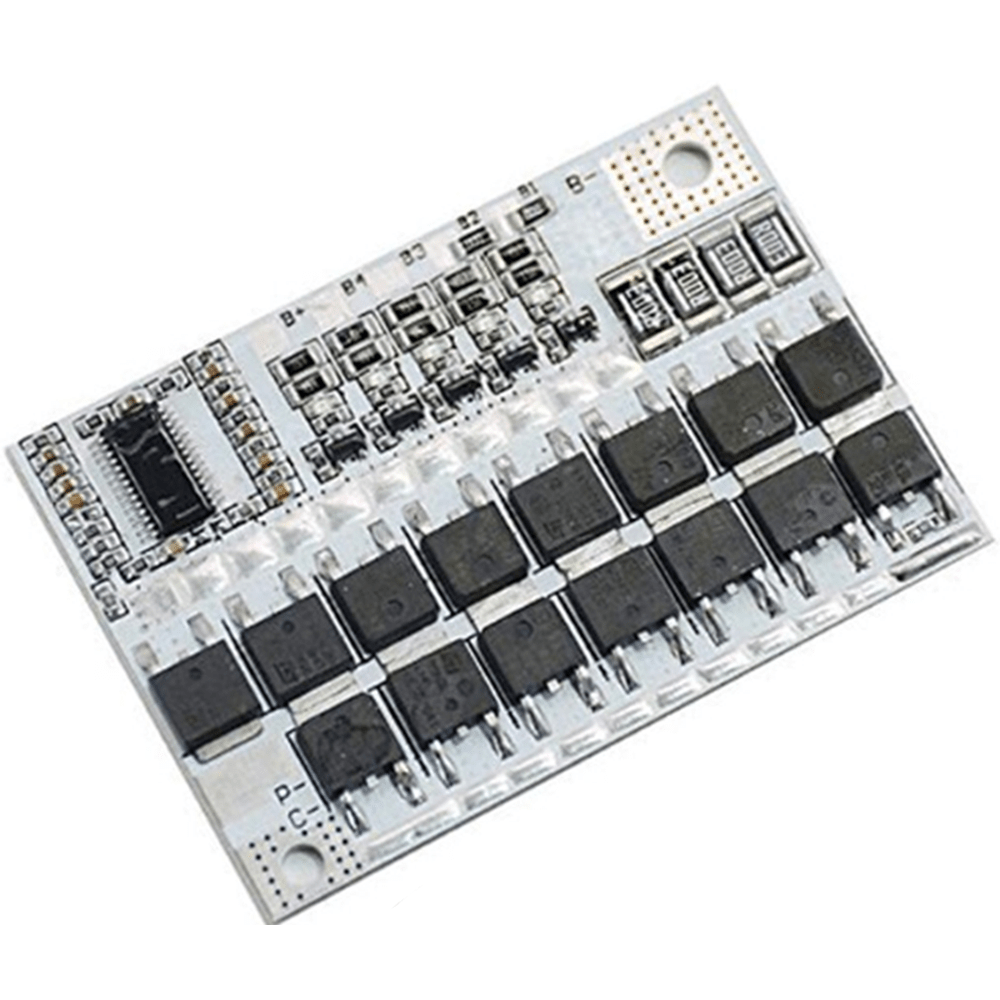

- 1 x 5s Bms 12v 16.8v 18v 21v 100A Lithium Battery Protection Circuit Board

Description:

- This protection board is 3s 4s 5s in common use LiFePo battery protection board
- Can use for LiFePo battery,battery packs etc.

- Single cell battery overcharge protect voltage : 3.61-3.69 V
- Single cell battery overcharge protect recover voltage : 3.5-3.6V
- Overcharge protect delay : 1.5-2.5S
- Single cell battery over-discharge protect voltage : 2.27-2.43 V
- Single cell battery over-discharge protect recover voltage : 2.45-2.65 V
- Overcharge protect Current : 100A
- Over-discharge protect Current : 100A
- Over-discharge protect delay : 0.5-1.5S
- Temperature protect : Yes,have Temperature control interface.
- Disconnect protect : Yes
- Shortage protect : Yes
- Shortage delay : 100-600 uS
- Shortage protect recover mode: Off load release.
- Contact discharge current:80A
- Synopline discharge current:60A
- Charging current:60A
- balance function:yes
- Ampere balance (Current) : 50MA
- Voltage alance accuracy : 3.355-3.455 V

Please be sure to read the following precautions

- https://bit.ly/Precausions-BMS

Attention:

Do not mix the good battery and poor battery to use.
Please, buyers, know the professional knowledge of this module before buying
