Package Included

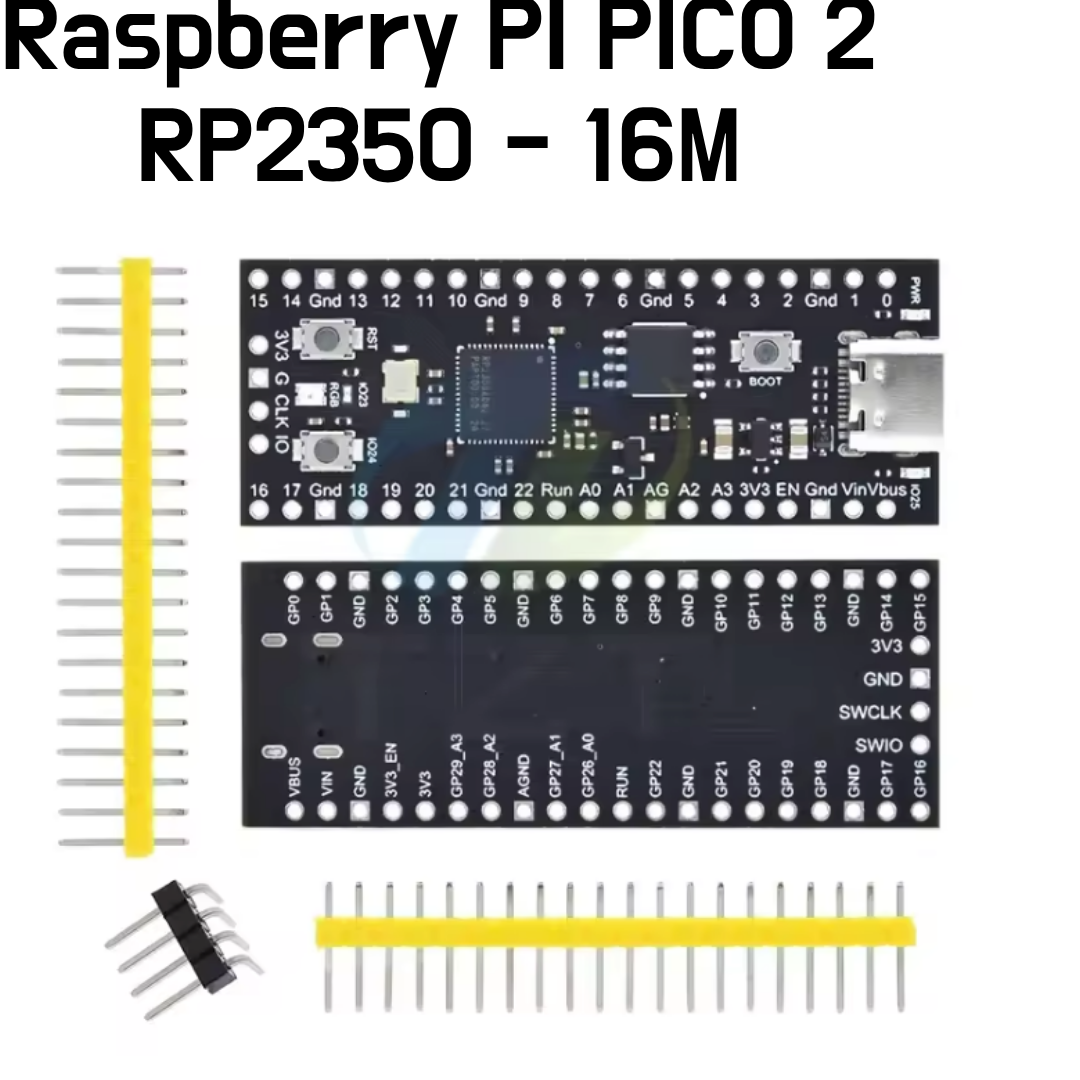

- 1 x Compatible Raspberry Pi Pico2  Board RP2350 - 16M

The RP2350 modules features the Raspberry Pi RP2350 chip, and is pin compatible with the Raspberry Pi Pico board.

Description:

• Dual Cortex-M33 or Hazard3 processors with frequencies up to 150MHz
• 120KB multi group high-performance SRAM
• Supports up to 16MB of off chip flash memory through a dedicated QSPI bus DMA controller
• Fully connected AHB crossbar switch
• On chip programmable LDO generates core voltage
• 2 x on-chip PLLs for generating USB and kernel clocks
• 30 GPIO pins, of which 4 can be used as analog inputs
• 2 x UART
• 2 x SPI controllers
• 2 x I2C controllers
• 24 x PWM channels
• USB 1.1 controller and PHY, supporting both hosts and devices
• 3 x Programmable IO (PIO) blocks, totaling 12 state machines

Info:
- Arduino IDE Board Selection: Raspberry PI PICO 2
