Package Included

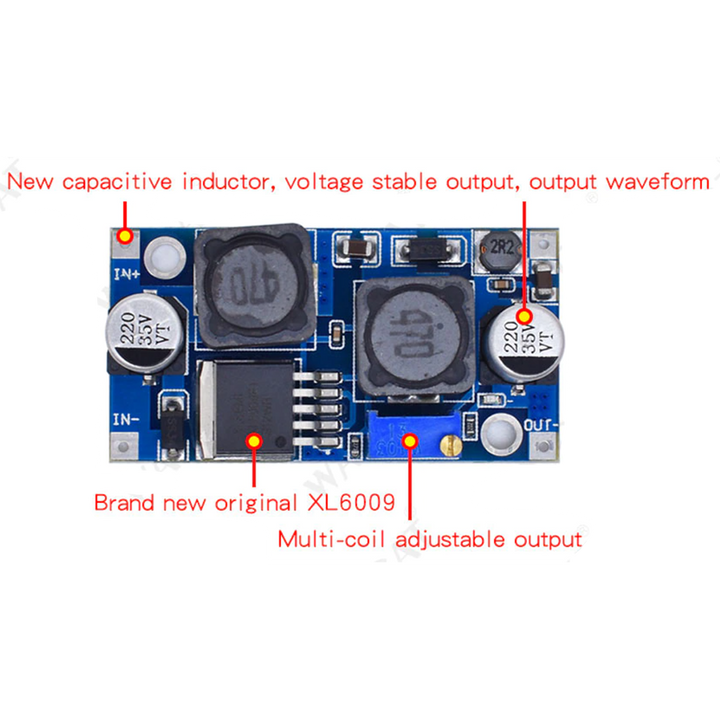

- 1 x DC-DC DC-DC Step Up Down Boost Buck Converter 5V~32V to 1.25V ~ 35V

Description

- Model Specification: Automatic Buck module
- Module Properties: Non- isolated BOOST
- Rectification: Non- Synchronous Rectification
- Input Range: 5V - 32V
- Output Range: 1.25V - 35V
- Input Current: 3A ( max ) , no-load 18mA (5V in , 8V out , no-load is less than 18mA. Higher the voltage, the greater load current. )
- Conversion efficiency: <94% ( the greater the pressure , the lower the efficiency )
- Switching frequency: 400KHz
- Output Ripple: 50mV ( the higher the voltage, the greater the current, the greater the ripple )
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 0.5%
- Operating Temperature: -40°C to +85°C
- Dimensions: 48 x 25 x 14mm ( L x W x H )
- The input voltage should not exceed the maximum input voltage.
- Maximum output voltage could be difference of around 5%.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
