Description:

- Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz
- WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
- Bluetooth: Bluetooth 5.0
- Ultra-low power consumption: deep sleep power consumption of about 43µA
- Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
- Chip model: ESP32C3FN4

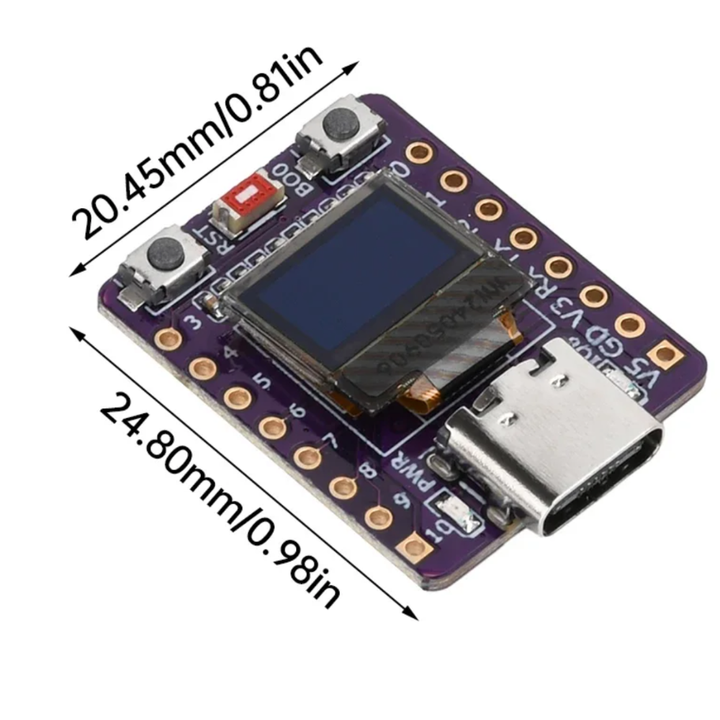

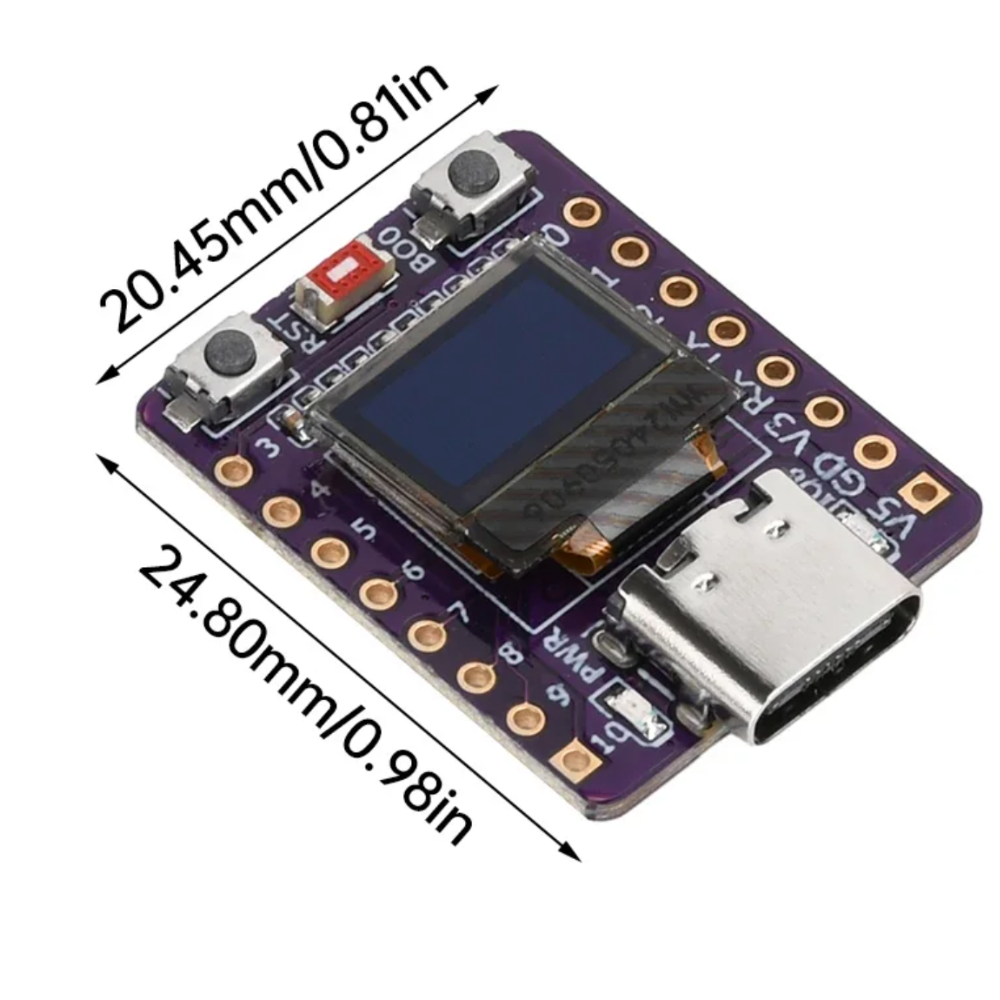

- Ultra-small size: As small as the thumb (22.52x18mm) classic shape, suitable for wearables and small projects
- Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup

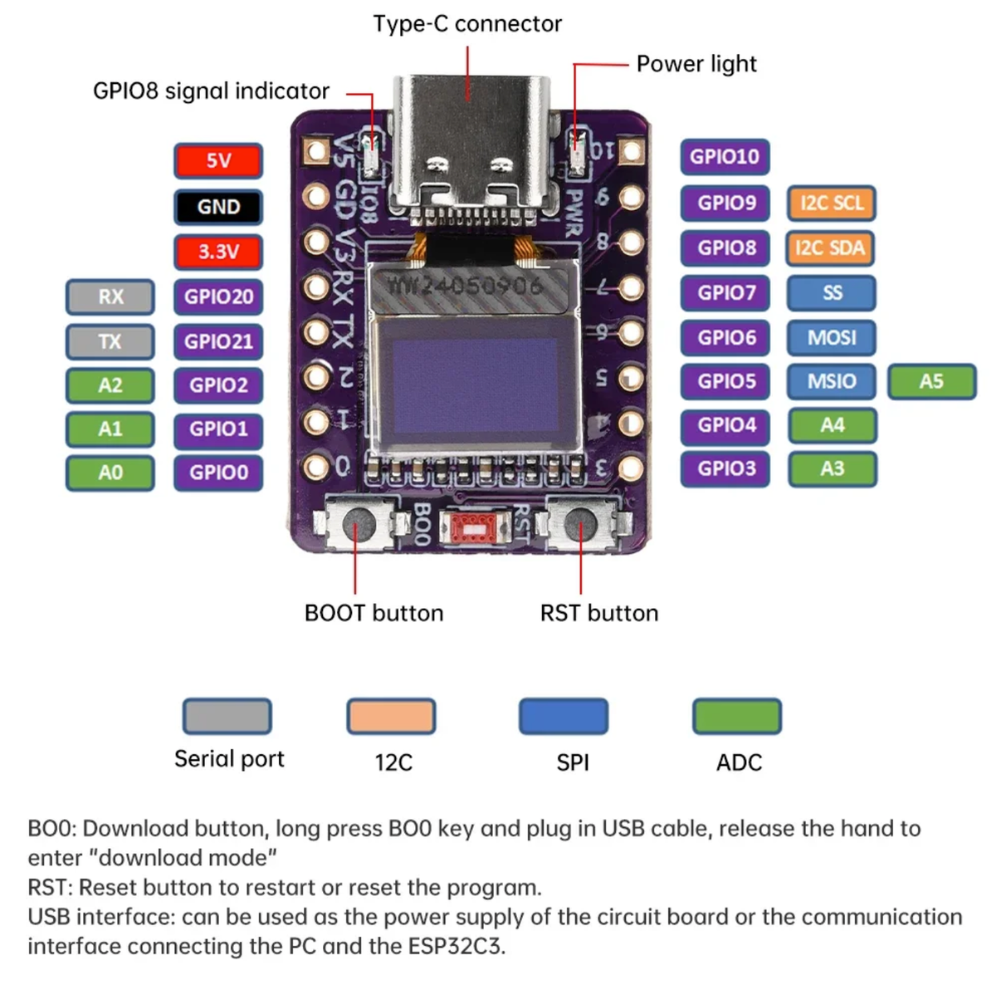

- Rich interface: 1x12C, 1xSPI, 2xUART, 11XGPIO(PWM), 4xADC
- Single-sided components, surface mount design 11.Onboard LED blue light: GPIO8 pin

Package Included:

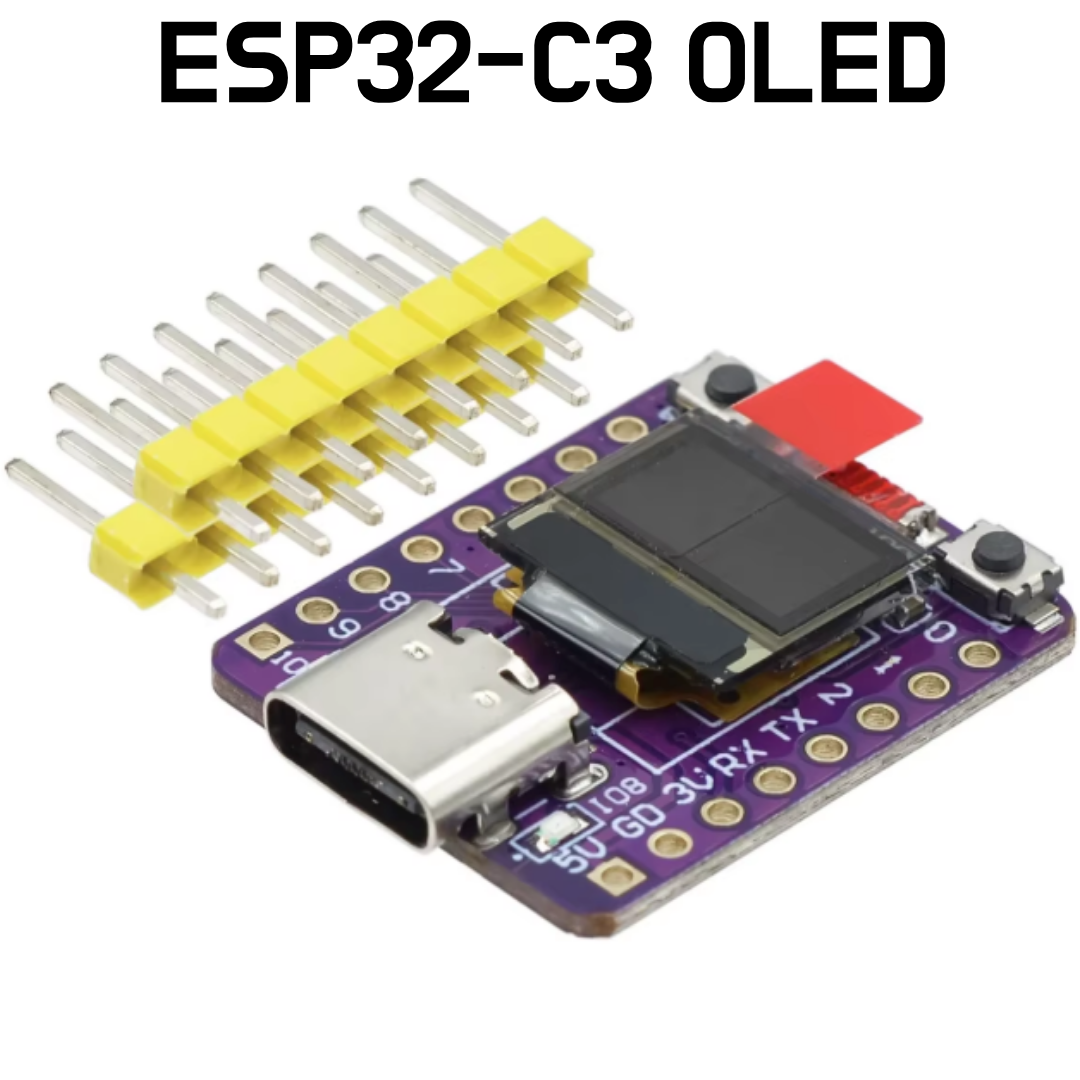

 - 1 x ESP32-C3 OLED Development Board

Reference

• https://makerworld.notion.site/ESP32-C3-Manual-1147152051be80b4a5d6d1cedfdd07b6?pvs=4

Video Reference
