Package Included

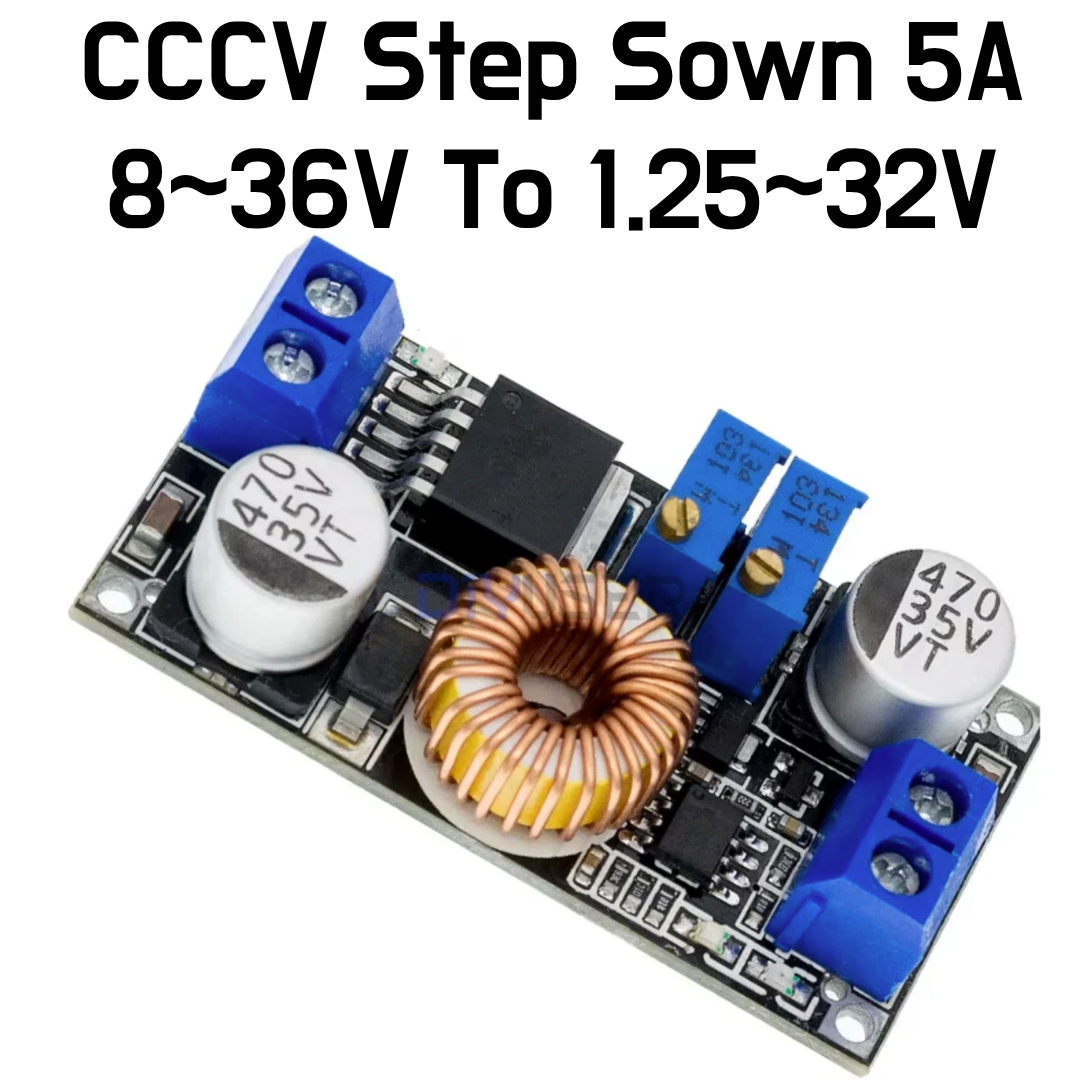

- 1 x DC-DC DC-DC Step Up Down Boost Buck Converter 8V~36V to 1.25V ~ 32V

Description

 - Module Properties: non-isolated constant current and voltage module
 - Rectification: non-synchronous rectification
 - Input voltage: 8V-36V
 - Output voltage: 1.25V-32V
 - Output current: adjustable maximum 5A
 - Conversion efficiency: 95% (the highest)
 - Switching frequency: 180KHz
 - Output ripple: 50mV (max) 20M bandwidth
 - Load Regulation: ± 0.5%
 - Voltage Regulation: ± 2.5%
 - Operating Temperature: -40°cto +85°c
 - Load Regulation: ± 0.5%
 - Voltage Regulation: ± 2.5%
 - Operating Temperature: -40 °c to +85 °c
 - Size: 5.2 x 2.65 x 1.4cm (L x W x H)

For Lithium Charger, Solar Panel, Power Supply, LED driver

NOTE: The trimpot on this module may need several turns to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
