escription:

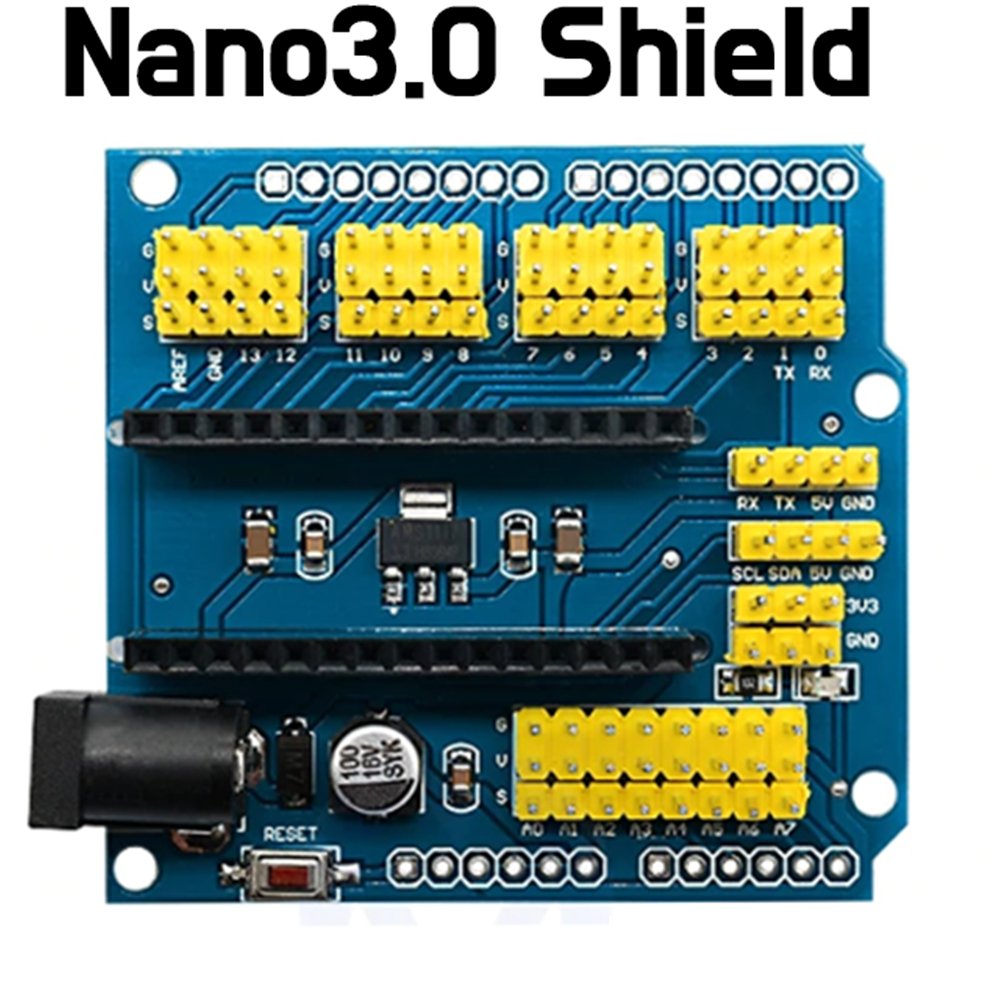

The Arduino Nano 3.0 Prototype Shield I/O Expansion Board is an expansion board that is designed to work with the Arduino Nano 3.0 microcontroller board. It provides an easy and convenient way to connect various sensors and modules to the Arduino board.

The Prototype Shield features a range of input/output interfaces, including digital and analogue pins, I2C and SPI interfaces, and a built-in 5V regulator. Additionally, it includes a reset button and a power LED indicator for monitoring and operation.

With the Prototype Shield, users can easily connect sensors and modules like temperature sensors, humidity sensors, sound sensors, and many others to the Arduino Nano board, without the need for complex wiring or soldering. This makes it an ideal solution for students, hobbyists, and professionals who want to quickly prototype and test their electronics projects.

Overall, the Arduino Nano 3.0 Prototype Shield I/O Expansion Board is a versatile and useful expansion board that provides an easy and effective way to add sensors and modules to an Arduino Nano board and is perfect for anyone looking to experiment and develop their own electronics projects.

Size: 56mm(L) * 54mm(W)

Package Included:

- 1 x Nano 3.0 Shield Expansion Development Board

Video Reference

Part 1

Part 2
