Package Included

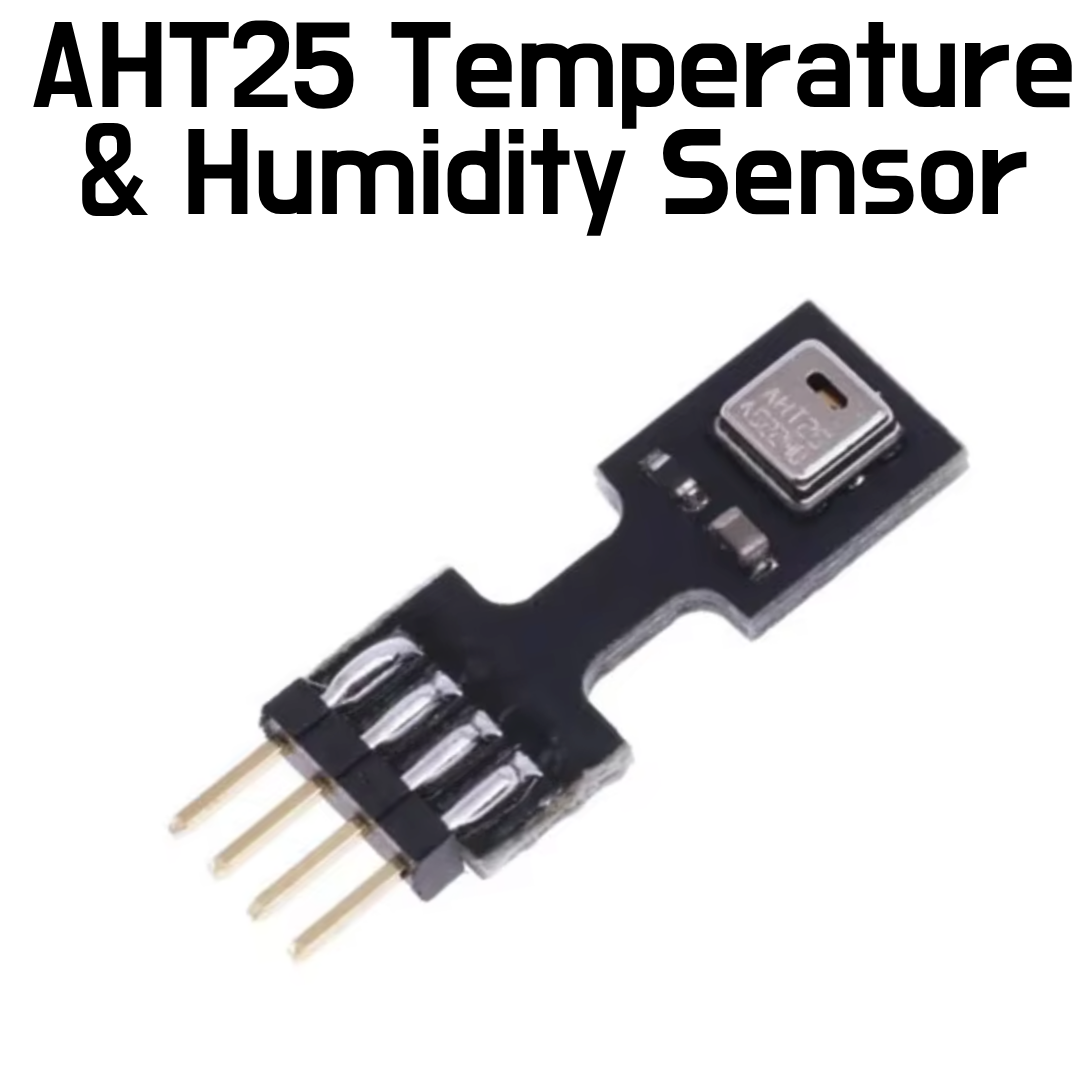

- 1 x AHT25 Precision Temperature and Humidity Sensor

Features

• Digital temperature and humidity sensor
• I²C communication interface
• Factory calibrated
• High accuracy and good long-term stability
• Wide 2.2–5.5V supply voltage
• Suitable for 3.3V and 5V systems

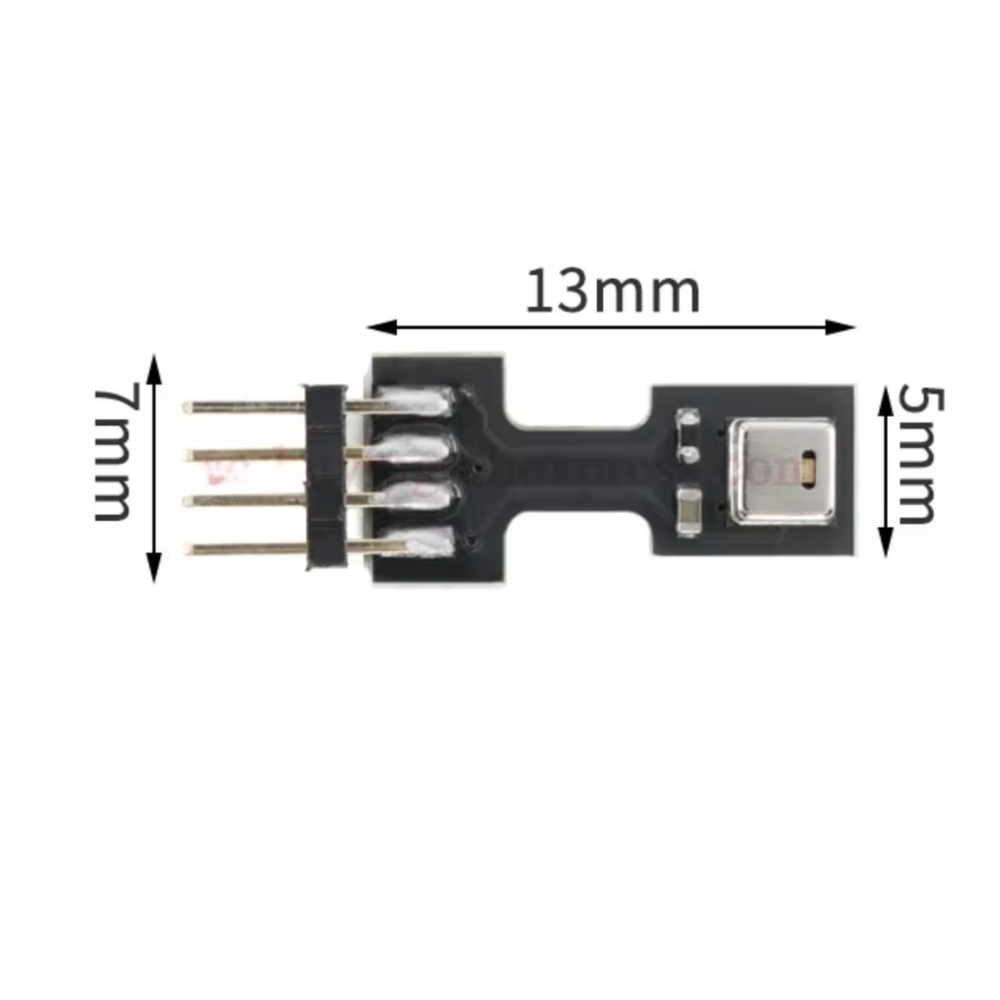

• Compact plug-in module design

Specifications

• Sensor: AHT25
• Measurement: Temperature and Relative Humidity
• Temperature Range: -40°C to +80°C
• Humidity Range: 0–100% RH
• Temperature Accuracy: ±0.3°C
• Humidity Accuracy: ±2% RH @ 25°C
• Temperature Resolution: 0.01°C
• Humidity Resolution: 0.024% RH
• Supply Voltage: 2.2–5.5V DC
• Interface: I²C
• Typical Measurement Current: 980µA
• Sleep Current: 250nA
• Humidity Response Time: <8 seconds
• Package: SIP-4
• Connector Pitch: 1.27mm

Reference

• https://github.com/enjoyneering/AHT10

Video Reference
