Package Included

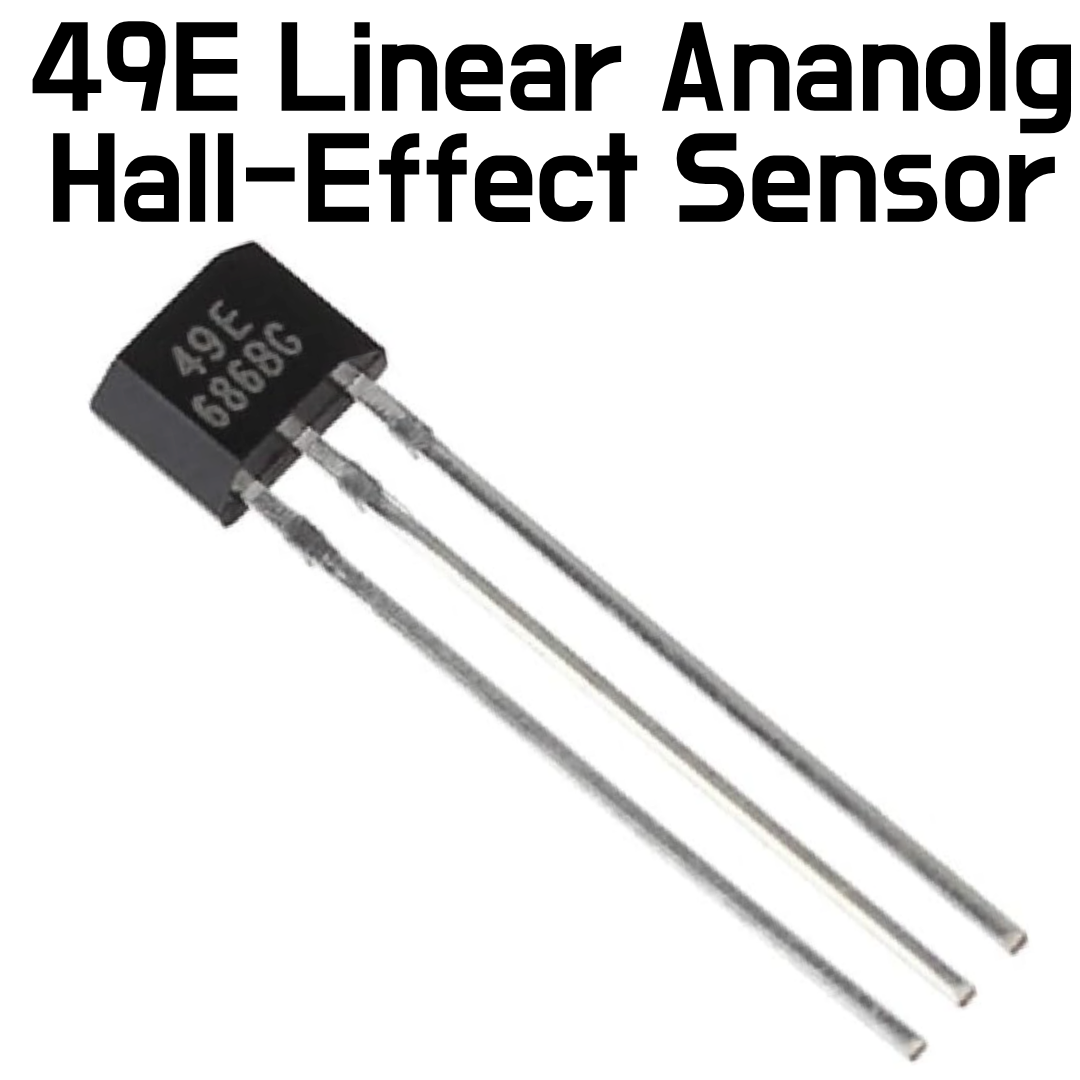

- 1 x 49E Linear Ananolg Hall-Effect Sensor

Features

• Linear analogue Hall-effect sensor
• Detects both magnetic field strength and polarity
• Output voltage varies with the magnetic field
• Quiescent output: approximately VCC/2
• Works with 3.3V and 5V systems
• Compact TO-92 package
• Suitable for Arduino, ESP32 and other microcontrollers

Specifications

• Sensor Type: Linear Hall Effect Sensor
• Output: Analogue Voltage
• Supply Voltage: 3.0–6.5V DC
• Quiescent Output: VCC/2
• Sensitivity: Approx. 1.4–1.6 mV/Gauss
• Magnetic Range: ±650 Gauss minimum, approximately ±1000 Gauss typical
• Output Voltage: Approx. 0.8V to VCC − 0.8V
• Supply Current: Approx. 3.5mA typical
• Operating Temperature: -40°C to +85°C
• Package: TO-92
• Pins: VCC, GND, OUT
