Package Included

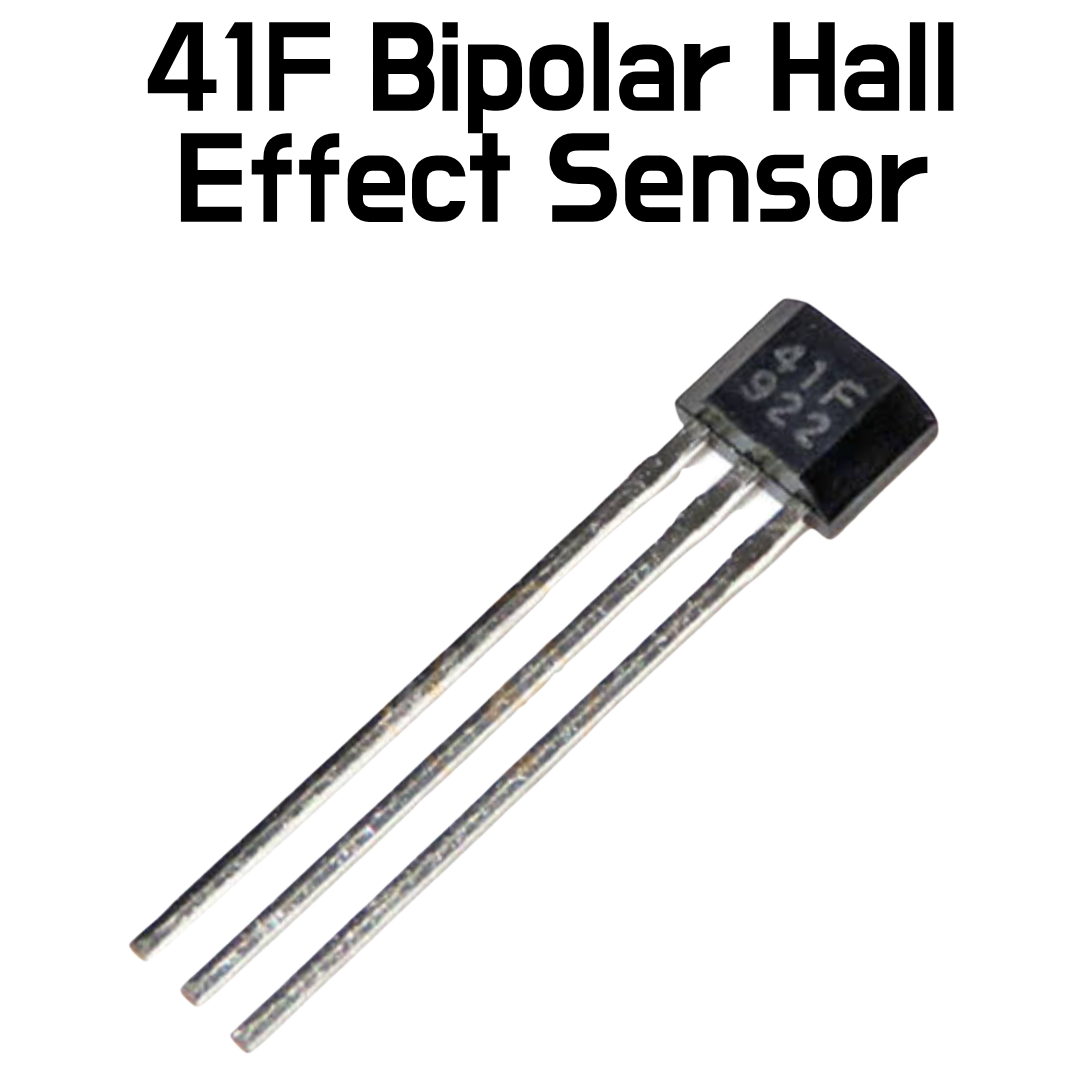

- 1 x 41F Bipolar Hall Effect Sensor

Features

• Bipolar Hall-effect latch sensor
• Digital ON/OFF output
• Detects alternating North and South magnetic poles
• Open-collector output
• Wide supply voltage range
• Fast response for speed and RPM sensing
• Compact TO-92S package
• Suitable for Arduino, motor control and embedded applications

Specifications

• Sensor Type: Bipolar Digital Hall Effect Latch
• Supply Voltage: 4.5–24V DC
• Output Type: Open Collector
• Output Current: Up to 20mA
• Magnetic Operating Point: Approx. 40–150 Gauss
• Magnetic Release Point: Approx. -150 to -40 Gauss
• Operating Temperature: -40°C to +150°C
• Package: TO-92S
• Pins: VCC, GND, OUT
• Marking: 41F
