Package Included

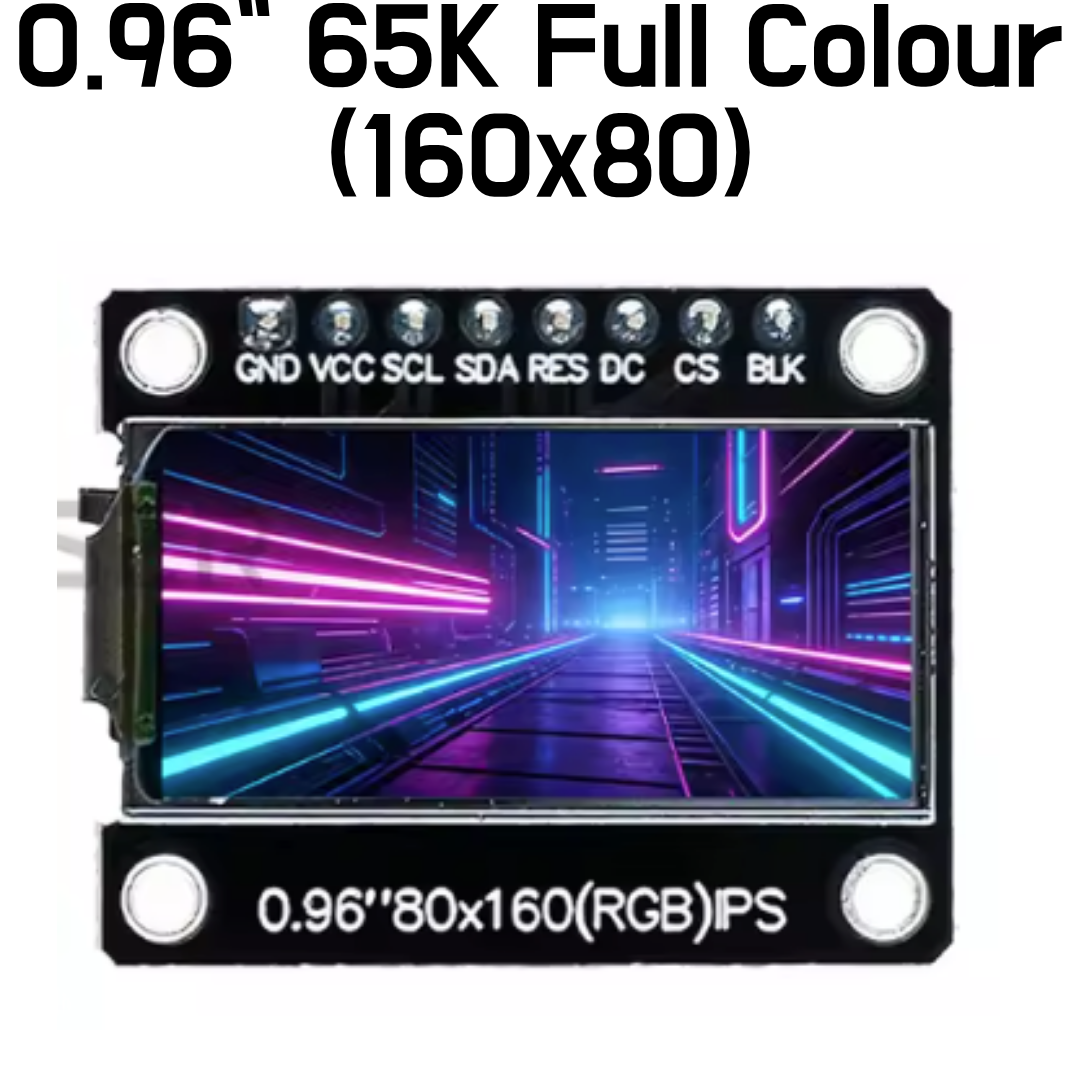

- 1 x 0.96" 65K FUll Colour IPS TFT LCD Display

Description:

- Display Type: IPS TFT LCD
- Screen Size: 0.96 inch
- Resolution: 80 × 160 pixels
- Color Depth: 65K colors (RGB565)
- Viewing Angle: Wide-angle IPS (near 178°)
- Driver IC: ST7735
- Interface: 4-wire SPI

Electrical Characteristics

- Operating Voltage (VCC): 3.3 V
- Logic Level: 3.3 V
- Backlight Type: White LED
- Backlight Control: BLK pin (supports PWM dimming)

Pin Description:

GND – Ground
VCC – Power Supply (3.3 V)
SCL – SPI Clock (SCK)
SDA – SPI Data (MOSI)
RES – Hardware Reset
DC – Data / Command Select
CS – Chip Select
BLK – Backlight Control

Backlight Control

BLK = HIGH (3.3 V): Backlight ON
BLK = LOW (0 V): Backlight OFF
PWM Signal: Brightness adjustment supported

Reference

• https://www.youtube.com/watch?v=3lKB24arTRM

Video Reference
