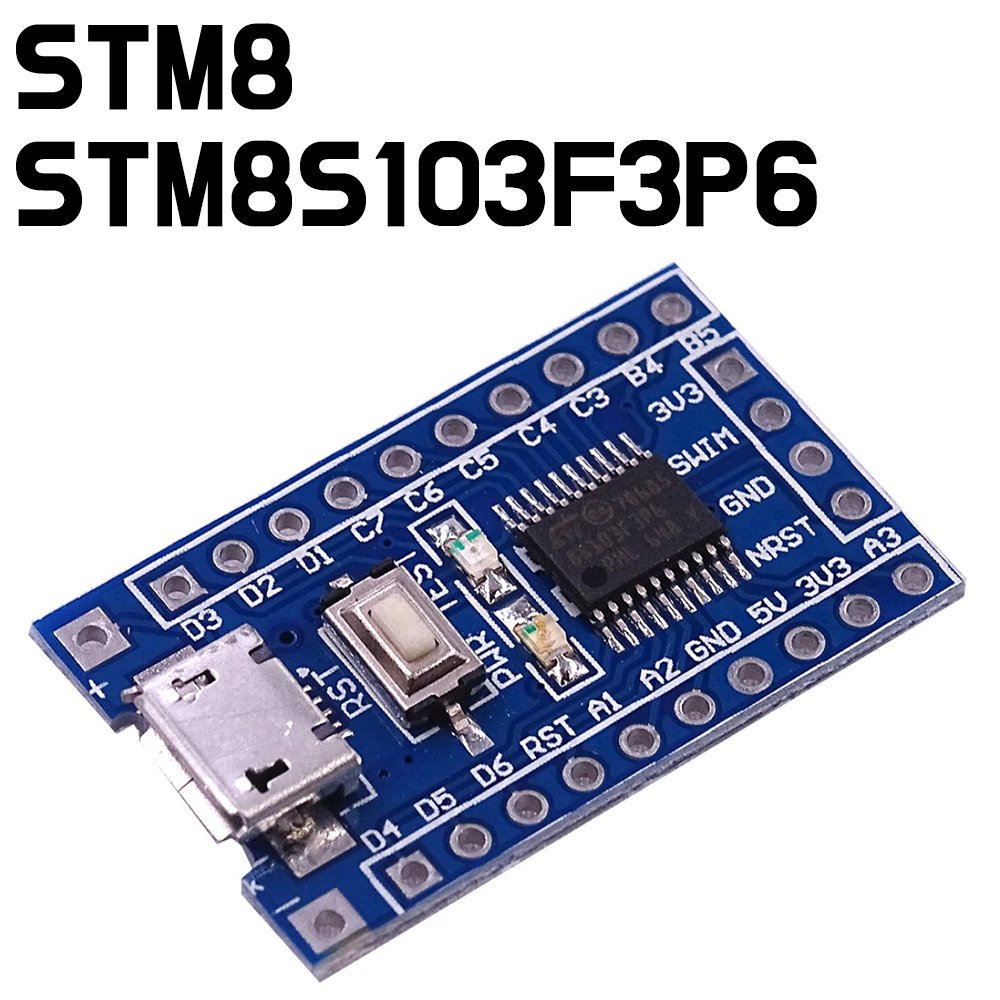

Name: STM8 Minimum System Development Board- STM8S103F3P6
Brand: ePartners NZ
SKU: SP0102
Price: 5.99 NZD
Availability: InStock

STM8 Minimum System Development Board - STM8S103F3P6 - ePartners

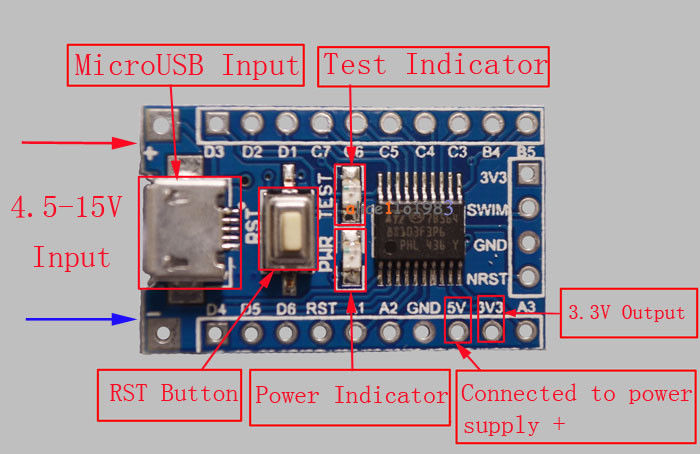

STM8 Minimum System Development Board- STM8S103F3P6 – board features

Default

Price

Free shipping on all orders over $100

Secure payments

Low stock - 3 items left
Inventory on the way

Add $100.00 more for free shipping

Order by 10:30am weekdays — ships same day
30-day change-of-mind returns
12-month warranty on every product

Add these too

Package Included

- 1 x STM8 Minimum System Development Board- STM8S103F3P6

Description:

- CPU: STM8S103F3P6
- Clock: 16MHz, internal oscillator
- Flash: 8kB
- RAM: 1kB
- EEPROM: 640 byte
- I/O voltage: 3.3V
- GPIO: 14
- PWM: 4 (up to 7 via alternate mapping)
- ADC: 5 channel, 10 bit
- Programming interface: SWIM, no serial bootloader
- USB connector: mini, power only (data lines not connected)

Reference

https://circuitdigest.com/microcontroller-projects/getting-started-with-stm8s-using-stvd-and-cosmic-c-compiler

Video Reference
