Package Included

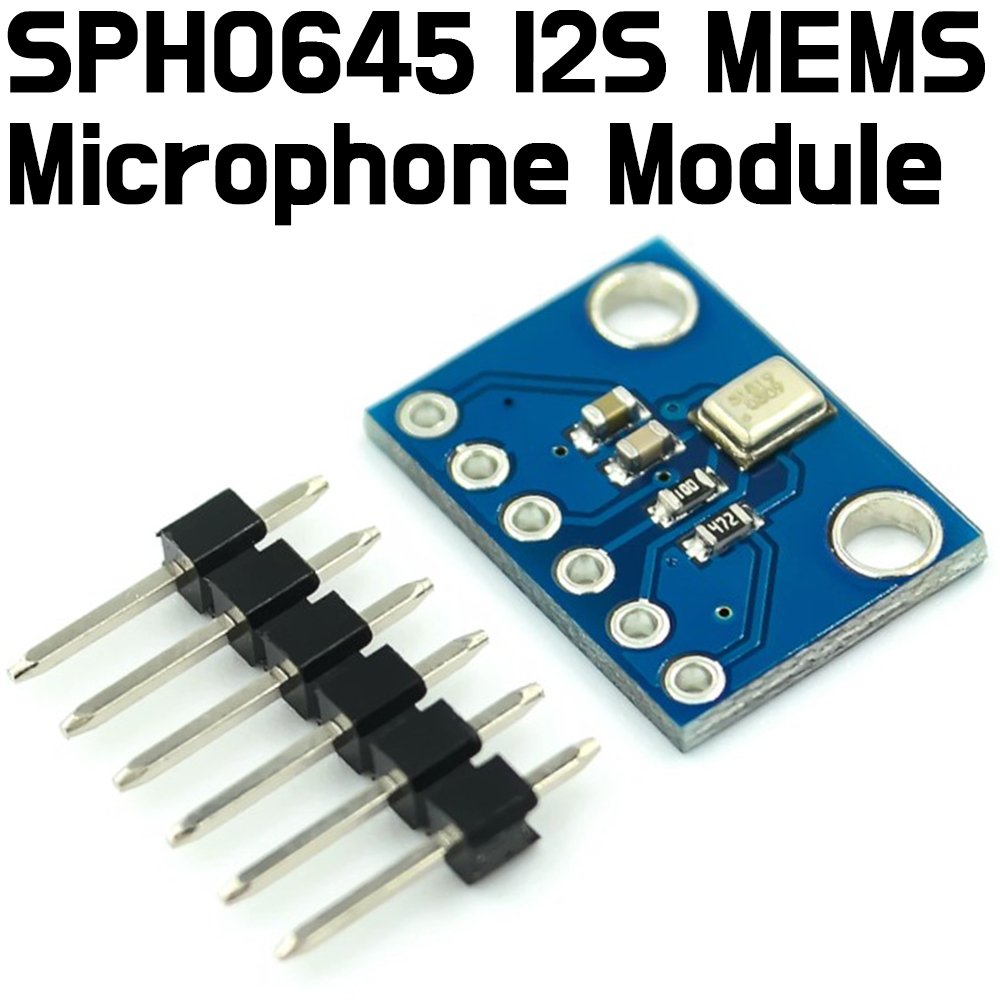

- 1pcs x SPH0645 I2S MEMS Microphone Breakout Sensor

Description:

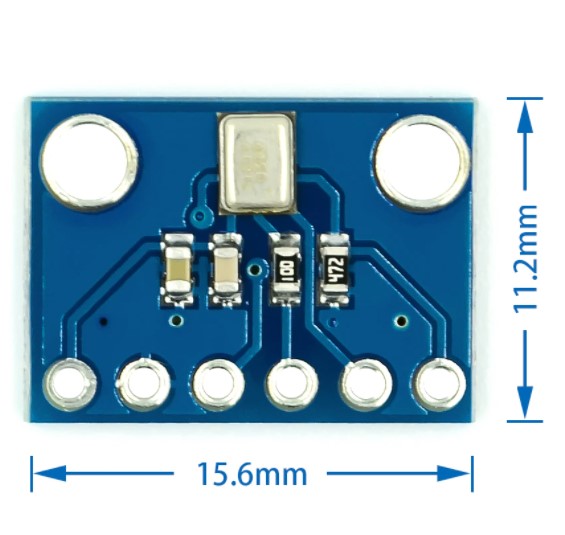

- SPH0645 I2S MEMS Microphone Breakout Board 50Hz-15KHz
- The I2S is a small, low cost MEMS mic with a range of about 50Hz - 15KHz, good for just about all general audio recording/detection.
- Instead of an analog output, there are three digital pins: Clock, Data and Left-Right (Word Select) Clock.
- When connected to your microcontroller/computer, the 'I2S Master' will drive the clock and word-select pins at a high frequency and read out the data from the microphone. No analog conversion required.
- Input/ Llogic: 3.3V
-

Reference
- https://bit.ly/SPH0645-datasheet
- https://learn.adafruit.com/adafruit-i2s-mems-microphone-breakout?view=all

#SP6004

Standard: $5.99

Rural: $8.99
