Package Included

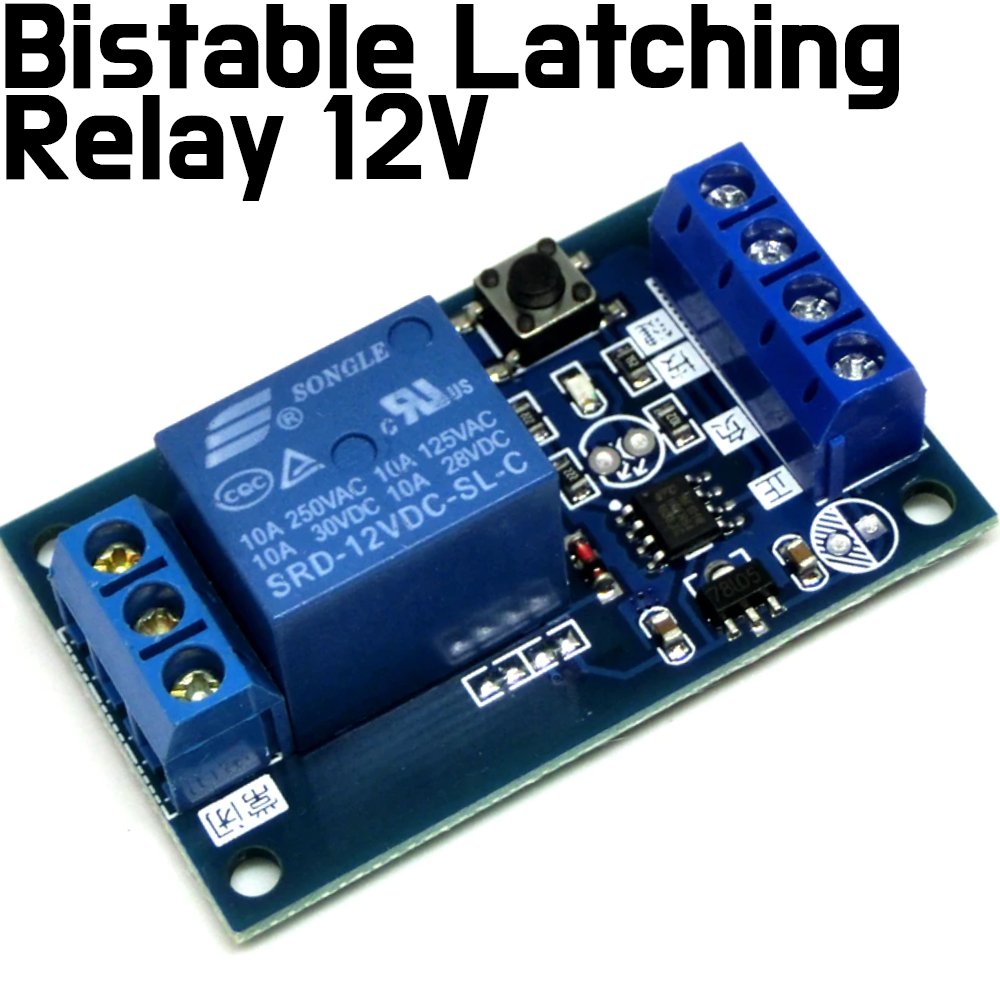

- 1pcs x Bistable Latching Relay 12V

Description:

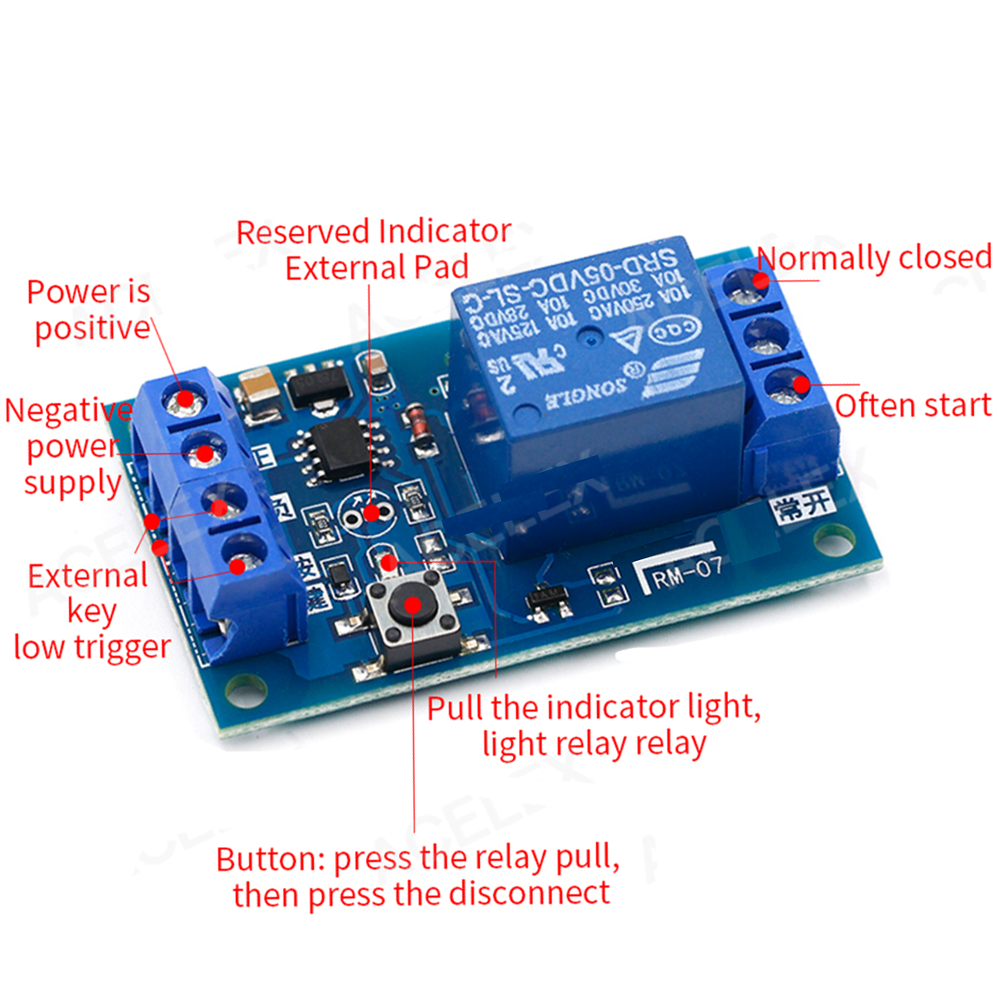

- Press the button on the board or the external button to let the relay module pull or close. Press the pull button and then press the button to trigger the low level. The relay is off when the power is turned back on.
- The maximum current of the secondary output of the relay is 10A, which means that the maximum operating current of the controlled circuit or equipment cannot be greater than 10A, and it can be connected to the normally open or normally closed end according to its own needs.
- Module size: length x width x height = 52.8mm x 32mm x 18mm
- One-button two-state relay module, the power supply is negatively connected and will be burned off, no voltage reverse protection
- Module size: length x width x height = 52.8mm x 32mm x 18mm

Our product is intended for DIY, hobbyist, and school projects only, and cannot be used for commercial or hazardous purposes such as medical, life-saving, life-sustaining, coal mine or oil depots.
