Description

Get the XH-M401 DC-DC Step Down Buck Converter for your industrial or DIY projects. Compact, intelligent, and versatile. Order now and save 10% on your purchase.

XH-M401 DC-DC Buck Converter

Compact and Powerful

Miniature design with maximum performance

The XH-M401 DC-DC Step Down Buck Converter is a miniature yet powerful device that enables voltage conversion with high efficiency. With a compact size of only 22mm x 17mm, this buck converter can deliver an output of up to 5A with an input voltage range of 4V to 38V. Its advanced chip technology and stable performance make it an ideal choice for various industrial and DIY projects. Whether you need to step down the voltage for your LED lighting or power your motors, this converter can handle it all.

Intelligent and User-Friendly

Smart features for a hassle-free experience

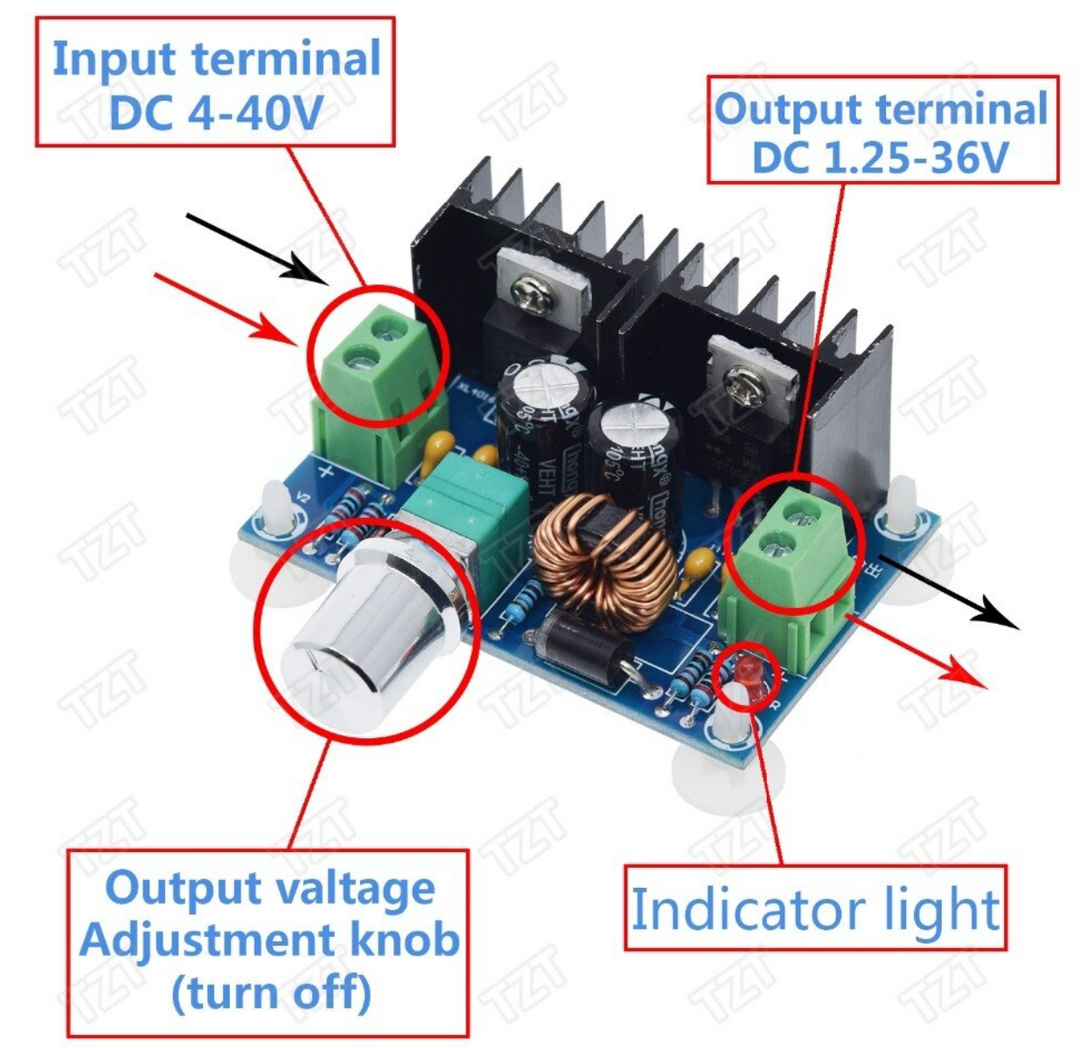

Equipped with intelligent control functions, the XH-M401 DC-DC Step Down Buck Converter offers a user-friendly experience. Its input voltage detection and automatic output voltage adjustment ensure stable and reliable performance. You can also easily adjust the output voltage with the onboard potentiometer. The converter also comes with over-temperature protection and short-circuit protection, making it a safe and secure option for your projects. Whether you are a professional engineer or a DIY enthusiast, this converter is an excellent choice for your voltage conversion needs.

Versatile and Durable

Built to last for various applications

The XH-M401 DC-DC Step Down Buck Converter is built to last with its high-quality components and robust design. It can operate in a wide temperature range of -40°C to +85°C, making it suitable for various industrial and outdoor applications. It also features a metal shell that provides excellent heat dissipation and electromagnetic interference protection. The converter is highly versatile and can be used in various applications, such as automotive, communications, and home appliances. With its durable construction and reliable performance, this converter is an investment that will last for years to come.

Specification

- Voltage regulating mode: PWM modulation
- Input voltage: DC4-40V
- Output voltage: DC1.25-36V
- Max output current: 8A (need Fan if over 5A for long-time use)
- Max power: 200W
- Conversion efficiency: 94%
- Switching frequency: 180KHZ
- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

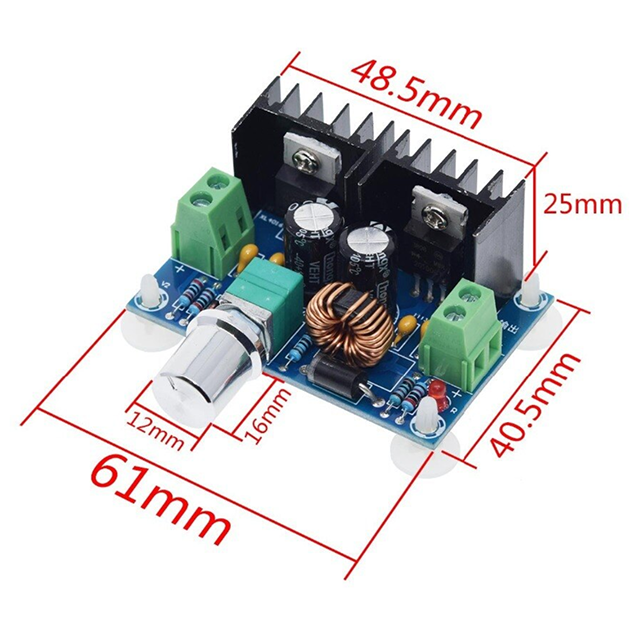

- Size: 60mm(L) * 40mm(W)

Package Included

- 1pc x XH-M401 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 PWM Adjustable 4-40V To 1.25-36V Step Down Board 8A 200W

Tutorials

https://www.youtube.com/watch?v=m_YjIRopeDI

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
