Package Included

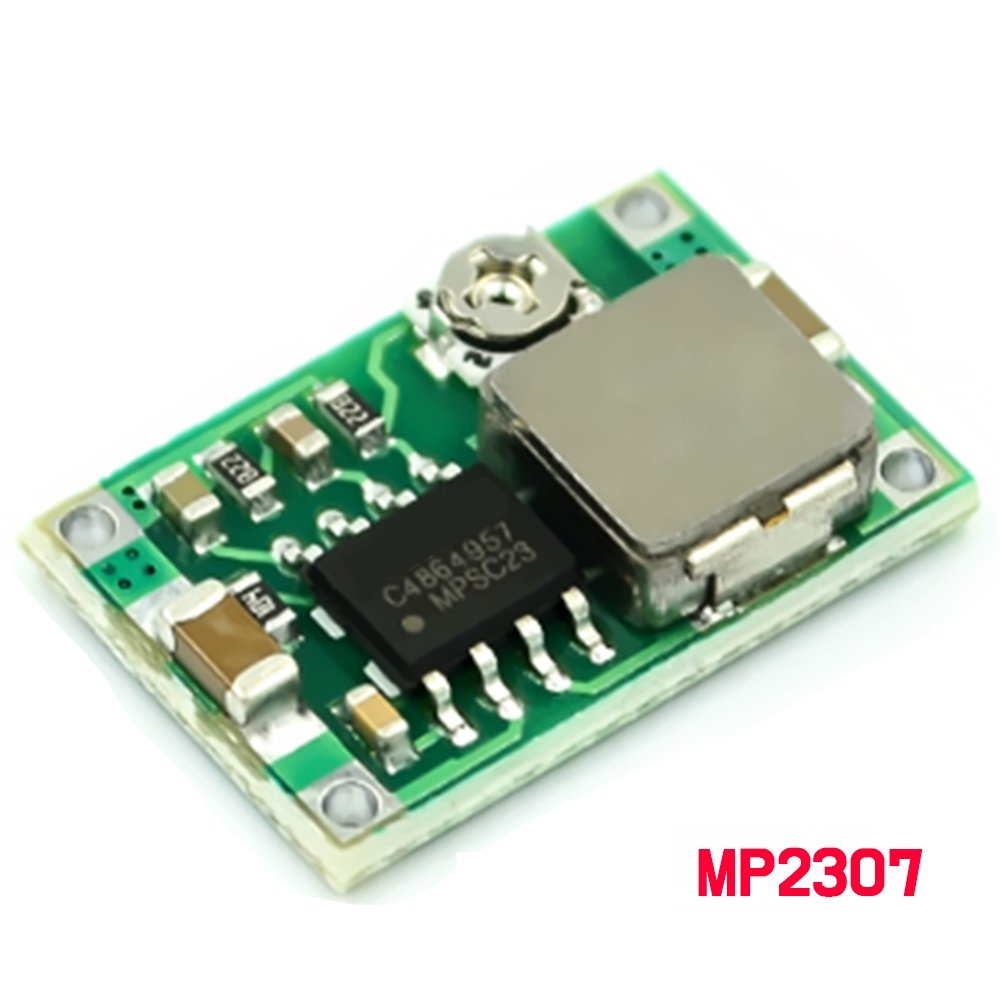

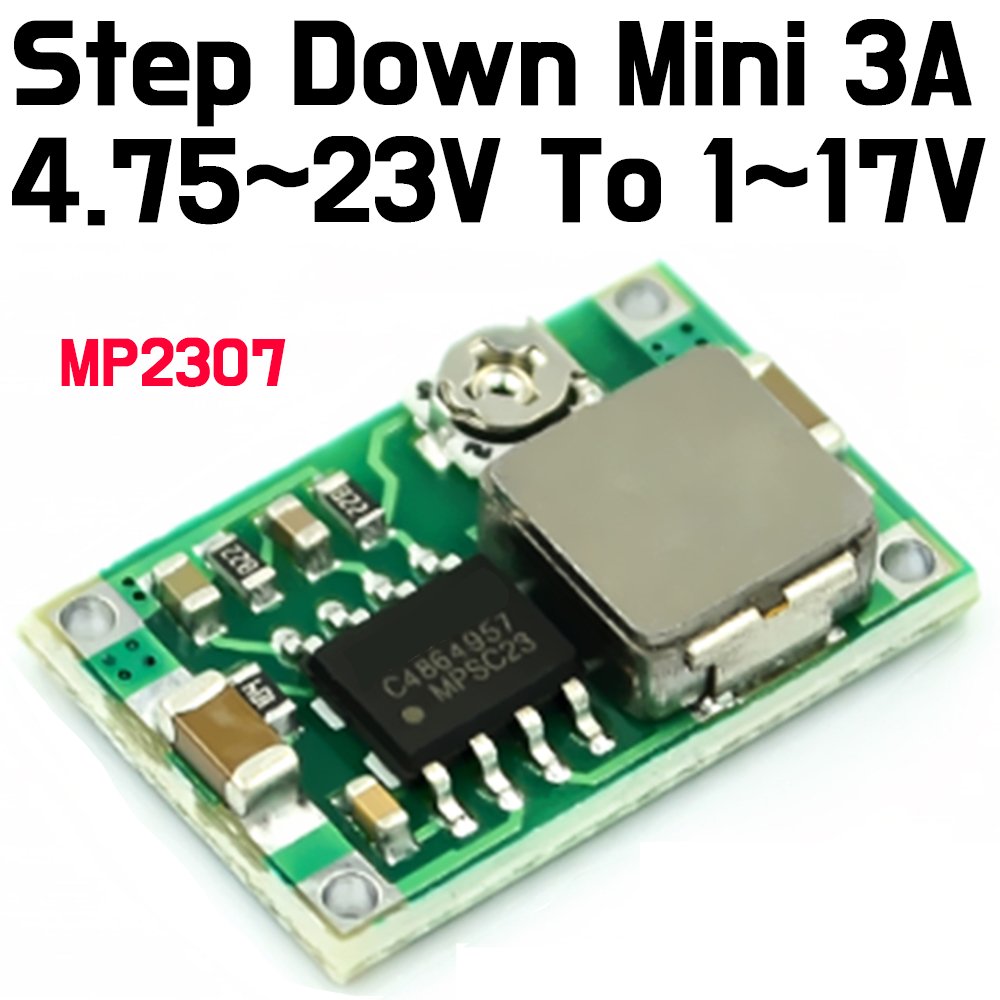

- 1pcs x DC-DC Buck Regulator DC Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm

Description:
- MP2307
- Rectification: Synchronous rectification
- Input voltage: DC 4.75V-23V
- Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
- Output current: Rated current 1.8A (3A MAX, can not be prolonged)
- Conversion efficiency:96%(highest)
- Switching Frequency: 340KHz.
- Output ripple:30mV(no-load)
- Load regulation:±0.5%
- Voltage regulation:±2.5%
- Operating Temperature: Industrial (-40 ~ +85)
- Short circuit protection: No(Please do not short-circuit)
- Input Reverse protection: No(Can not be reversed)

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

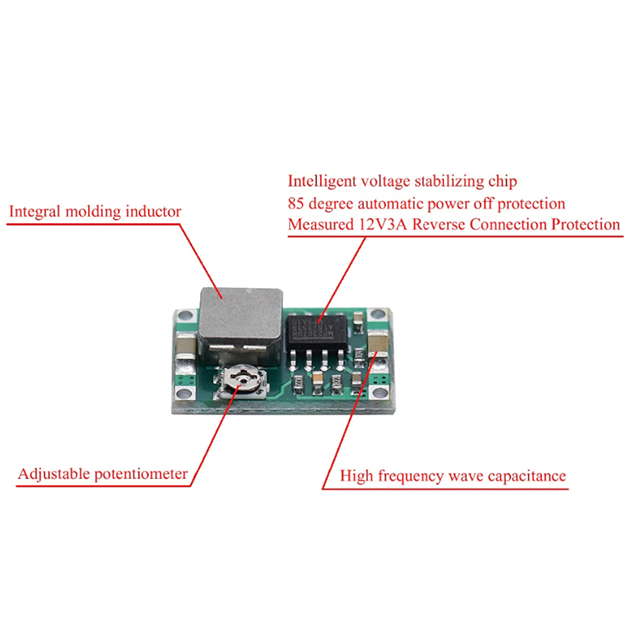

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
