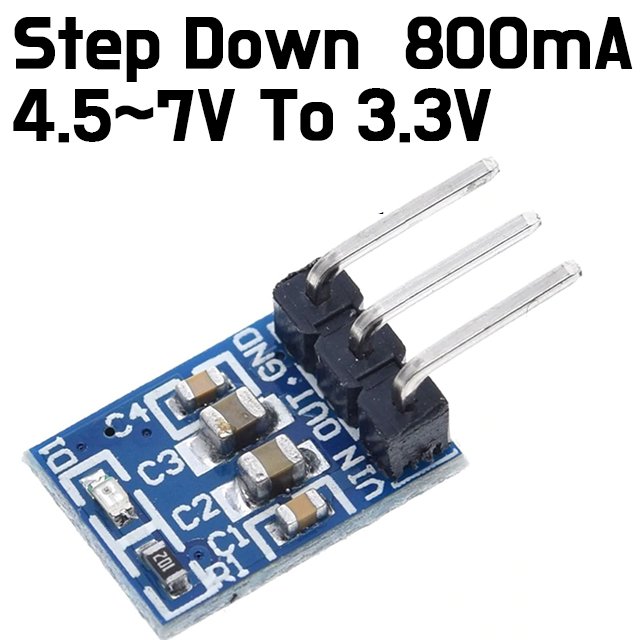

Name: Step Down Linear Voltage Regulator DC Converter - AMS1117
Brand: ePartners NZ
SKU: VC2009
Price: 1.99 NZD
Availability: InStock

Step Down Linear Voltage Regulator DC Converter - AMS1117 - ePartners

Step Down Linear Voltage Regulator DC Converter - AMS1117 – dimensions

Default

Price

Free shipping on all orders over $100

Secure payments

In stock, ready to ship
Inventory on the way

Add $100.00 more for free shipping

Order by 10:30am weekdays — ships same day
30-day change-of-mind returns
12-month warranty on every product

Add these too

Package Included

- 1 x AMS1117 4.5V ~ 7V to 3.3V For DC-DC Step-Down Power Supply Module Voltage Regulator

Description

- Input: DC 4.5V--7V (input voltage to output voltage must be greater than 1V or more.)
- Output: 3.3V, 800mA (load current must not exceed 800ma)

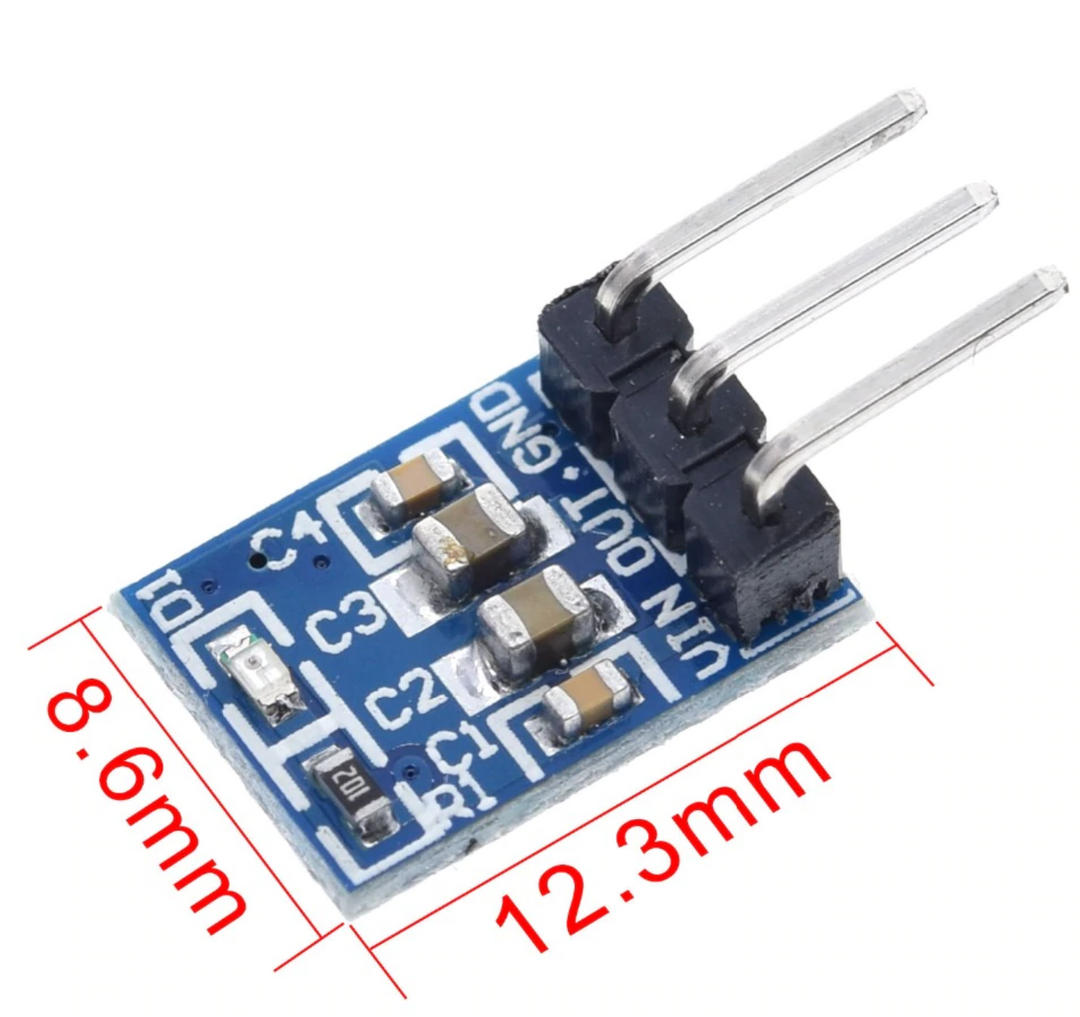

- PCB board size: 8.6mm x 12.33mm
- Power indicator light (red)

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
