Step Down Buck DC Converter with LCD Display+ Case

Step Down Buck DC Converter with LCD Display+ Case - ePartners
Step Down Buck DC Converter with LCD Display+ Case
Step Down Buck DC Converter with LCD Display+ Case - ePartners
Step Down Buck DC Converter with LCD Display+ Case - ePartners

Step Down Buck DC Converter with LCD Display+ Case

Default
Regular price $14.99
/
  • Free shipping on all orders over $100
  • Secure payments
  • Low stock - 4 items left
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included

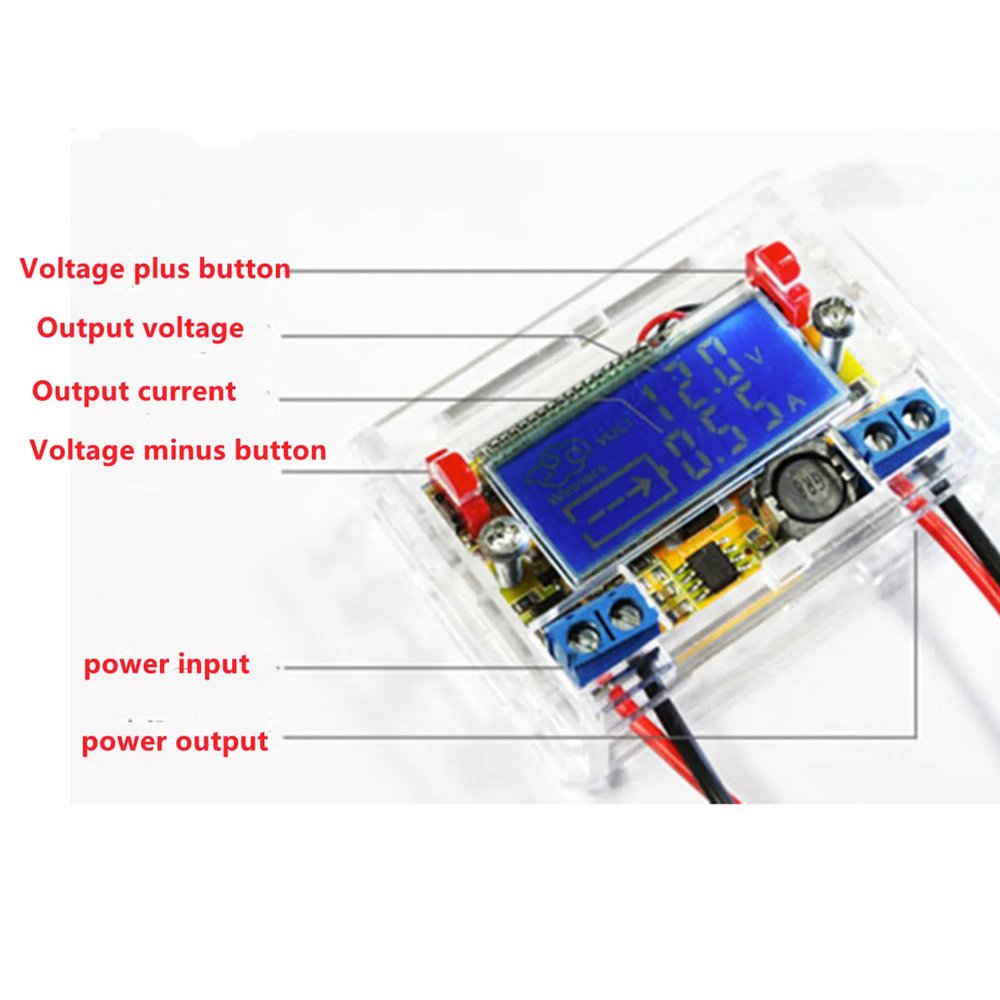

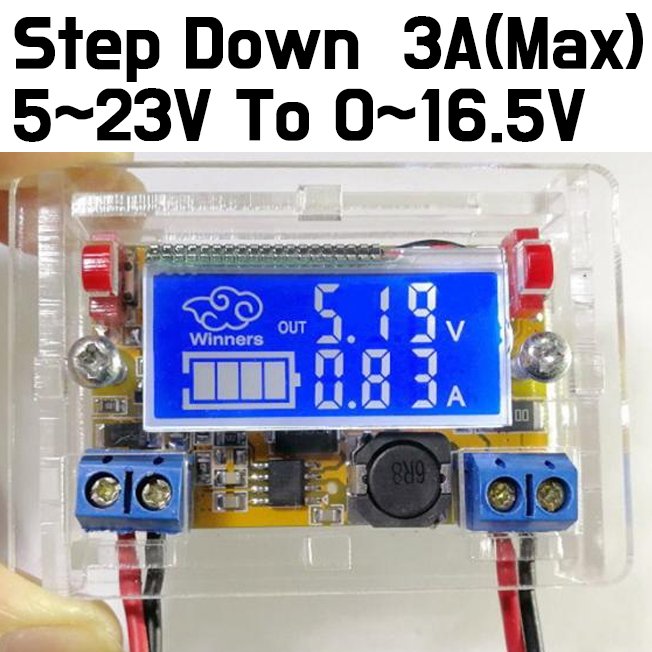

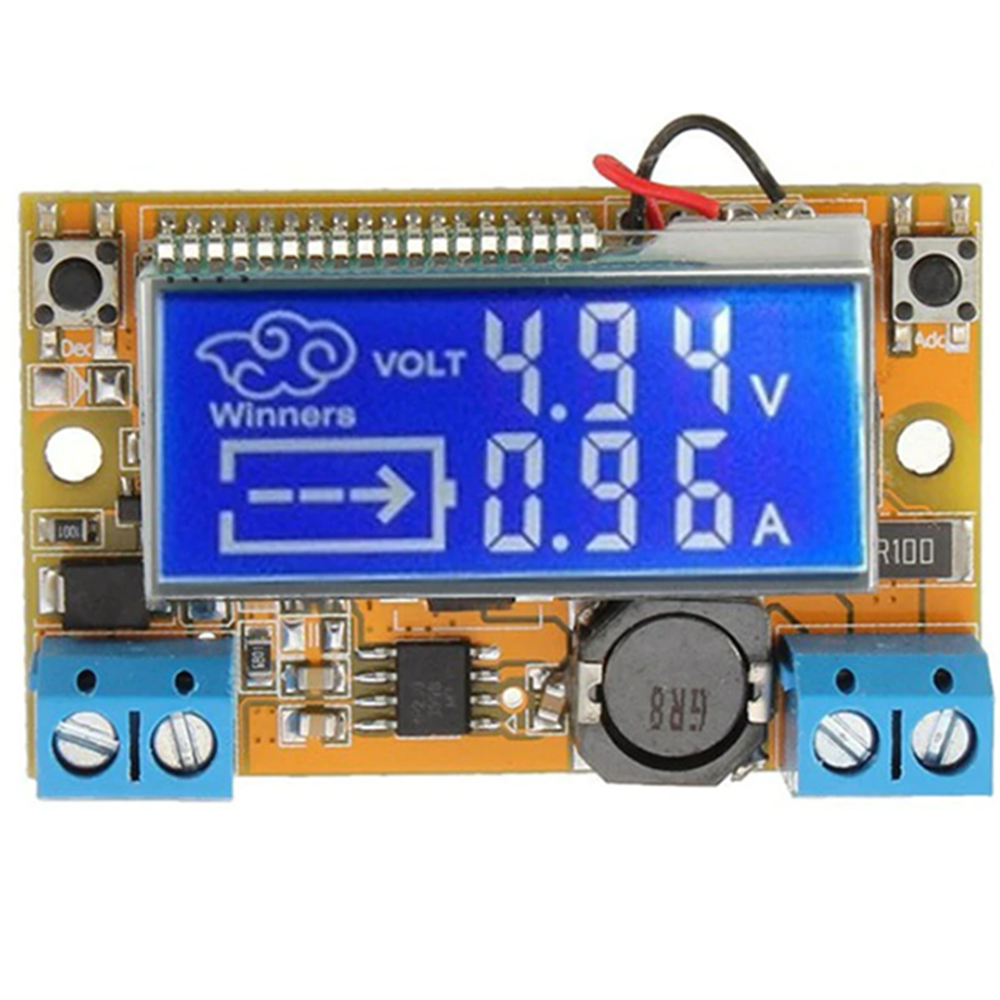

- 1pcs x DC-DC 5-23V To 0-16.5V Step Down Power Supply Adjustable Voltage Current LCD Display Step Down buck converter Module

 - 1pcs x case




Product Description
- Converter Type: DC-DC
- Input voltage: 5 ~ 23V (better voltage 20V)
- Output voltage: 0V ~ 16.5V (continuously adjustable)
- For peak current: 3A
- Motherboard Size: approx. 50 x 30 x 12 mm (L x W x H)
- Display Module: STN LCD
- LCD Size: approx. 37.5 x 17.0 mm (L x W)
- LCD Accuracy: 1%
- Conversion efficiency: 95%
- Load regulation (I): <= 0.8%
- Voltage regulation (U): <= 0.8%

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
