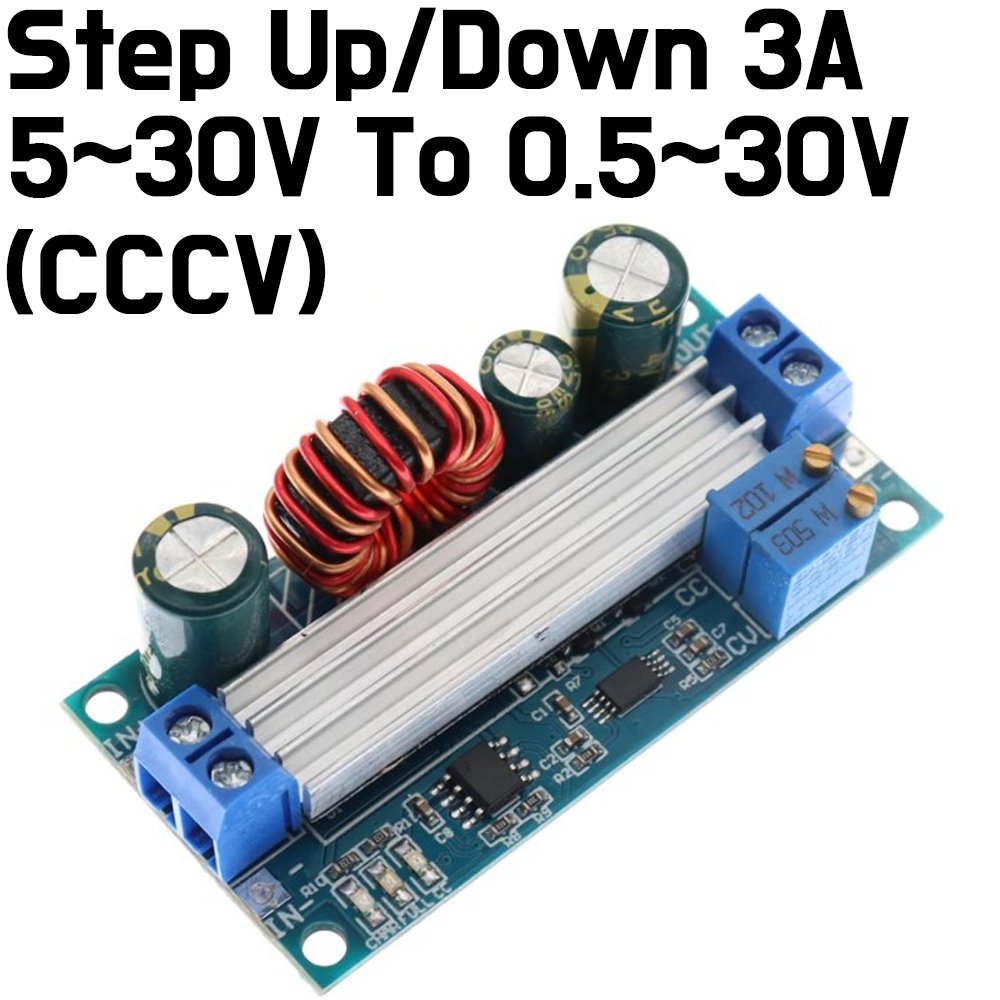

Step Up / Down Buck Boost DC Converter

Step Up / Down Buck Boost DC Converter
Step Up / Down Buck Boost DC Converter

Step Up / Down Buck Boost DC Converter

Regular price $14.99
  • Free shipping on all orders over $100
  • Secure payments
  • Low stock - 10 items left
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included
- 1pcs x Adjustable Step Up Step Down Module CC CV Power Supply Module


- Input voltage: 5-30V
- Output voltage: 0.5-30V
- Output current: can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation
- Output power: natural heat dissipation 35W, enhanced heat dissipation 60W
- Conversion efficiency: about 88%
- Output short circuit protection: yes
- Input reverse connection protection: none
- Working frequency: 180KHZ
- Size: 68*32mm, mounting hole diameter 3mm

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

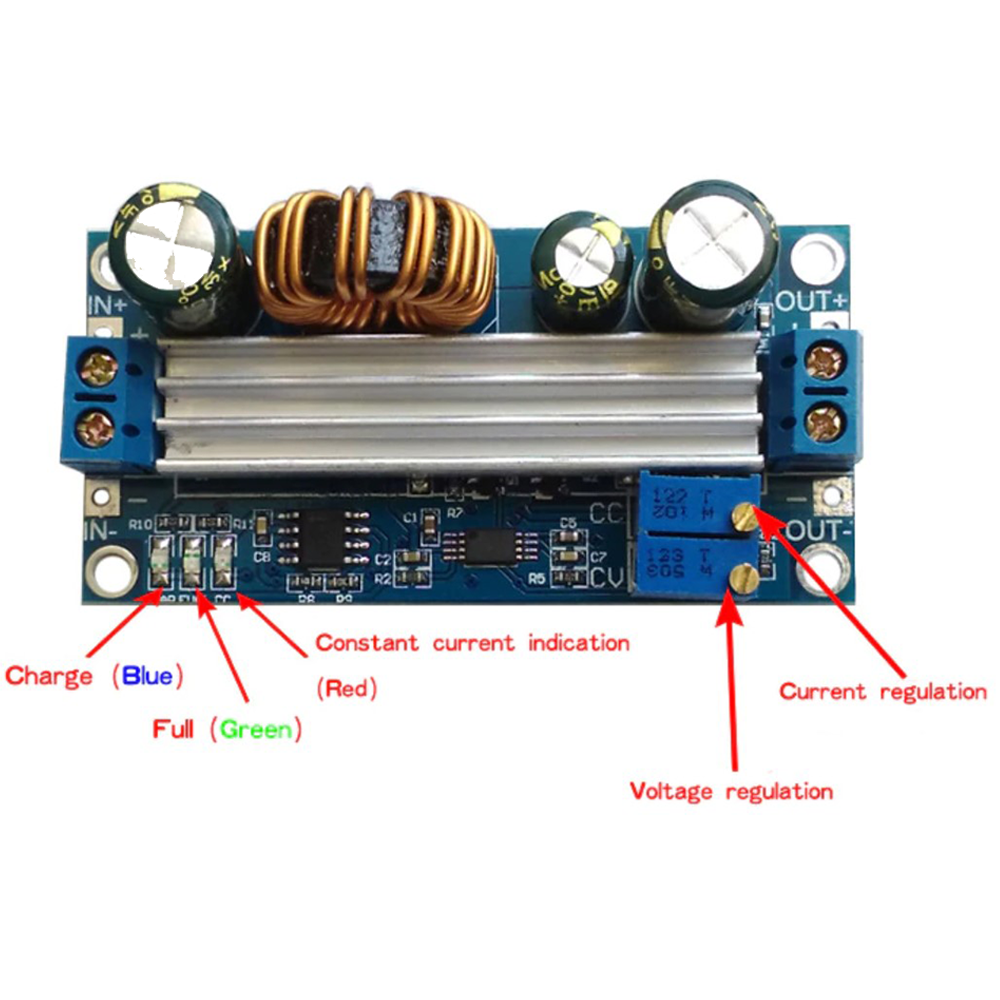

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
