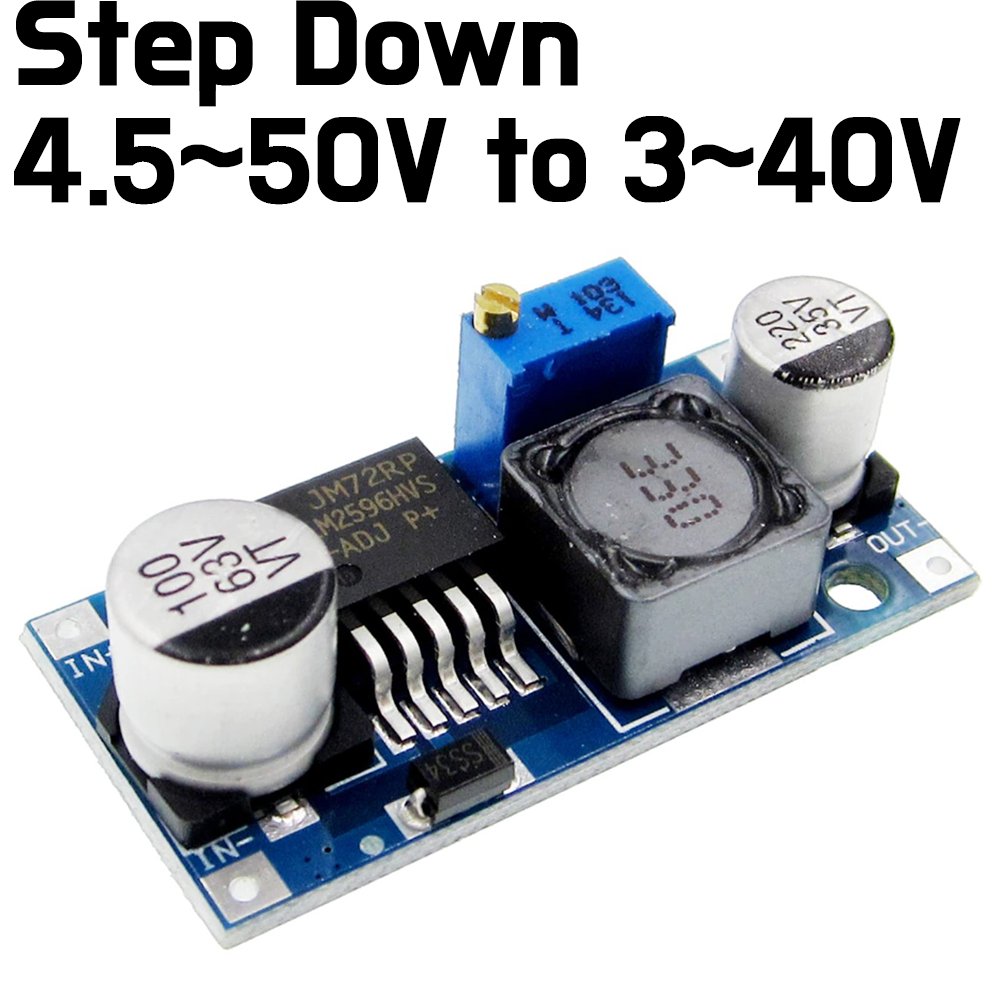

Step Down Buck DC Converter - LM2596HVS

Step Down Buck DC Converter - LM2596HVS

Step Down Buck DC Converter - LM2596HVS

Regular price $7.99
  • Free shipping on all orders over $100
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included
- 1pcs x Step Down Buck DC Converter- LM2596HVS


- Regulator: LM2596HVS
- Input Voltage: 4.5V ~ 50V
- Output Voltage: 3V ~ 40V
- Output Current Max: 3A
- Output Current Rated:2A
- Output Power: 15W(Max)
- Static Power comsumptiion: 6mA
- Conversion efficiency:92%(the highest)
- Output Ripple: < 30mV
- Switching frequency: 150KHz
- Operating Temperature:-45 ° ~ +85 °
- Size: 43mm x 21mm x 14mm (L * W* H)


- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
