Description:

Get a versatile and reliable power supply for your electronic projects with the MB-102 Breadboard Power Supply Module. With dual voltage output, overload and short circuit protection, and a cost-effective design, it is perfect for hobbyist electronics and DIY projects. Buy now and power up your circuits with ease.

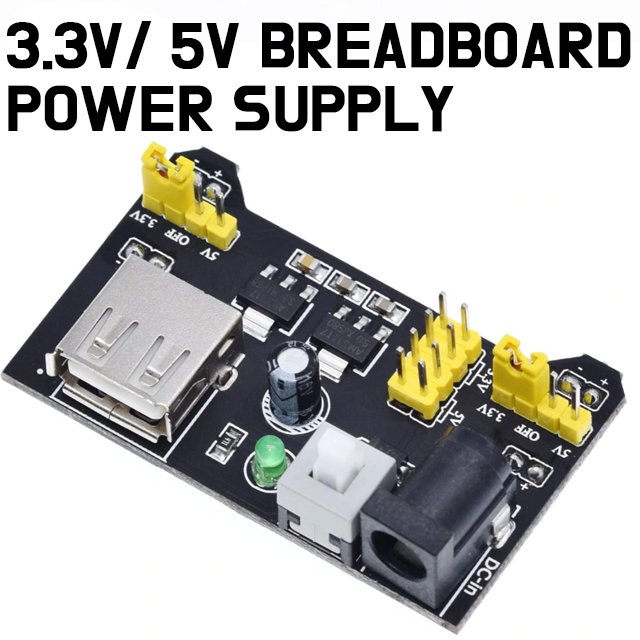

MB-102 Breadboard Power Supply Module

Versatile and Reliable Power Supply with the MB-102 Breadboard Power Supply Module

• Dual Voltage Output: The MB-102 Breadboard Power Supply Module provides both 3.3V and 5V voltage output, making it suitable for a wide range of electronic projects. You can easily switch between the two voltage outputs using the onboard toggle switch.
• Compact Design: The MB-102 Breadboard Power Supply Module has a compact design, making it easy to mount on a breadboard or a chassis. It has a standard breadboard form factor, allowing you to plug it directly into your breadboard and power your circuits.
• Robust and Reliable: The MB-102 Breadboard Power Supply Module is built to last, with high-quality components and a robust design. It can withstand frequent use and provides stable and reliable power to your circuits.

Safe and Convenient Power Supply Solution with the MB-102 Breadboard Power Supply Module

• Overload and Short Circuit Protection: The MB-102 Breadboard Power Supply Module features built-in overload and short circuit protection, ensuring that your circuits are protected from damage in case of a fault. The module automatically shuts down in case of an overload or a short circuit, preventing damage to your components.
• Easy to Use: The MB-102 Breadboard Power Supply Module is easy to use, with clear markings for voltage output and polarity. It requires only basic soldering skills and can be easily integrated into your breadboard circuit.
• Wide Input Voltage Range: The MB-102 Breadboard Power Supply Module has a wide input voltage range, making it suitable for use with a variety of power sources. It can accept input voltages ranging from 6.5V to 12V DC, making it compatible with a wide range of batteries, adapters, and power sources.

Cost-effective and Efficient Power Supply Solution with the MB-102 Breadboard Power Supply Module

• Cost-effective: The MB-102 Breadboard Power Supply Module is a cost-effective solution for your power supply needs. It is affordable and easy to find, making it a great choice for hobbyists and DIY enthusiasts.
• Efficient Power Transfer: The MB-102 Breadboard Power Supply Module is designed to provide efficient power transfer, with low loss and high stability. It ensures that your devices receive the right amount of power, without wasting energy or generating excessive heat.
• Wide Operating Temperature Range: The MB-102 Breadboard Power Supply Module has a wide operating temperature range, making it suitable for use in both indoor and outdoor environments. It can operate in temperatures ranging from -20°C to 60°C, ensuring that it can handle a variety of temperature conditions.

Specification:

- Breadboard power supply module, compatible with 5 V, 3.3 V
- Apply to MB102 breadboard
- Input voltage: 6.5-12 V (DC) or USB power supply
- Output voltage: 3.3V/5V can switch over
- Maximum output current: <700 ma

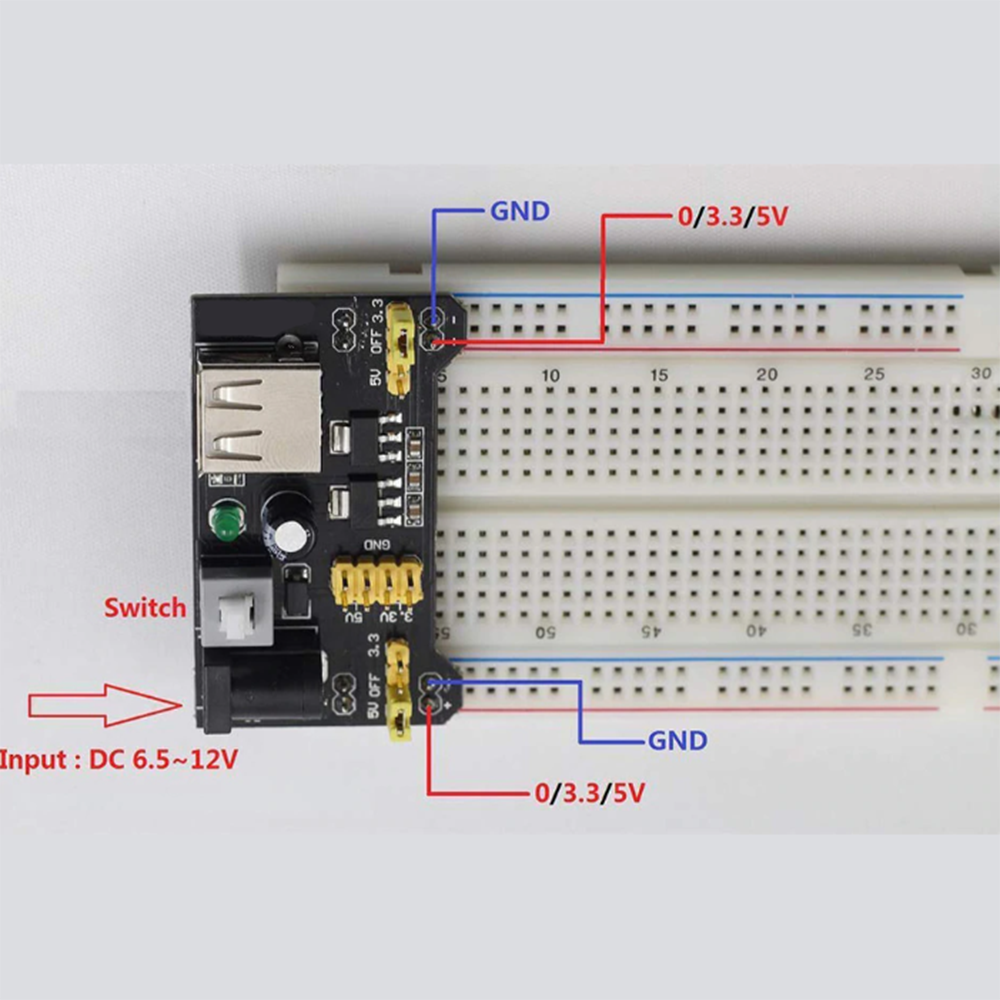

- Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
- Size: 13mm(L) * 53mm(W)

Package Included:

- 1 x Breadboard MB-102 Power Supply Module 3.3V 5V MB102 for Arduino (Breadboard is not included)
