Package Included

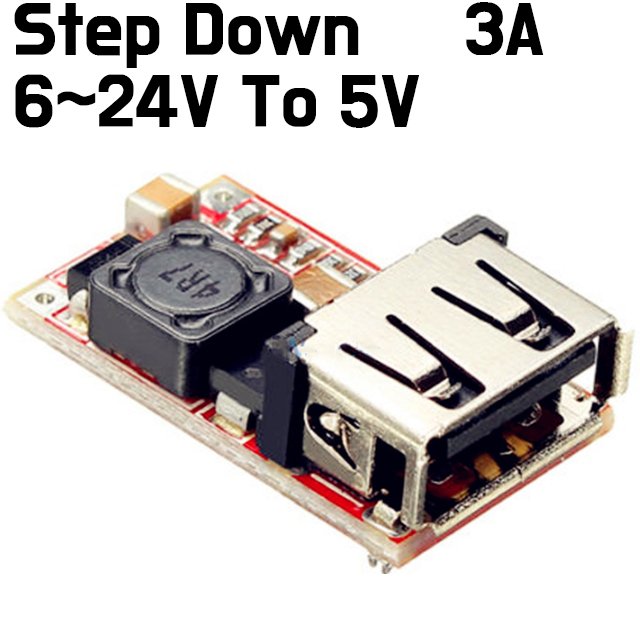

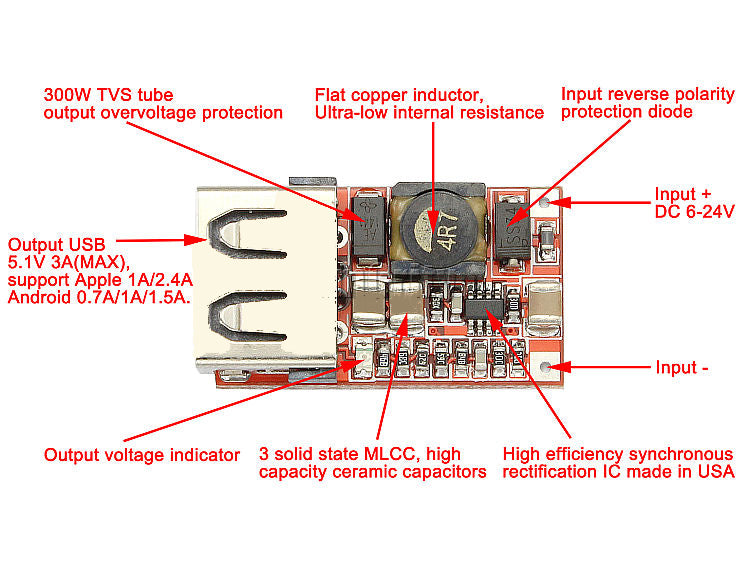

- 1pcs x 6-24V To 5V 3A USB DC step down Buck Converter

Description

- Input voltage: DC 6-24V
- Output voltage: 5-5.2V
- Output current: 3A MAX (please enhance heat dissipation when full load using)
- Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
- Switch frequency: 500KHz
- Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
- Output indicator: Output voltage indicator is red
- Operating temperature: Industrial grade (-40 ° to + 85 °)
- Output overvoltage protection (Input 1.5A fuse, output 5V have 300W TVS tube clamp protection)
- Full load temperature: 30 °
- Output short circuit protection
- Input reverse polarity protection
- Output : USB

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
