Package Included

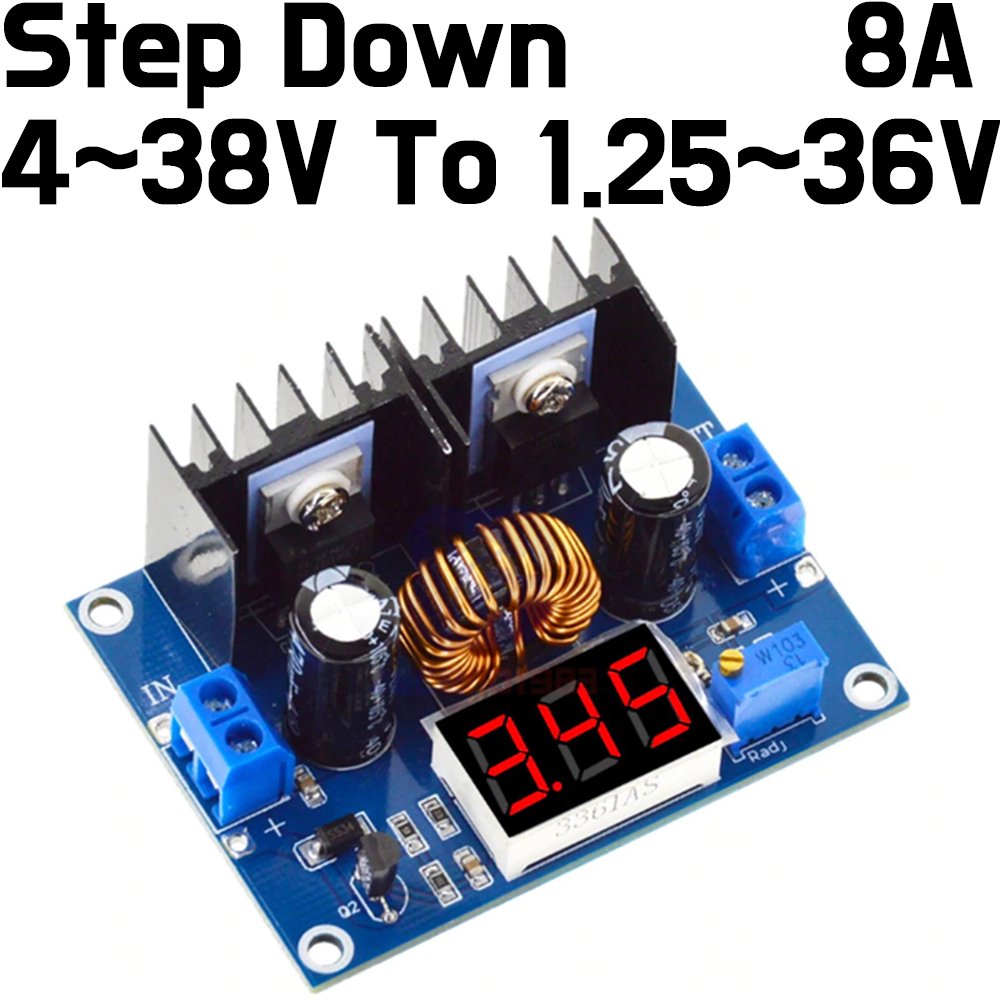

- 1 x XL4016 8A 200W 3 Bit Digital LED Voltmeter PWM Adjustable Step-Down Buck Convert

Description:

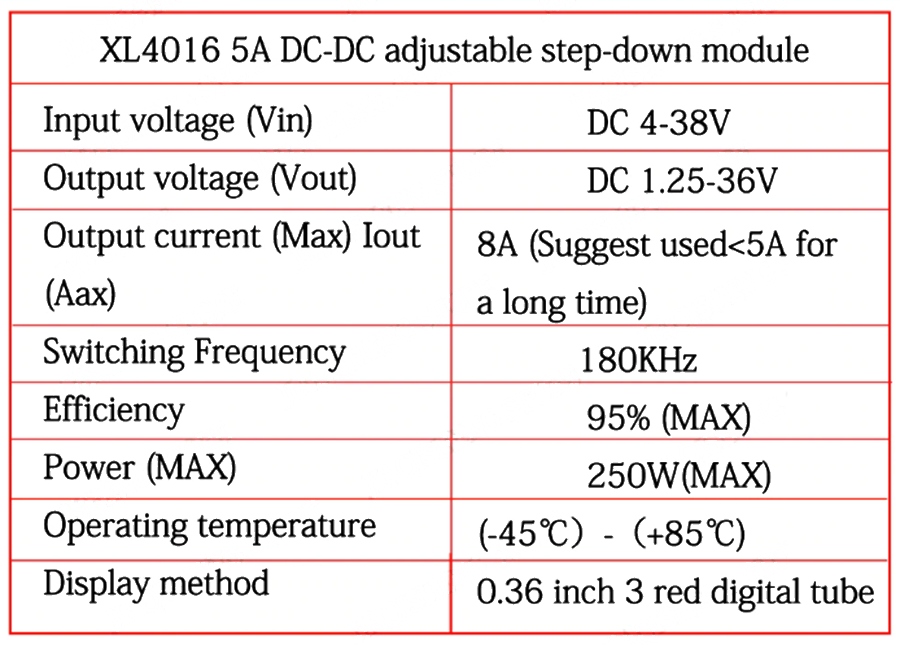

1. Type: XH-M404 Regulator

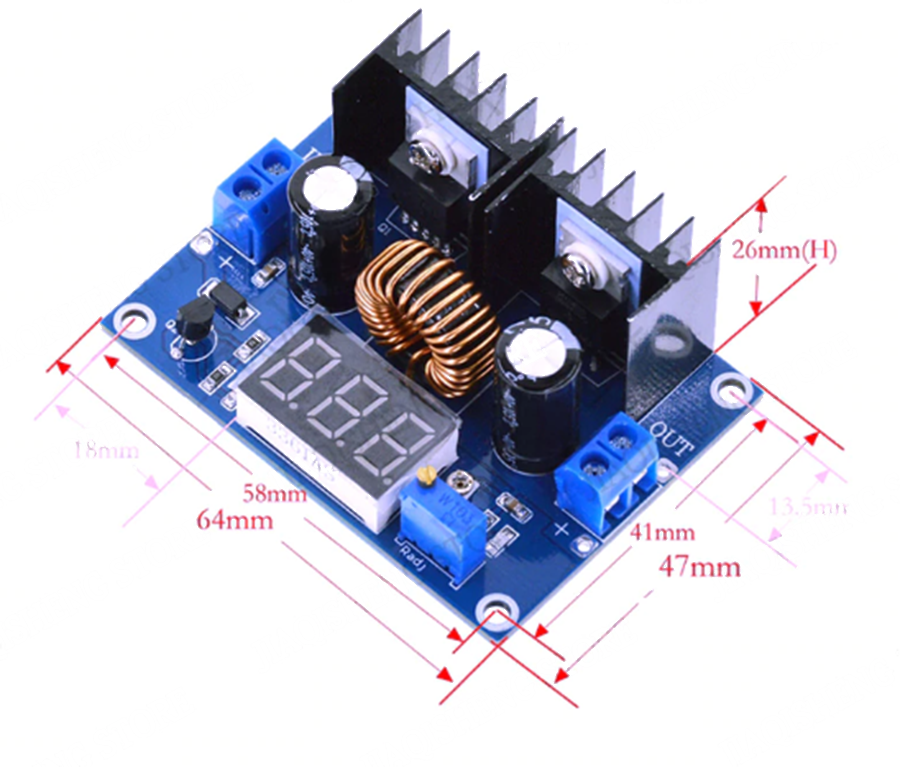

2. Size: 64mm x 47mm (LxW)
3. Regulator mode: PWM modulation
4. Input voltage: DC4-38V
5. Output voltage: DC1.25-36V
6. Maximum current: 8A (long time recommended 5A)
7. Maximum power: 200W
8. Conversion efficiency: 95%
9. Switching frequency: 180KHz

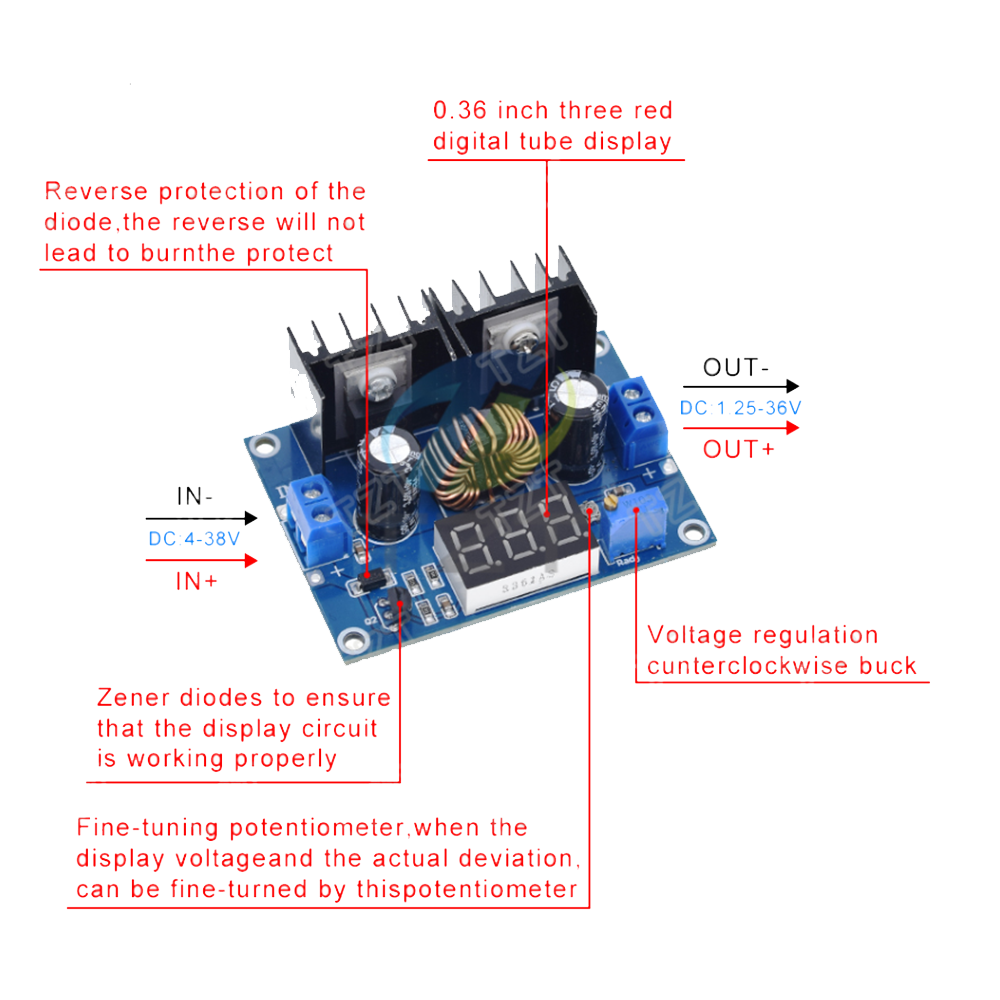

10. Other functions: short circuit protection, input reverse protection, over-temperature protection (over-temperature cut off automatically)
11.Display method: 0.36 inch 3 red digital tube

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
