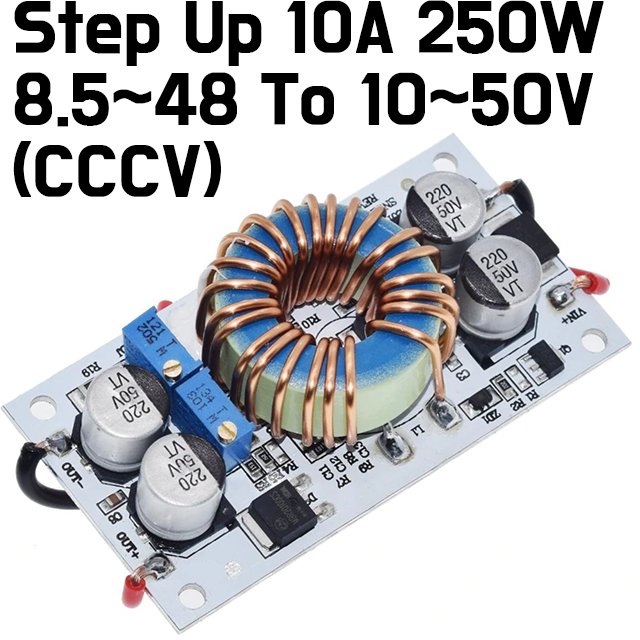

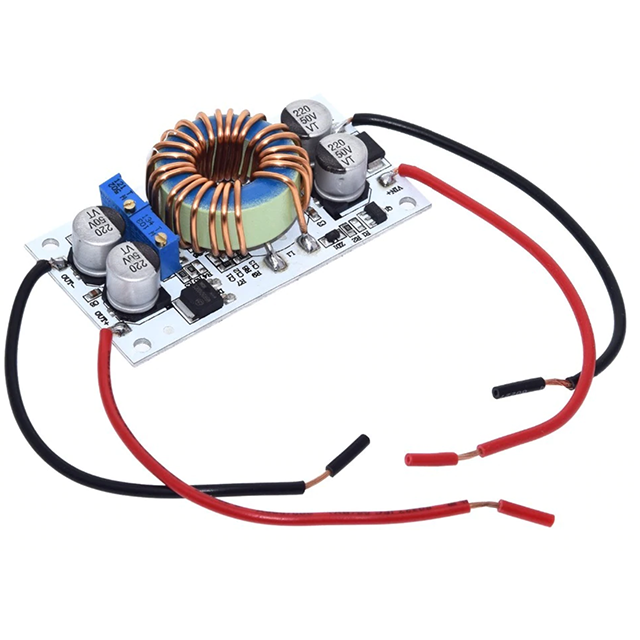

- 1 x 250W 10A Step Up constant current constant voltage 8.5V-48V To 10-50V
- Input voltage: DC8.5V-48V
- Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
- Output voltage: 10-50V continuously adjustable
- Output current: 10A MAX More than 6A, please strengthen the heat dissipation
- Constant range: 0.2-8A
- Temperature: -40 to + 85 degrees (If temperature is too high, please enhance heat dissipation)
- Conversion efficiency: up to 96%
- Overcurrent protection: Yes
- Input reverse polarity protection: Yes,
- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

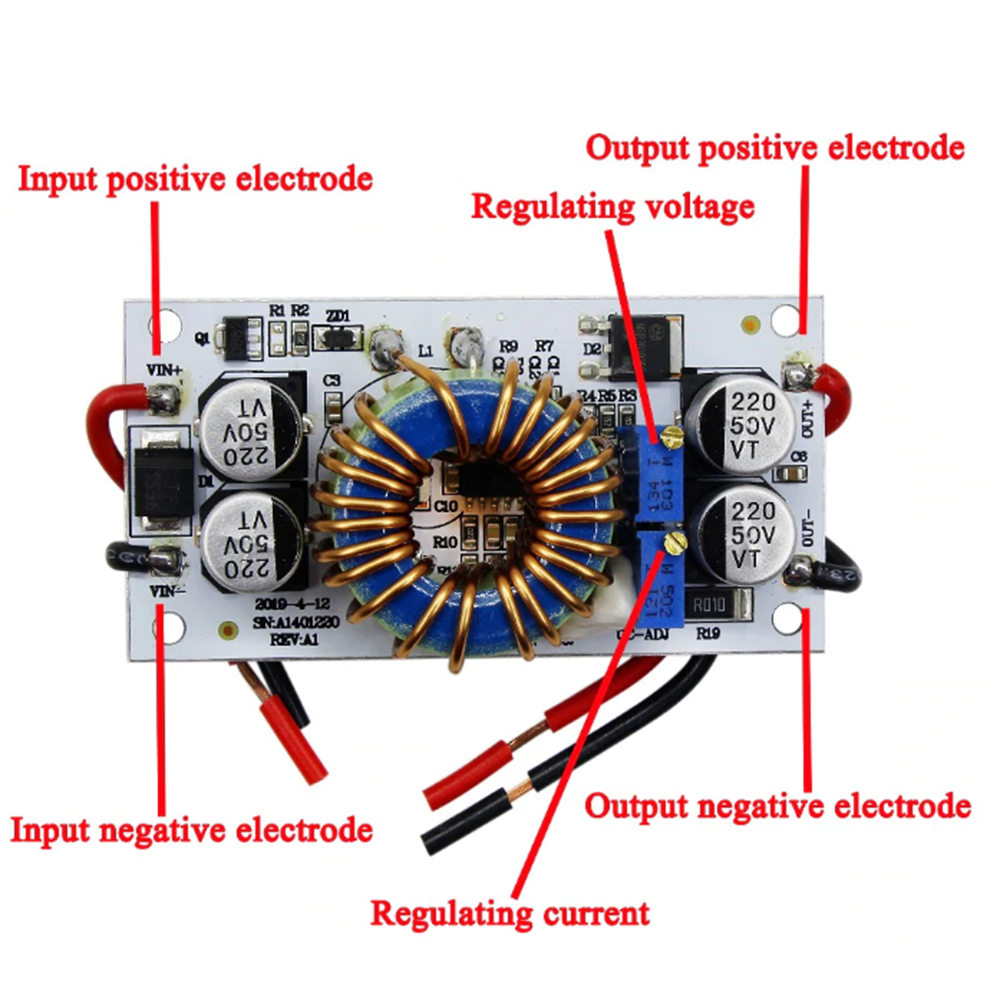

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.
CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
