Package Included

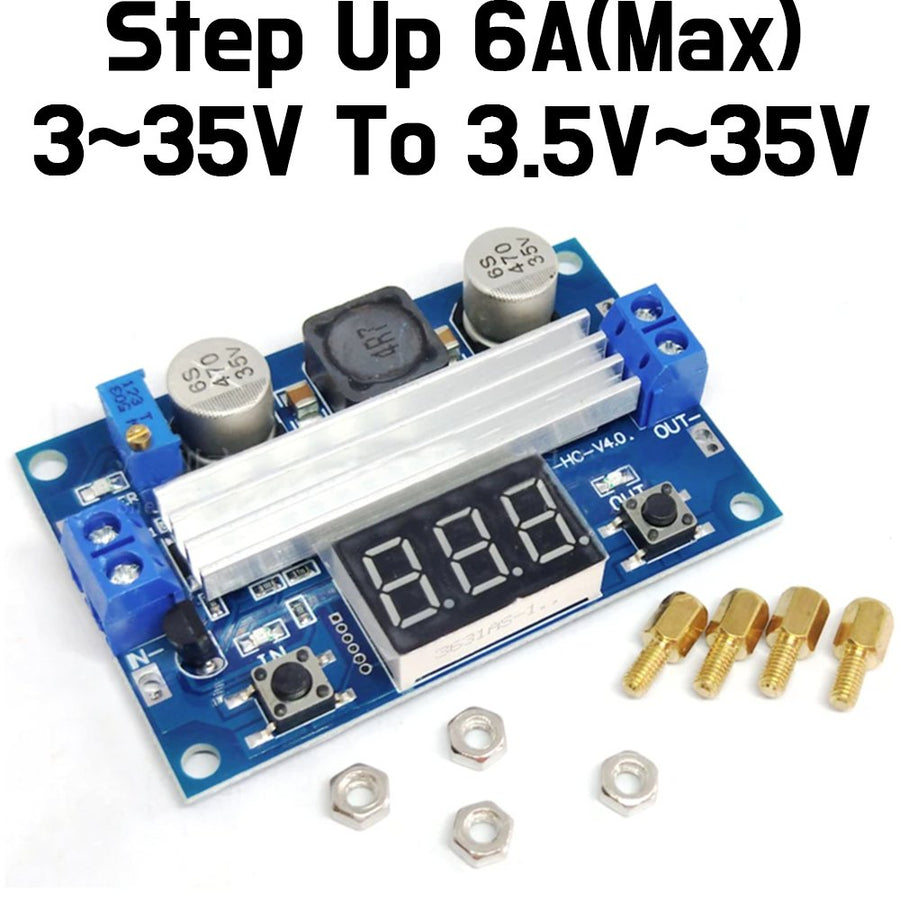

- 1pcs x 3-35V To 3.5-35V 75W DC-DC LTC1871 Digital Boost Step Up

Description:

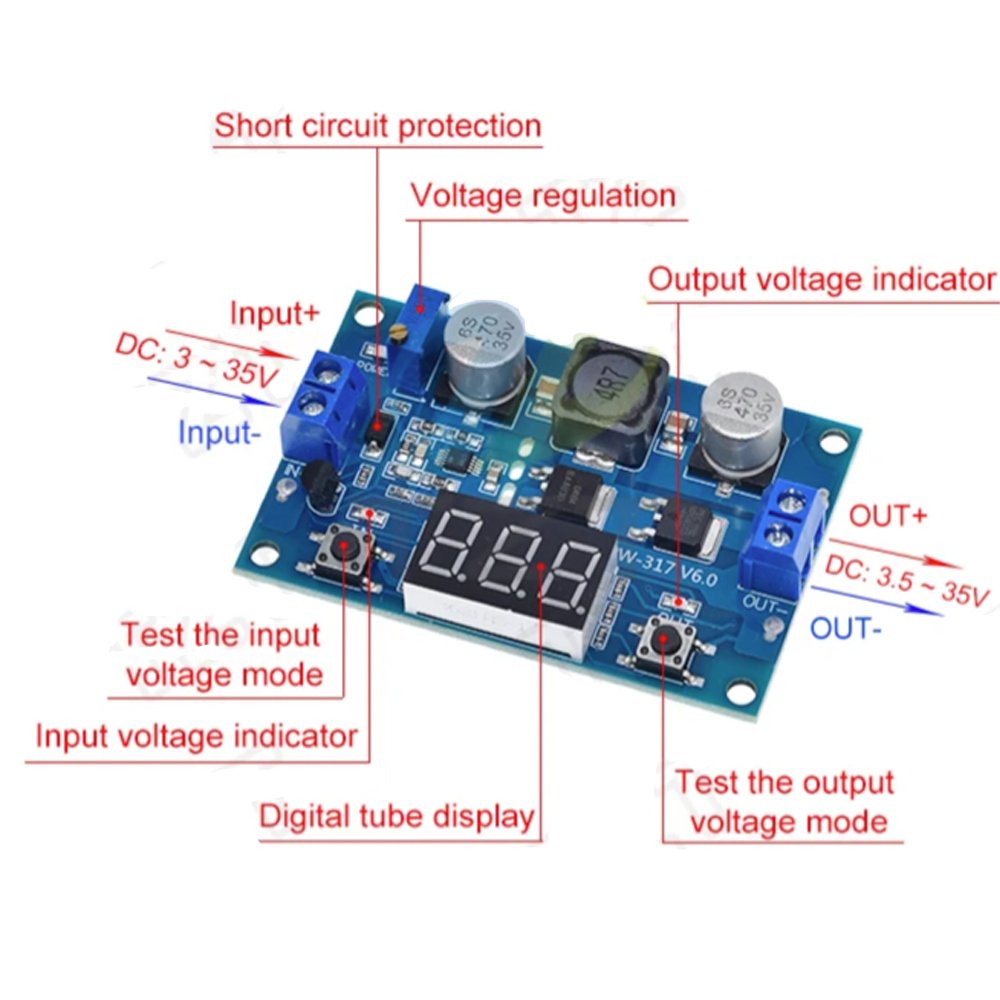

- Input voltage range: 3~35VDC (the input voltage is less than 5V, voltmeter failure)
- Input current: 9A (max)
- Output voltage range: 3.5~35VDC (please to ensure that output voltage above on input voltage)
- Output current: 6A max)
- Output power: 75W
- Conversion efficiency: 96.4% (max)
- Voltmeter range: 5 to 40V, error±0.1V
- Short circuit protection: yes (limit current 14A)
(Note: connected to high-power load, just switched on the impact of current general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).
- Input reverse polarity protection: None

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

NOTE: The trimpot on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, etc., and cannot be used in dangerous places such as coal mine oil depots.
