Step Up Boost DC Converter

Step Up Boost DC Converter

Step Up Boost DC Converter

Regular price $19.99
  • Free shipping on all orders over $100
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included

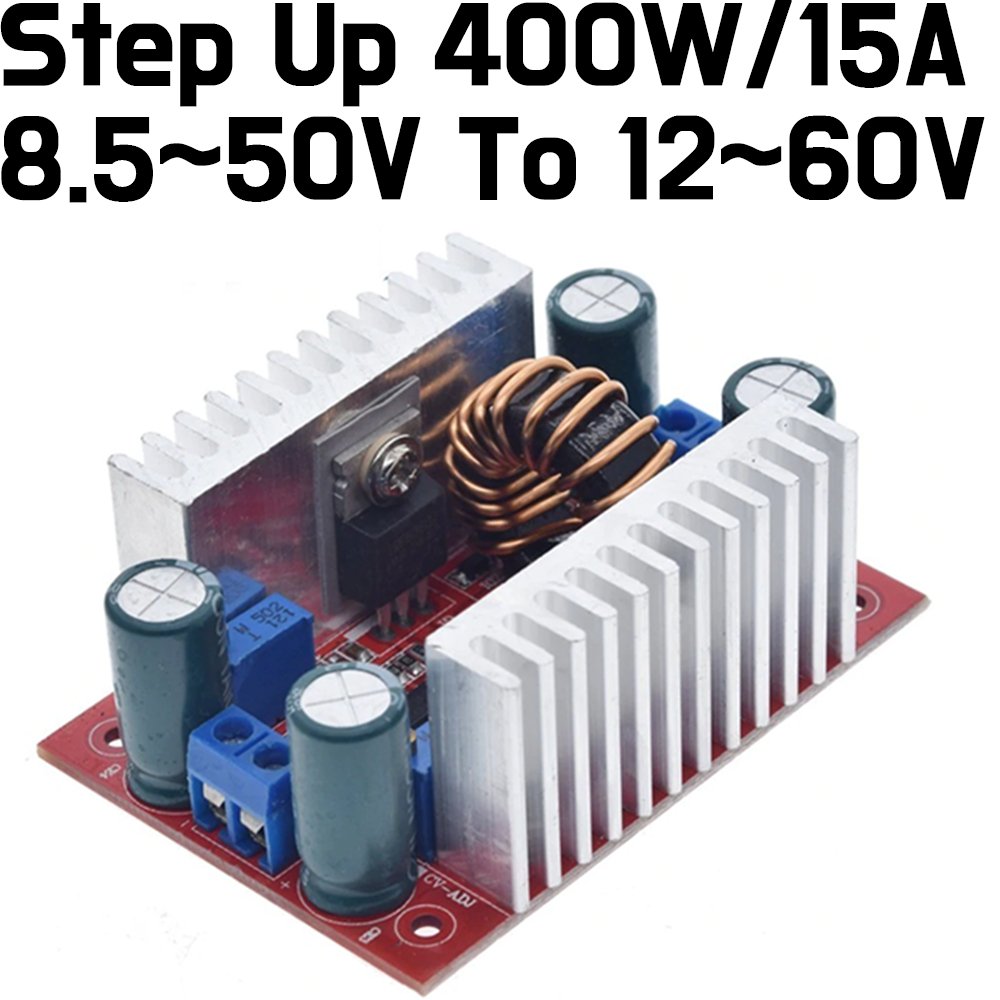

- 1pcs x 400W 15A Step Up Boost Converter Constant Current Power Supply 8.5-50V to 12-60V


- Module name :400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC 8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Output voltage: 12-60V continuously adjustable
- Constant range: 0.2-12A
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no

- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.

NOTE: The trimpot(potentiometer) on this module may need several turns of adjustment before you start to see any change in the output voltage.

CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
