Package Included

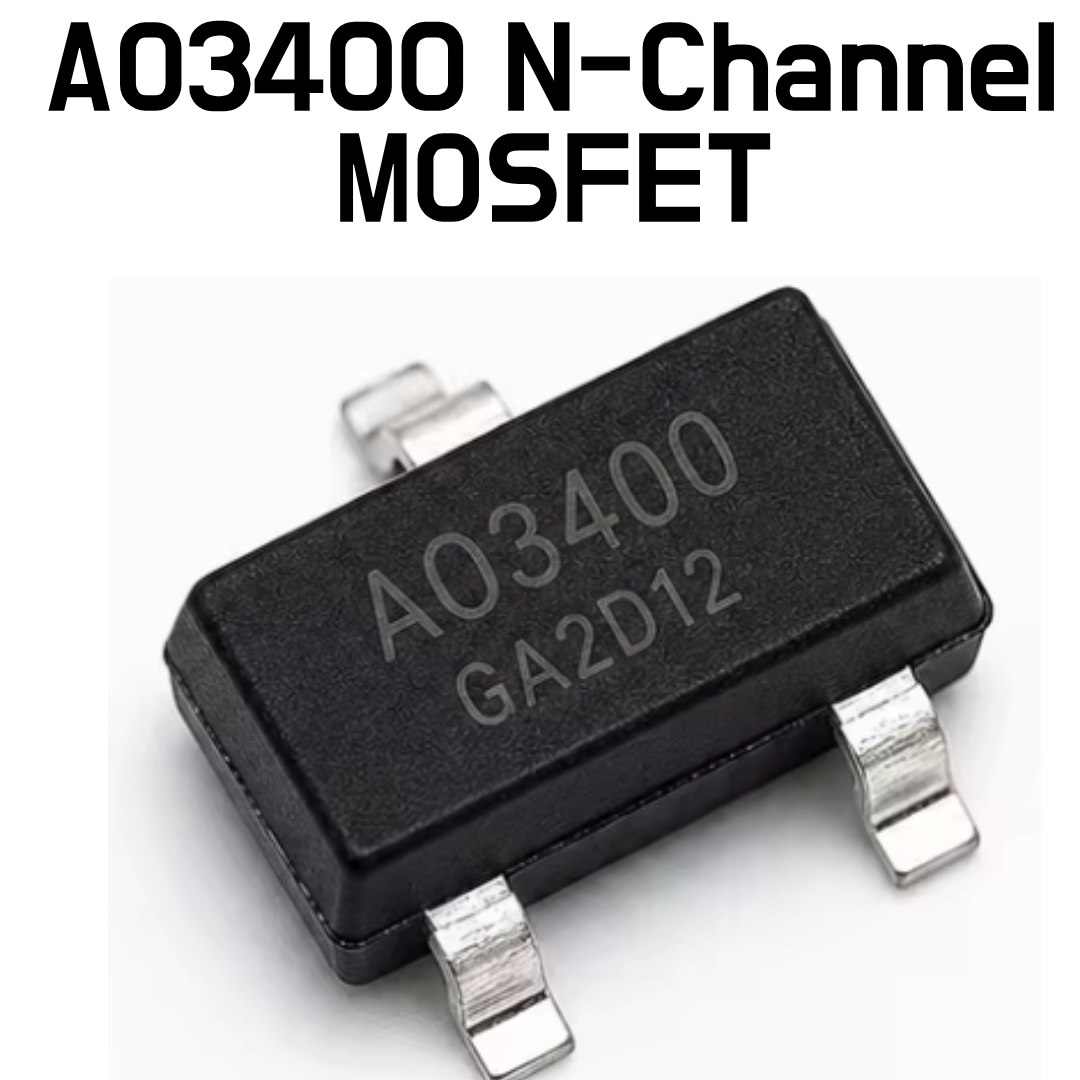

- 1 x AO3400 N-Channel MOSFET

Features

• N-Channel Enhancement Mode MOSFET
• Low RDS(ON) for reduced power loss
• Suitable for 3.3V and 5V logic-level switching
• Compact SOT-23 package
• Suitable for load switching and PWM applications

Specifications

• Type: N-Channel MOSFET
• Drain-Source Voltage (VDS): 30V
• Continuous Drain Current (ID): 5.8A @ 25°C
• Gate-Source Voltage (VGS): ±12V
• RDS(ON):
  • ≤ 28mΩ @ VGS = 10V
  • ≤ 33mΩ @ VGS = 4.5V
  • ≤ 52mΩ @ VGS = 2.5V
• Gate Threshold Voltage: 0.65–1.45V
• Power Dissipation: Approx. 1.4W
• Operating Temperature: -55°C to +150°C
• Package: SOT-23
• Pin Configuration: G = Gate, S = Source, D = Drain
