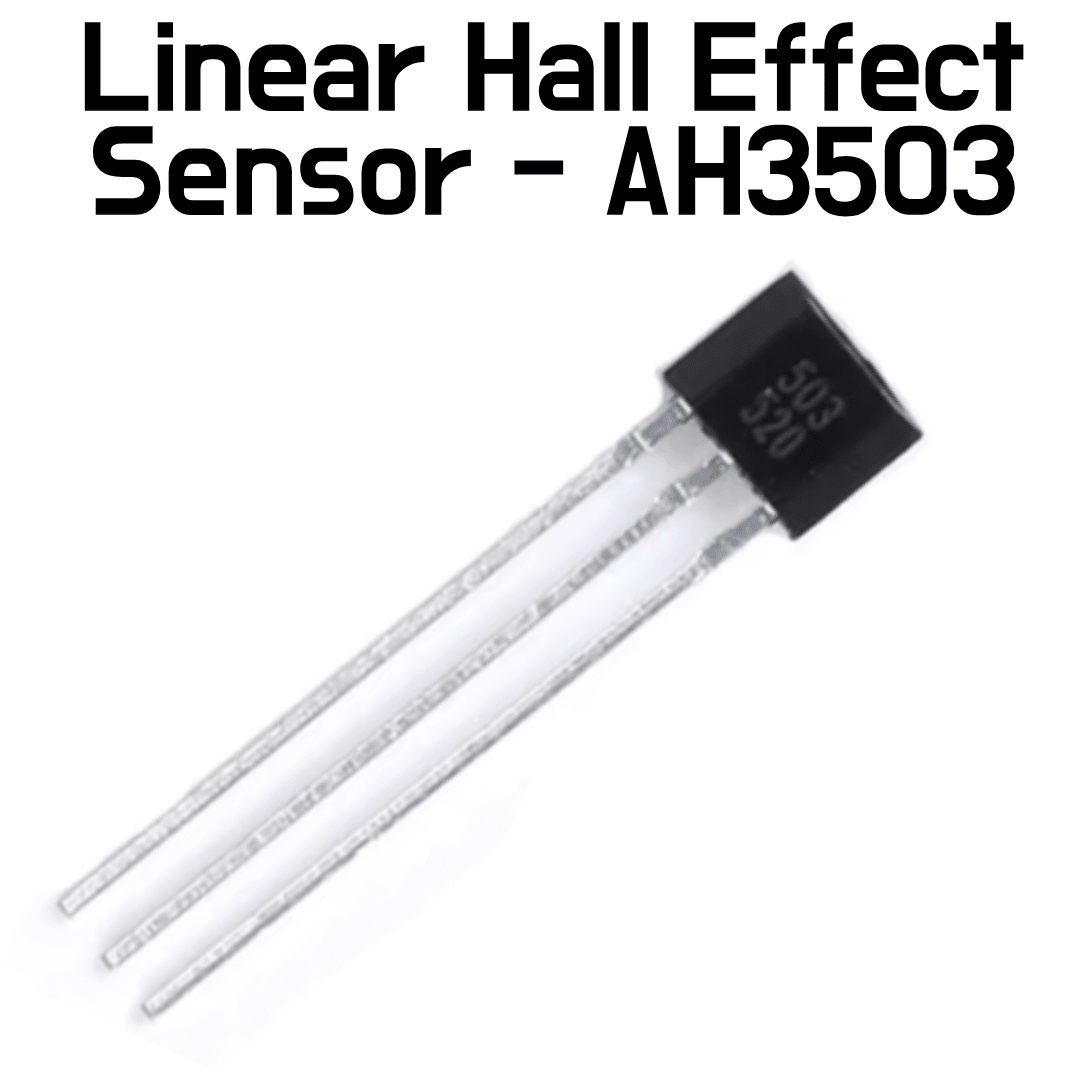

AH3503 — Linear Hall Effect Sensor

SKU: SP0601
AH3503 — Linear Hall Effect Sensor - ePartners

AH3503 — Linear Hall Effect Sensor

SKU: SP0601
Default
Regular price $0.79
/
  • Free shipping on all orders over $100
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way

Add $95.01 more for free shipping

Tax included. Shipping calculated at checkout.

You'll also need

Package Included

- 1 x AH3503 — Linear Hall Effect Sensor


Description

Part Number: AH3503
Type: Linear / Analog Hall Effect Sensor
Package: TO-92 / SOT-23
Operating Voltage: 3.5–6.5 V
Supply Current: Max. 6 mA
Output Type: Analog Voltage
Rated Output Current: 6 mA
Sensitivity: 15.25 mV/mT
Linear Magnetic Range: -80 to +80 mT
Operating Temperature: -40°C to +85°C
Function: Magnetic field measurement
Output: Magnetic field에 따라 연속적으로 변화
Applications: Magnetic field measurement, position sensing, proximity sensing, current sensing
