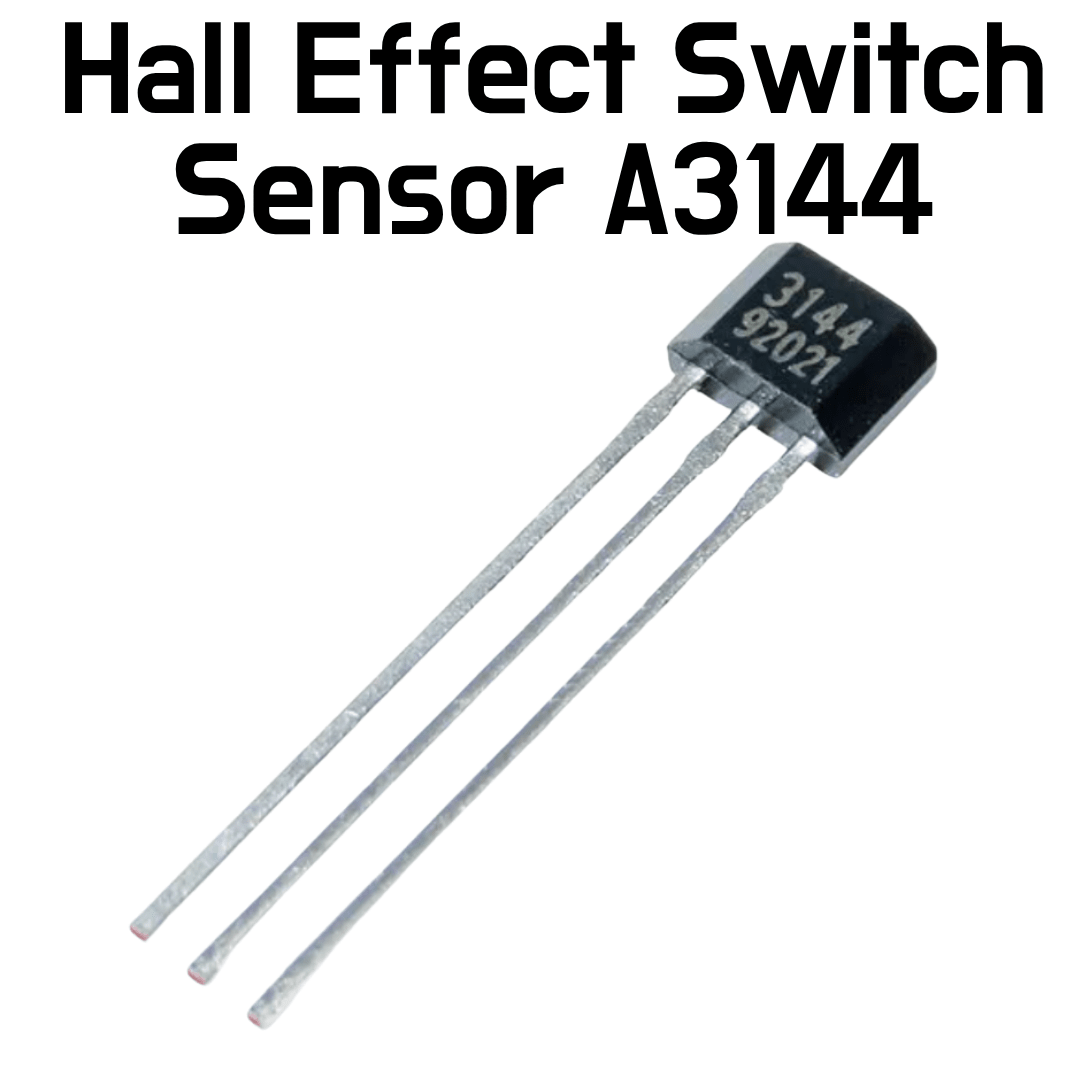

A3144 Hall Effect Switch Sensor

SKU: SP0502
A3144 Hall Effect Switch Sensor - ePartners

A3144 Hall Effect Switch Sensor

SKU: SP0502
Default
Regular price $0.79
/
  • Free shipping on all orders over $100
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way

Add $80.01 more for free shipping

Tax included. Shipping calculated at checkout.

You'll also need

Package Included

- 1 x  A3144 Hall Effect Switch Sensor


Description

## Electrical
- Supply voltage: typically 4.5 V to 24 V
- Supply current: around 3.5 mA at 5 V
- Output: open‑collector NPN, sinking up to about 20–25 mA

## Magnetic behavior
- Type: unipolar, non‑latching Hall-effect switch.


## Package / pinout
- Package: 3‑pin TO‑92 / SIP3.
- Typical pins (flat face toward you): VCC – GND – OUT (check datasheet to confirm).
