Package Included

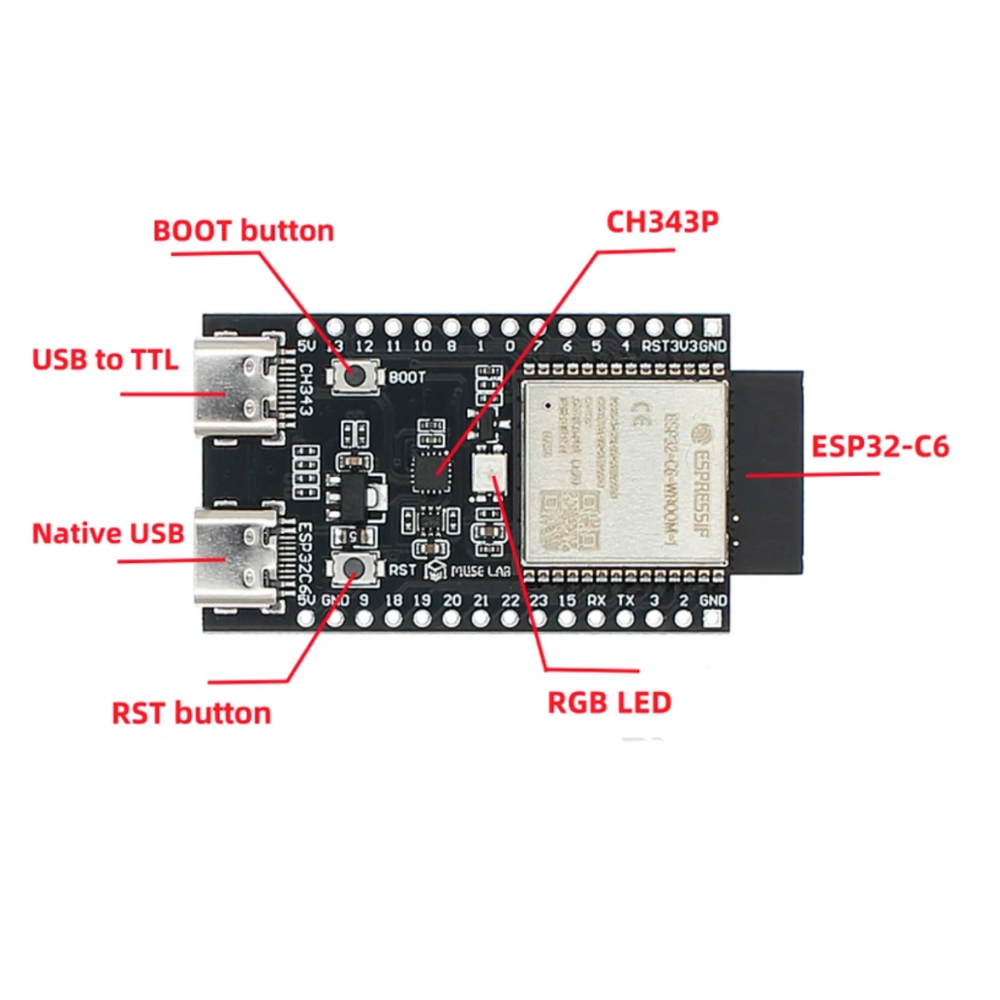

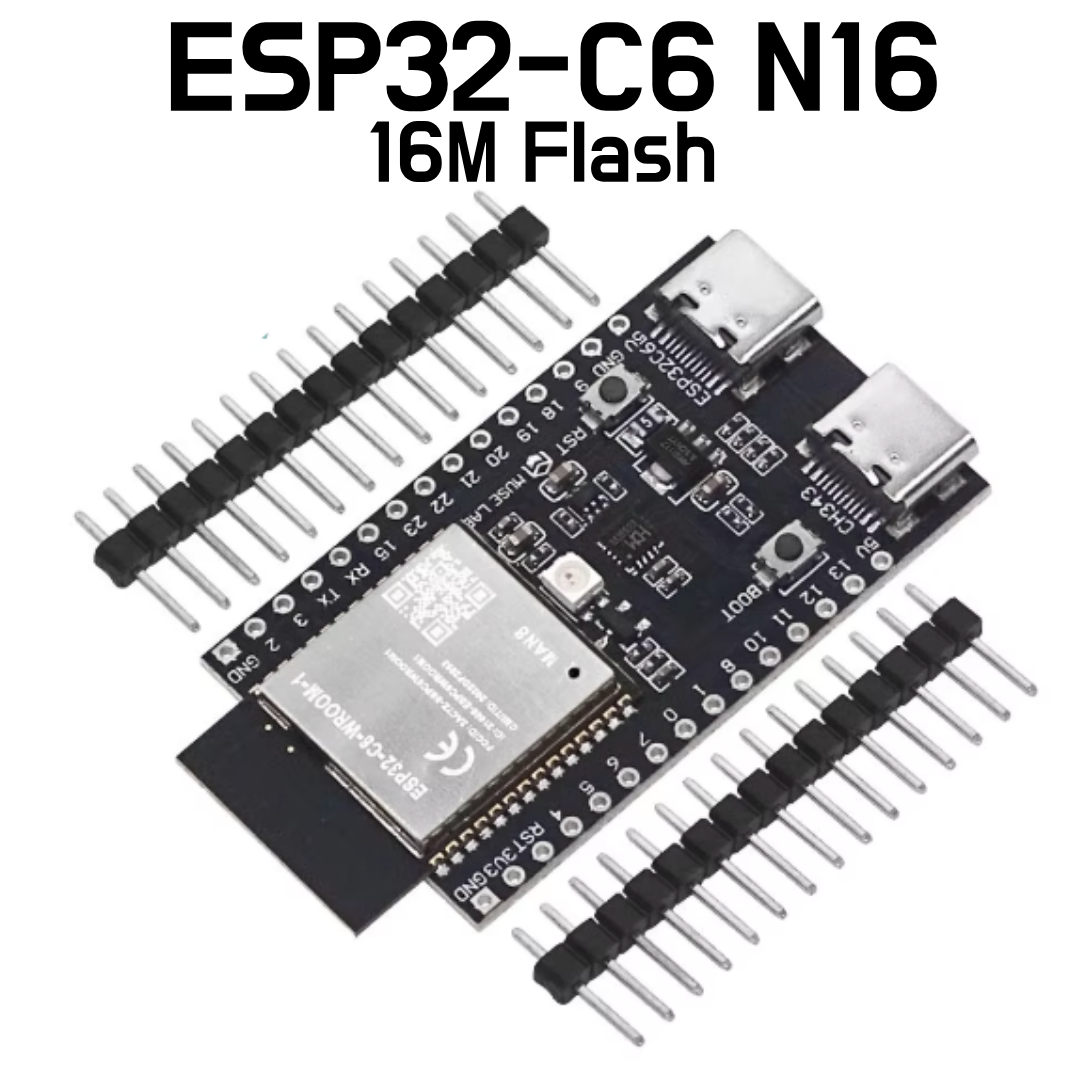

• 1 x ESP32-S6 N16 Development Board

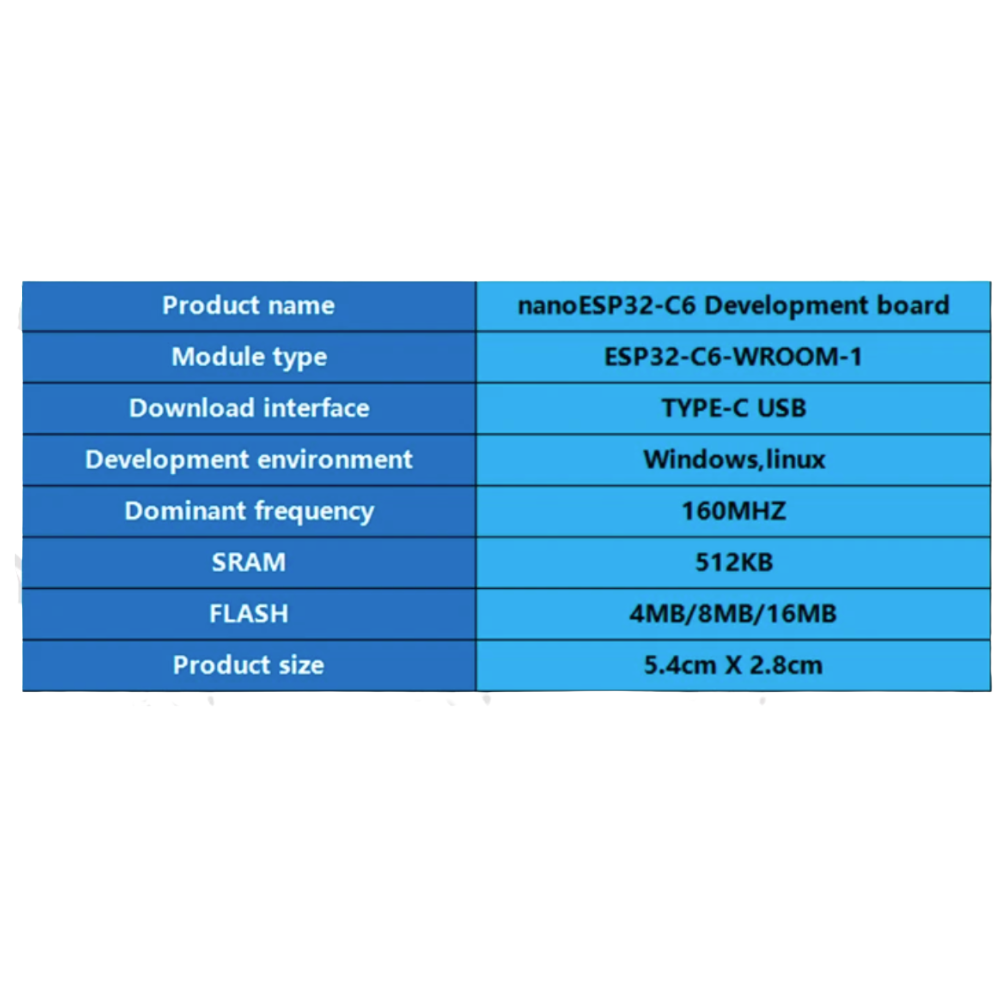

ESP32-S3-N16R8 Specifications:

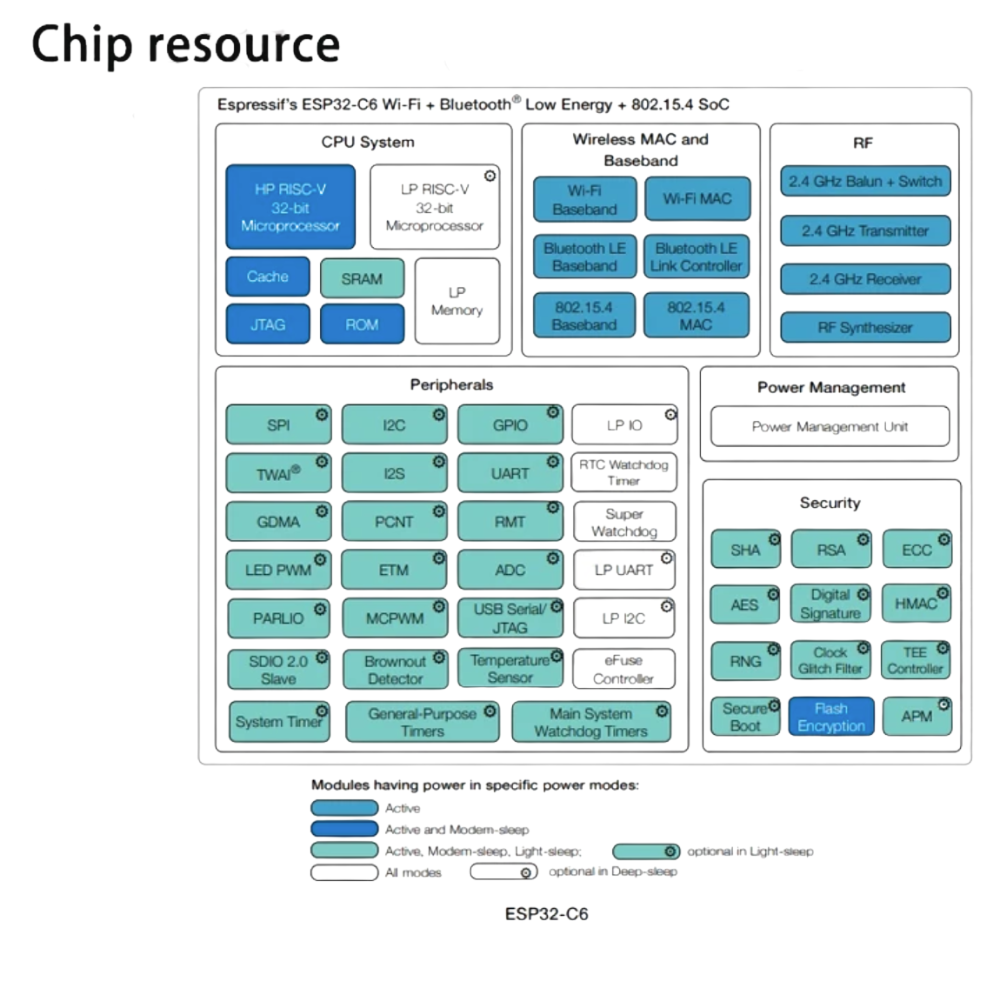

• MCU: ESP32-C6 (Espressif Systems)
• CPU: 32-bit RISC-V single-core, up to 160 MHz
• Flash Memory: 16 MB external SPI flash (N16 version)
• SRAM: 512 KB
• ROM: 320 KB
• Wi-Fi: IEEE 802.11 b/g/n/ax (Wi-Fi 6, 2.4 GHz band)
• Bluetooth: Bluetooth 5 Low Energy (BLE)
• IEEE 802.15.4: Supported (Thread, Zigbee, Matter)
• GPIO: Up to ~30 GPIOs (depends on module design)
• ADC: 12-bit SAR ADC, up to 7 channels
• UART: 2 UART interfaces
• SPI: 2 SPI controllers
• I²C: 1 I²C interface
• I²S: Supported
• PWM: LEDC PWM controller
• USB: USB Serial/JTAG (no USB OTG host/device)
• Operating Voltage: 3.0V – 3.6V (typically 3.3V)
• Low Power Modes: Deep sleep supported
• Security Features: Secure Boot, Flash Encryption, AES, SHA, RSA, ECC hardware acceleration
• Primary Use Cases: IoT, Matter, Thread, Zigbee, BLE + Wi-Fi 6 smart home and edge devices

Video Reference
